ONV33168FM-4GF

OVERVIEW

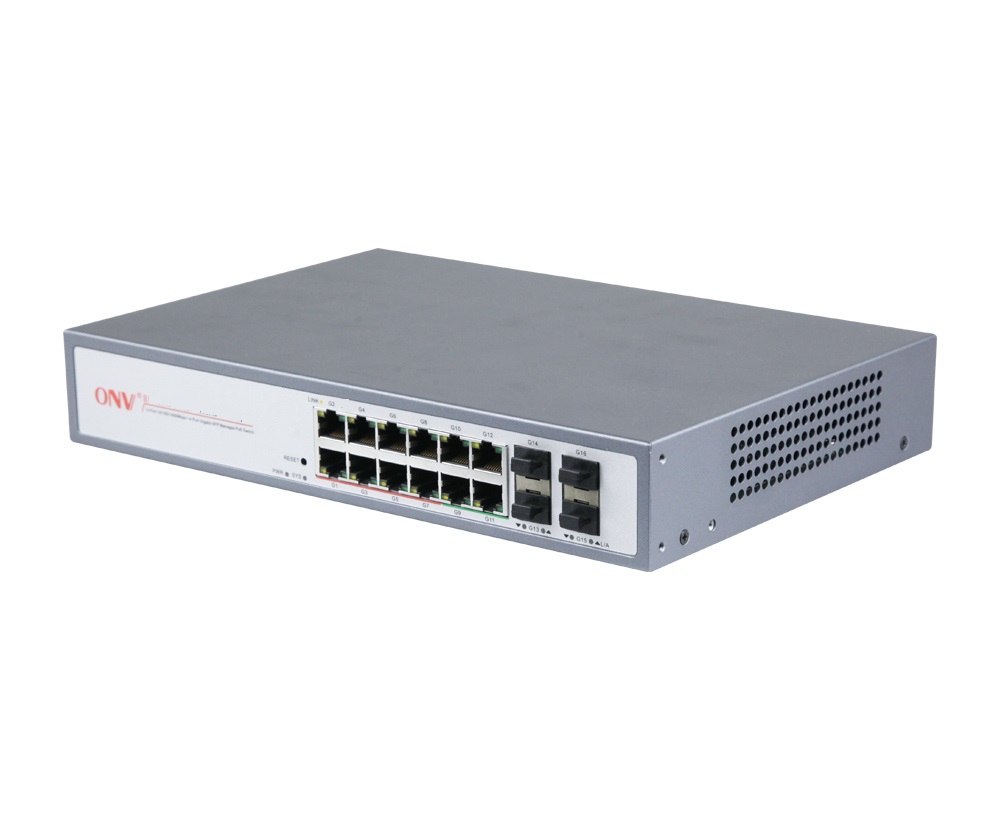

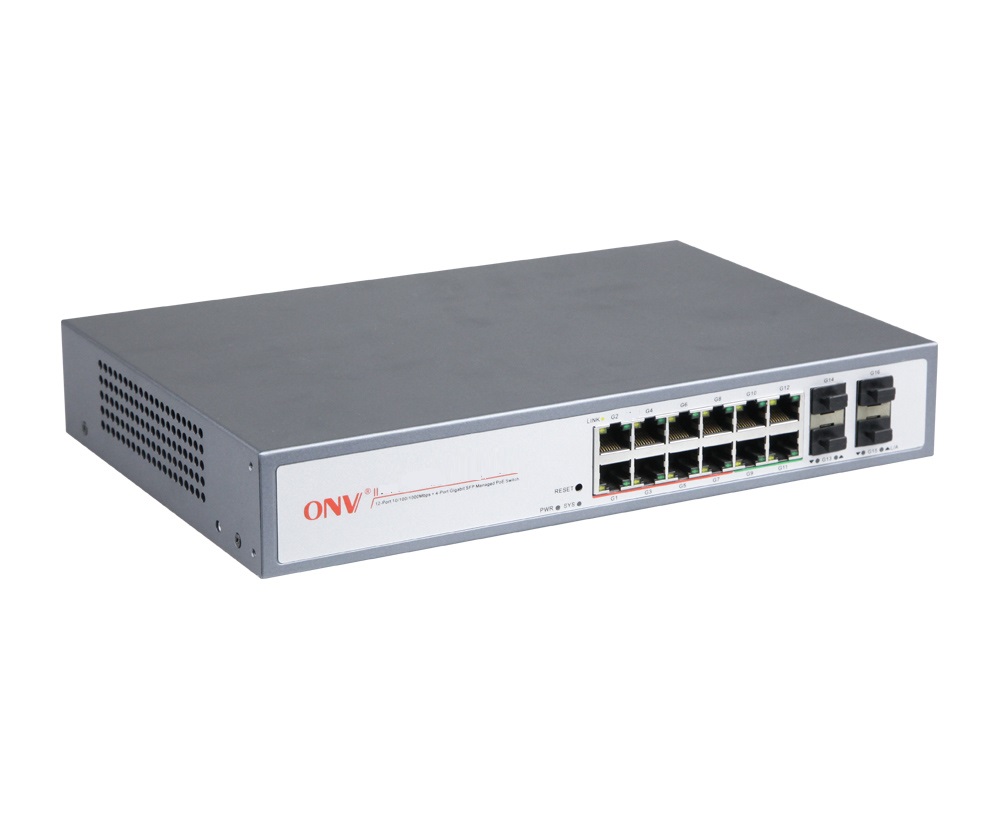

The ONV33168FM-4GF series is a full gigabit managed Ethernet fiber switch independently developed by ONV. It has 12*10/100/1000Base-T RJ45 ports and 4*100/1000Base-X SFP fiber slot ports. Each port can support wire-speed forwarding.

The ONV33168FM-4GF has L2+ full network management function, supports IPV4/IPV6 management, static route full line rate forwarding,complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS(<20ms) to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as port traffic control, VLAN division, and SNMP through the Web network management mode. It satisfies high-density network application environment and is suitable for medium, large-scale scenes such as hotel, campus, park, shopping mall, scenic spot, hospital, bank to form an economical, efficient and reliable communication network.

FEATURE

Full Gigabit access, SFP fiber port  uplink

◇ All series supports “Gigabit Ethernet port and Gigabit SFP fiber slot port “combination, which enables users to flexibly build networking to meet the needs of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Strong business processing capability

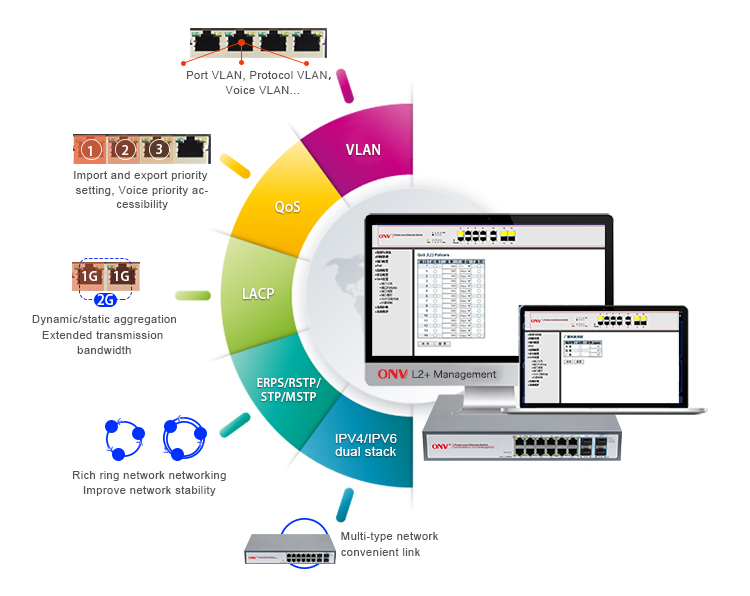

◇ IEEE802.1Q VLAN, flexible VLAN division,Voice VLAN and QinQ configuration.

◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.

◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

◇ IGMP V1/V2 and IGMP Snooping.

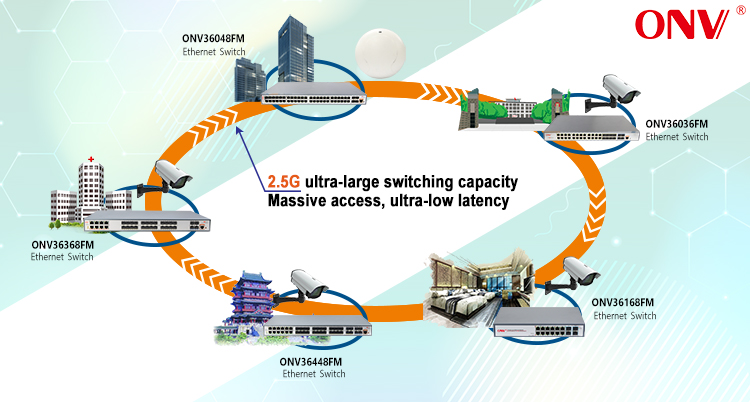

◇ ERPS/STP/RSTP/MSTP.

◇ Static and dynamic aggregation.

Security

◇ 802.1X authentication.

◇ Port isolation,Storm control.

◇ IP-MAC-VLAN-Port binding.

Stable and reliable

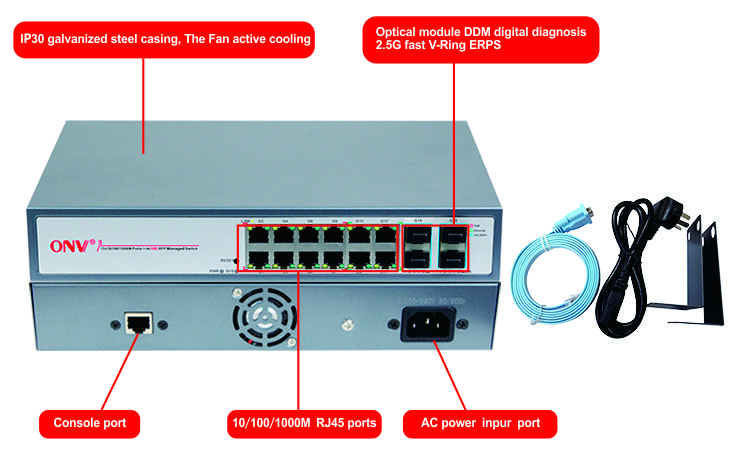

◇ Low power consumption, galvanized steel casing, The Fan active cooling.

◇ Self-developed power supply, high redundancy design, providing a long term and stable power output.

◇ CCC,CE, FCC, RoHS.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link.

Easy operation and maintenance management

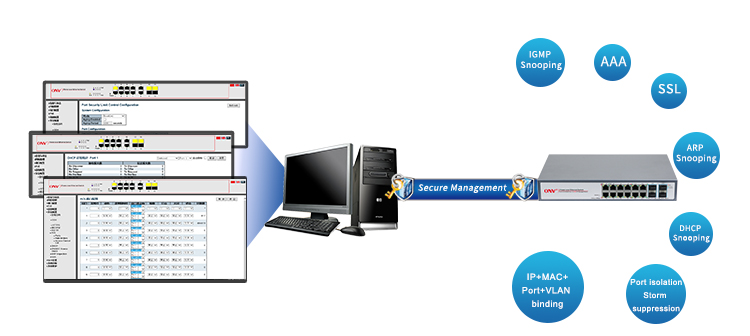

◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

◇ HTTPS, SSLV3, and SSHV1/V2.

◇ RMON, system log, LLDP, and port traffic statistics.

◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.

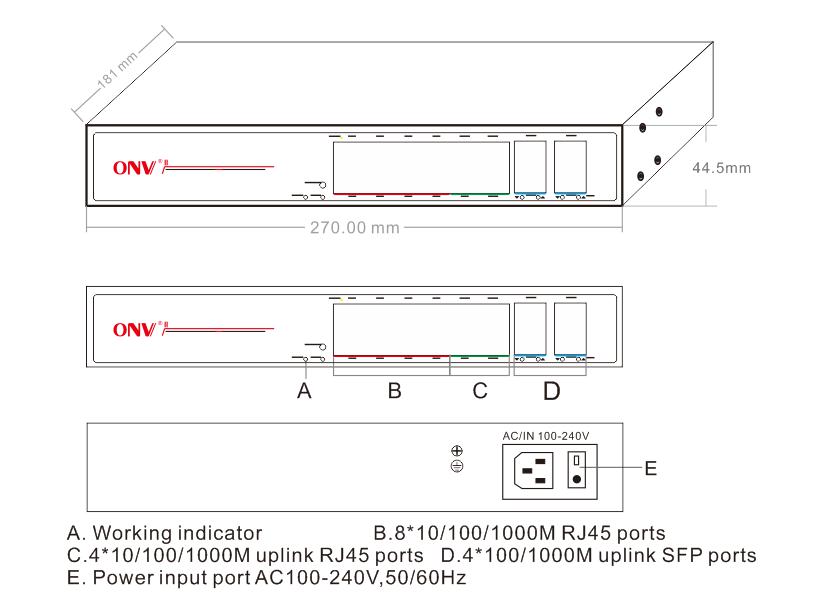

DIMENSION
