ONV33008F

OVERVIEW

The ONV33008F is a full gigabit Ethernet fiber switch independently developed by ONV. It is a network environment specially designed for hotels, banks, campuses, attractions, commercial supermarkets, factories, parks, governments and SMB small and medium enterprises that require high-speed forwarding. And designed a high performance, easy to maintain Ethernet switch. It has 2*10/100/1000M RJ45 ports and 8*1000M SFP fiber ports. Each port can support wire-speed forwarding. It is not affected by the transmission medium and realizes a convenient connection and expansion of the network. 2M large-capacity packet forwarding buffer, ensuring timely transmission of large files and stable video streaming, stable 7*24 hours without dropping, effectively solving problems such as video stuttering and picture loss in high-definition monitoring environments. The ONV33008F switch adopts a high-strength all-steel housing, which is simple and stylish, exquisite and beautiful.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

Gigait SFP fiber port access, gigabit RJ45 ports uplink

◇ All series support “10/100/1000M Ethernet port and Gigabit SFP fiber port”combination, which enables users to flexibly build networking to meet the needs of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Stable and reliable, easy to use

◇ CCC,CE, FCC, RoHS.

◇ Plug and play, no setup, simple and convenient to use.

◇ Low power consumption, galvanized steel metal casing.

◇ Self-developed power supply, high redundancy design, providing a long term and stable power output.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link.

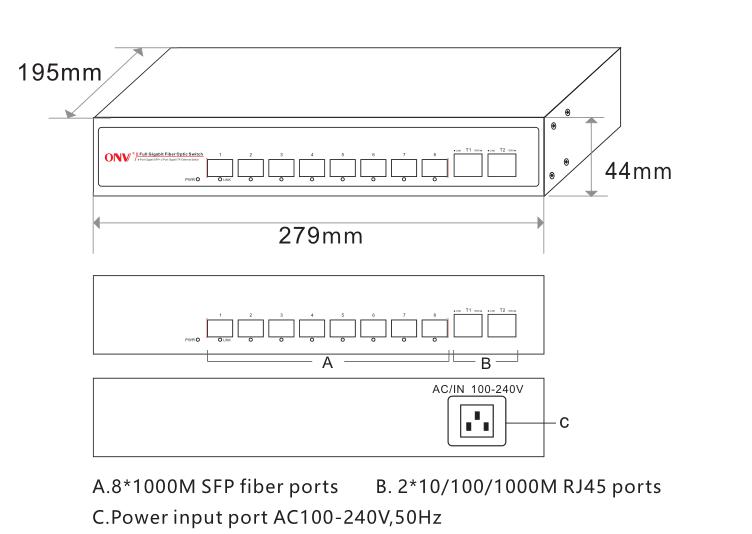

DIMENSION
