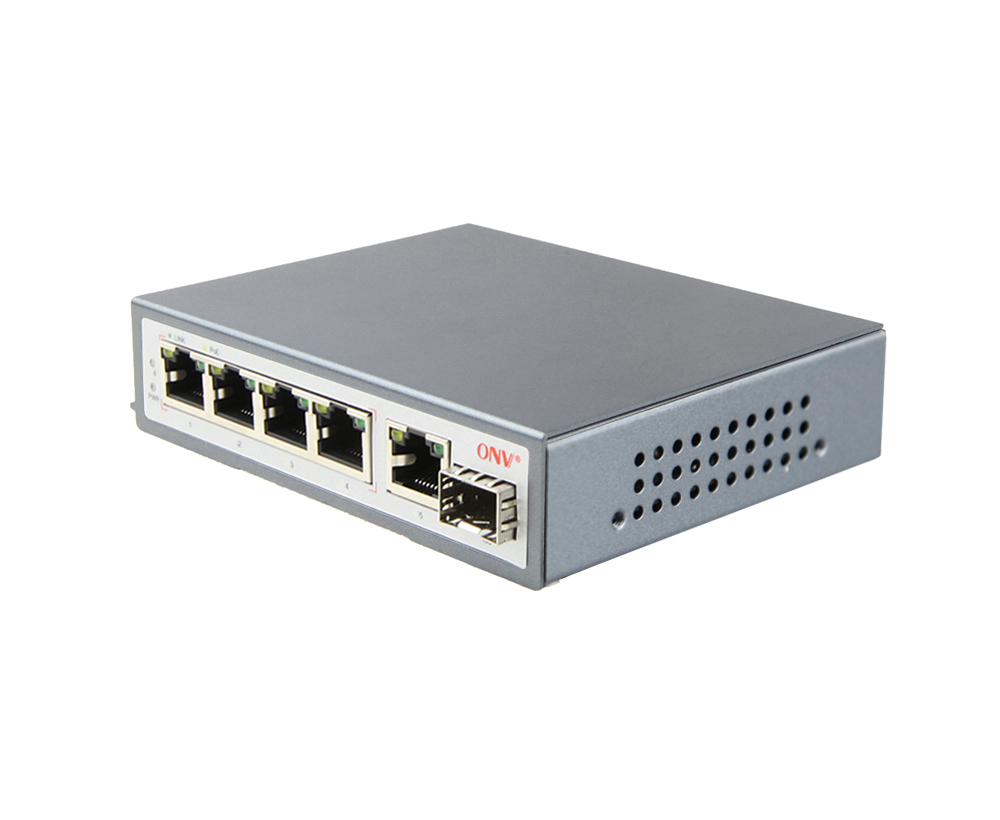

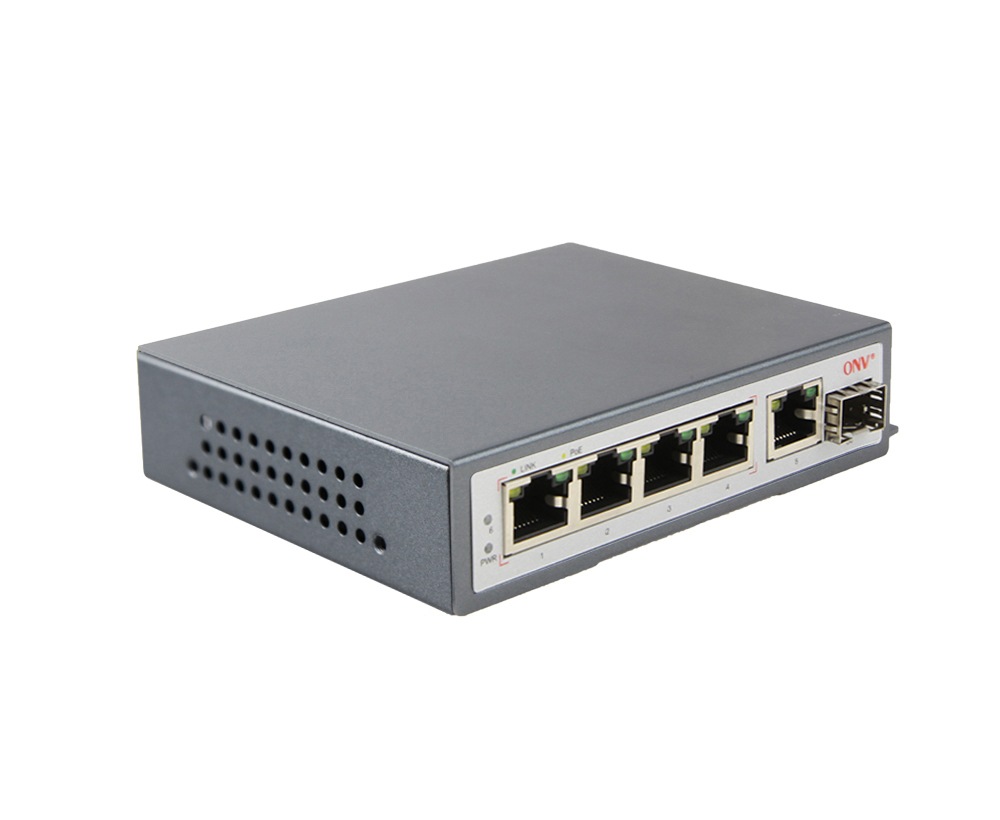

The ONV-POE31064PFG is an unmanaged PoE fiber switch independently developed by ONV. It has 4*10/100Base-TX PoE ports and 1*10/100/1000Base-T RJ45 port and1*1000Base-X SFP slot port . Port 1-4 can support IEEE802.3af/at standard PoE power supply.single port PoE power reaches 30W, and the maximum PoE output power is 65W (at-110W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
10/100Mbps access, gigabit TP/SFP (combo port ) uplink
◇ All series support “Ethernet port and Gigabit Ethernet port and Gigabit SFP port” combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire speed forwarding .
◇ Support full duplex based on IEEE802.3x and half duplex based on backpressure.

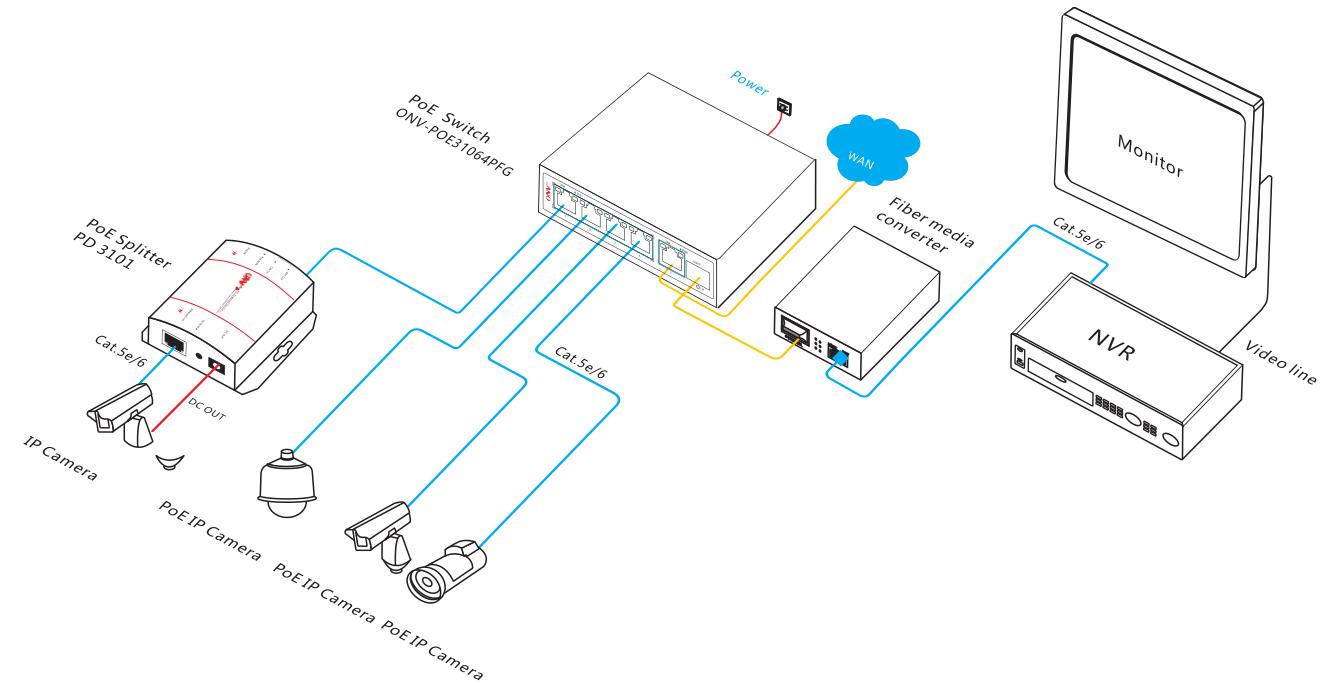

Intelligent PoE power supply
◇ 4*10/100Base-TX RJ45 ports support PoE power supply to meet the needs of PoE power supply in security monitoring, teleconferencing systems, and wireless coverage.
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable, easy to operate
◇ CCC,CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ Low power consumption and low noise, galvanized steel metal casing. No fan.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Linkt, PoE.

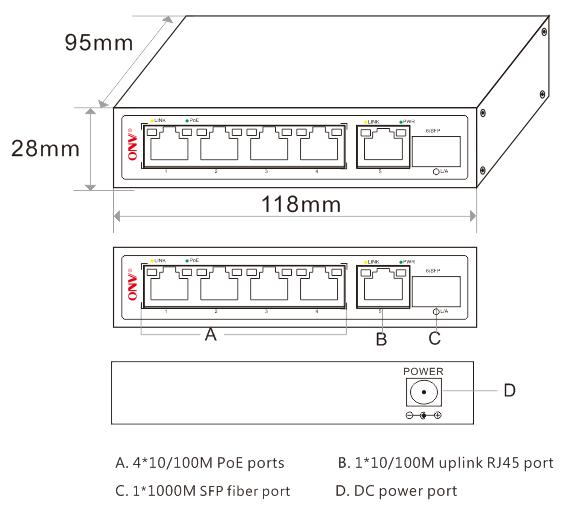

DIMENSION
| Model | ONV-POE31064PFG | ONV-POE31064PFG-at |
| Interface Characteristics | ||
| Fixed Port | 4*10/100Base-TX PoE ports (Data/Power) 1*10/100/1000Base-T uplink RJ45 port (Data) 1*1000Base-X uplink SFP slot port (Data) | |
| Ethernet Port | Port 1-4 can support 10/100Base-T(X) auto-sensing, port 5 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption | |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T : Cat5e or later UTP(≤100 meter) | |
| Optical Fiber Port | Gigabit SFP optical fiber port, default not matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
| Optical Cable/ Distance | Multi mode: 850nm / 0 ~ 500M single mode: 1310nm / 0 ~ 40KM, 1550nm 0 ~ 120KM. | |
| Chip Parameter | ||
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x | |
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 8Gbps | |
| Forwarding Rate@64byte | 3.57Mpps | |
| MAC | 2K | |
| Buffer Memory | 2M | |
| Jumbo Frame | 9.2K | |
| LED Indicator | Power: PWR (green); Data: Link，Link/Act (yellow); POE: PoE (green); Rate: Speed(green) | |
| PoE & Power | ||
| PoE Port | Port 1 to 4 IEEE802.3af/at @ POE | |
| Power Supply Pin | Default 1/2(+), 3/6(-),optional 4/5(+), 7/8(-) | |
| Max Power Per Port | 30W; IEEE802.3af/at | |
| Total PWR / Input Voltage | 65W/DC52V | 110W/DC52V |
| Power Consumption | Standby<5W, Full load<65W | Standby<6W, Full load<110W |

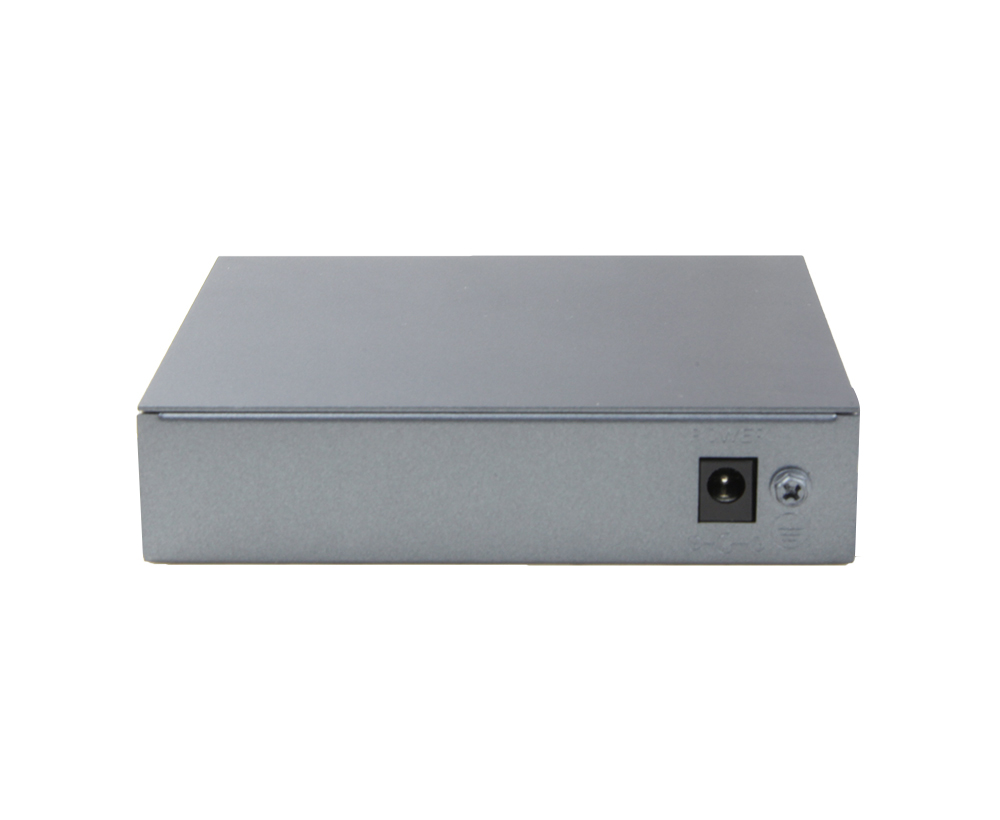

| Input Voltage / Interface | DC48-57V / DC5521 power terminal connection | |
| Power Supply | External power adapter AC100~240V 50-60Hz 1.1A | External power adapter AC100~240V 50-60Hz 2.0A |
| Physical Parameter | ||
| Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing | |
| Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing | |
| Dimension (L*W*H) | 118*95*28mm | |
| Net /Gross Weight | <0.35kg / <1.0kg | |
| Installation | Desktop, wall-mounted | |
| Certification & Warranty | ||
| Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 | |
| Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; | |
| Warranty | 3 years, lifelong maintenance. | |
Model | Description | Configure Power Adapter |
ONV-POE31064PFG | Unmanaged PoE switch with 4*10/100M PoE port and 1*10/100/1000M uplink RJ45 port and 1*1000M uplink SFP slot port . Port 1-4 can support IEEE802.3af/at PoE standard. External power supply. | 65W |
ONV-POE31064PFG-at | 110W |
PACKING LIST | CONTENT | QTY | UNIT |
6-port gigabit uplink PoE fiber switch | 1 | SET | |
AC Power Cable+ Power Adapter | 1 | SET | |
Mounting Kits | 1 | SET | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
