ONV-IPS33128F

OVERVIEW

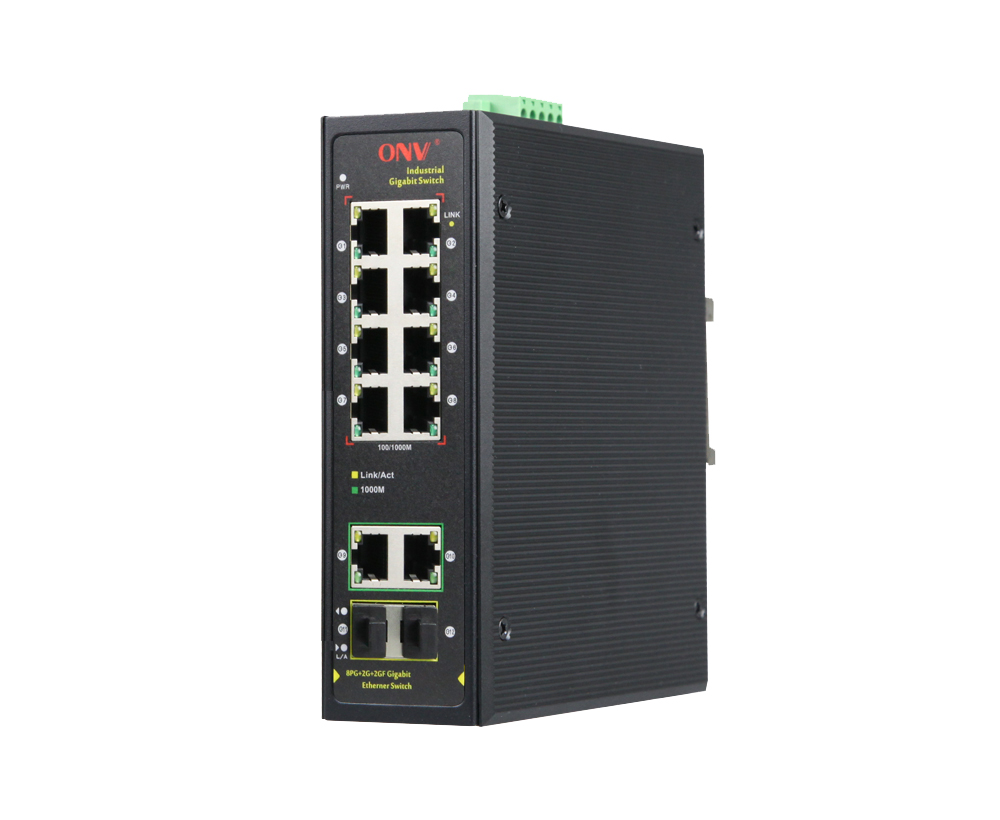

The ONV-IPS33128F is a full gigabit industrial Ethernet fiber switch independently developed by ONV. It is designed to meet industrial fields and systems and can operate stably for a long time in harsh environments. It has 10*10/100/1000M adaptive RJ45 ports and 2*1000M SFP fiber slot ports, Each port can support full line-rate forwarding.

ONV-IPS33128F industrial Ethernet switch has excellent industrial field environment adaptability (including mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), protection level up to IP40, support for dual redundant power supply, low power consumption and no fan Cooling technology, MTBF average trouble-free working time up to 35 years, long 5-year warranty, non-management models, plug and play, no configuration, easy to use. It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a cost-effective and stable communication network.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

Gigabit Ethernet port access, uplink gigabit dual SFP port

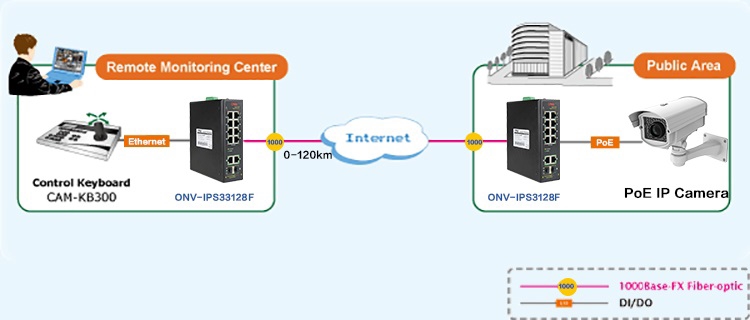

◇ Uplink gigabit dual fiber ports,easy to achieve high bandwidth and long-distance transmission.

◇ Dual SFP fiber ports can cascade, chain, compatible with SFP module connection.

Powerful port lightning protection, wide voltage input

◇ Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;

◇ Industrial dual power input

◇ Non-PoE DC INPUT: 12-48V.

Stable and reliable

◇ Low power consumption, fan-less design, aluminum shell.

◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

◇ CCC,CE, FCC, RoHS.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR,SYS, Link, L/A

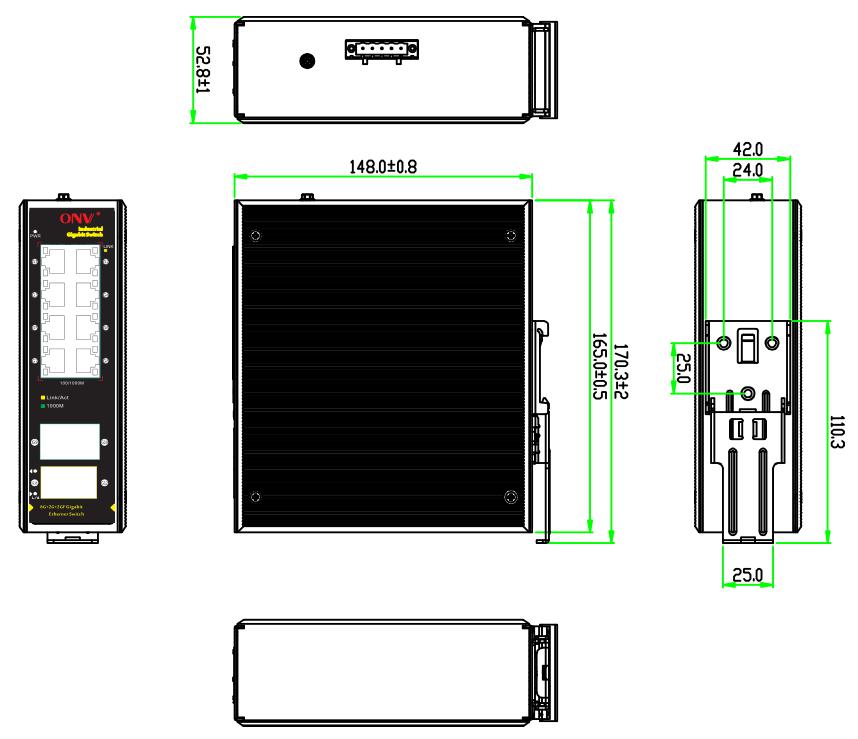

DIMENSION
