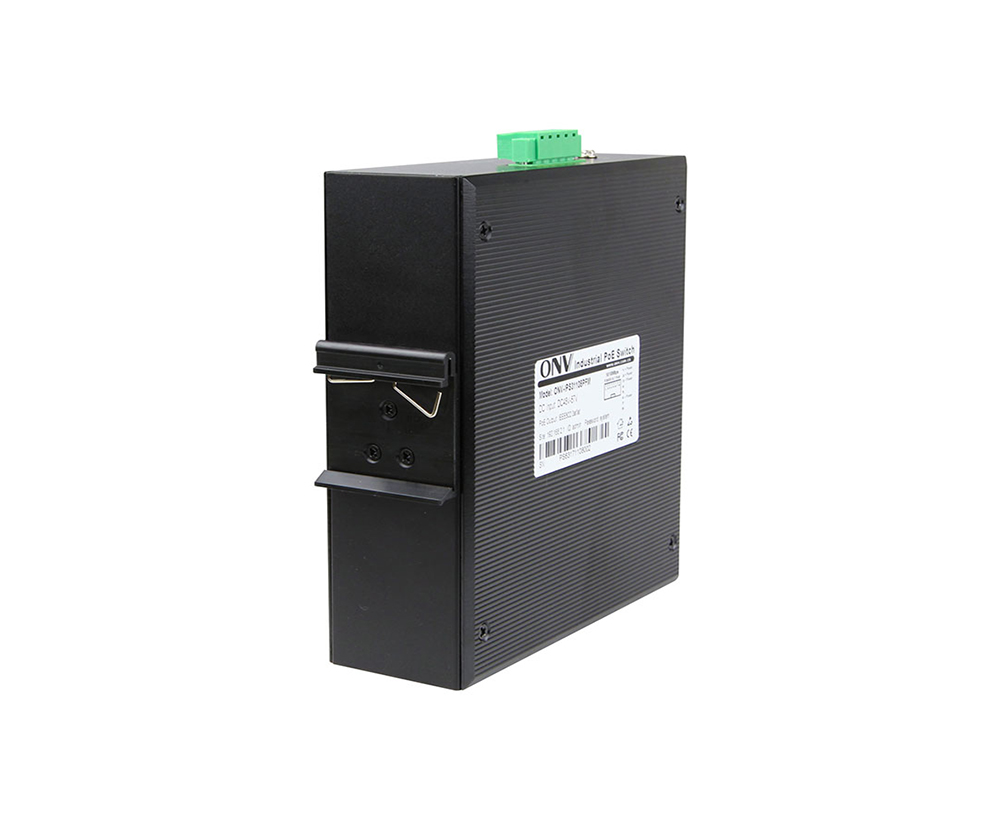

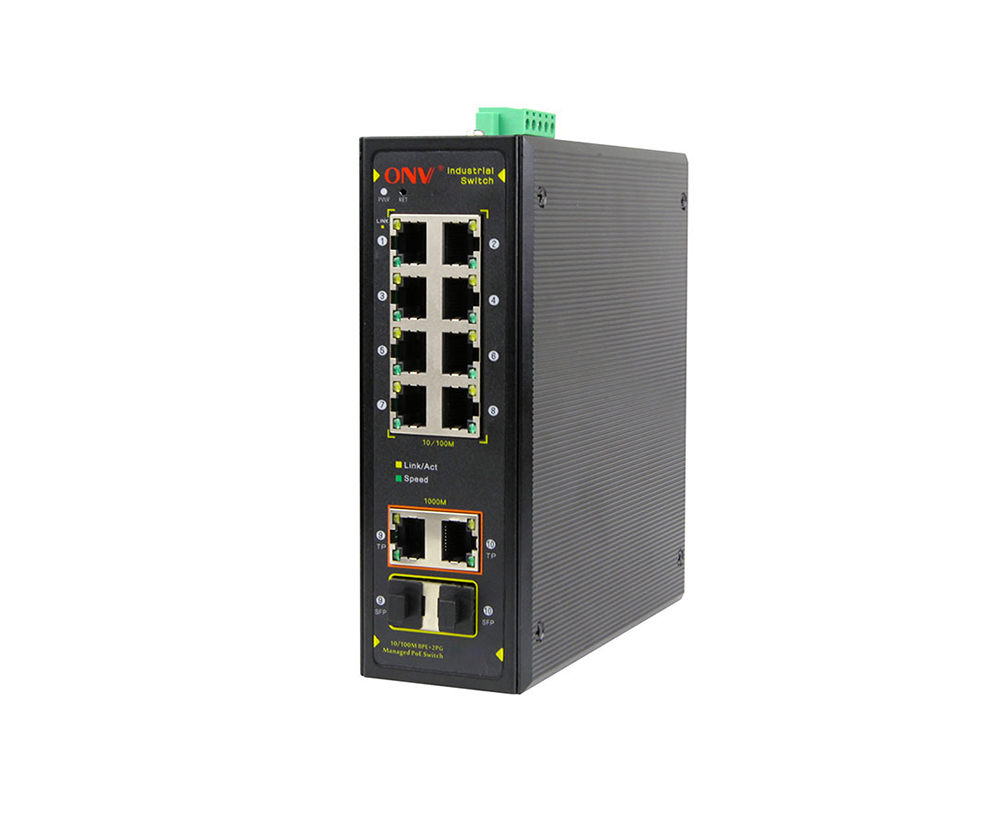

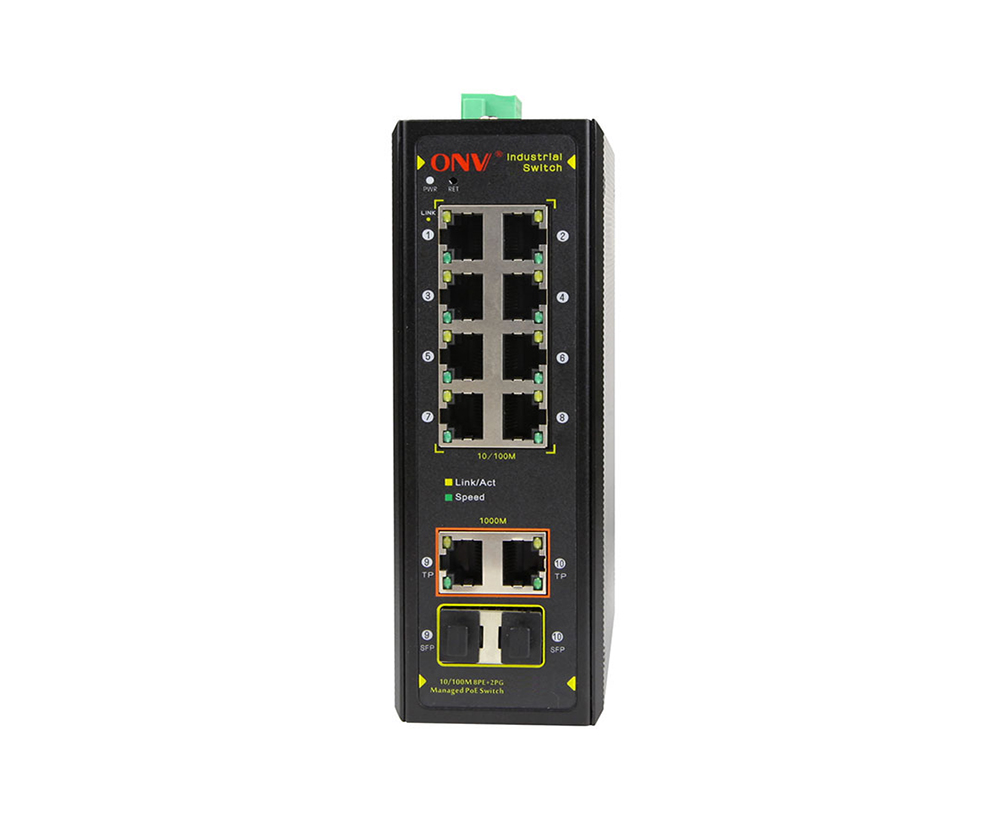

ONV-IPS31108FM

OVERVIEW

The ONV-IPS31108FM is a gigabit uplink L2 managed industrial Ethernet fiber switch independently developed by ONV.  It has 8*10/100Base-TX RJ45 ports and 2*100/1000Base-T(X) TP/SFP combo ports . Each port can support wire-speed forwarding.

The ONV-IPS31108FM series adopts a new generation of high-performance hardware and software platform to provide flexible and cost-effective 100M access and gigabit uplink ports. It can support security protection mechanism, ACL/QoS and VLAN functions for easy management and maintenance, and meets users’ requirements for network devices. Easy to manage, high security, low-cost networking requirements. The industrial-grade series products are designed and used in accordance with industrial products. The aluminum alloy shell enhances heat dissipation and has excellent industrial field environment adaptability (including mechanical stability, climatic environment adaptability, electromagnetic environment adaptability, etc.), protection level IP40, support dual redundant power supply, low power consumption, fan-less cooling, MTBF mean trouble-free working time up to 35 years, 5 years warranty. It is suitable for industrial scenes such as intelligent transportation, rail transit, power industry, mining, petroleum, shipping, metallurgy and green energy construction to form a cost-effective, stable and reliable communication network.

FEATURE

10/100M access, Gigabit TP/SFP combo port uplink

◇ All series support “10/100M Ethernet port and Gigabit combo port”combination, which enables users to flexibly build networking to meet the needs of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Security

◇ 802.1X authentication.

◇ Port isolation,Storm control.

◇ IP-MAC-VLAN-Port binding.

Strong business processing capability

◇ IEEE802.1Q VLAN, flexible VLAN division and QinQ configuration.

◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.

◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

◇ IGMP V1/V2 and IGMP Snooping.

◇ STP/RSTP/MSTP.

◇ Static and dynamic aggregation.

Stable and reliable

◇ Low power consumption, no fan , aluminum casing.

◇ CCC,CE, FCC, RoHS.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link .

Easy operation and maintenance management

◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

◇ HTTPS, SSLV3, and SSHV1/V2.

◇ RMON, system log, LLDP, and port traffic statistics.

◇ CPU monitoring, memory monitoring.

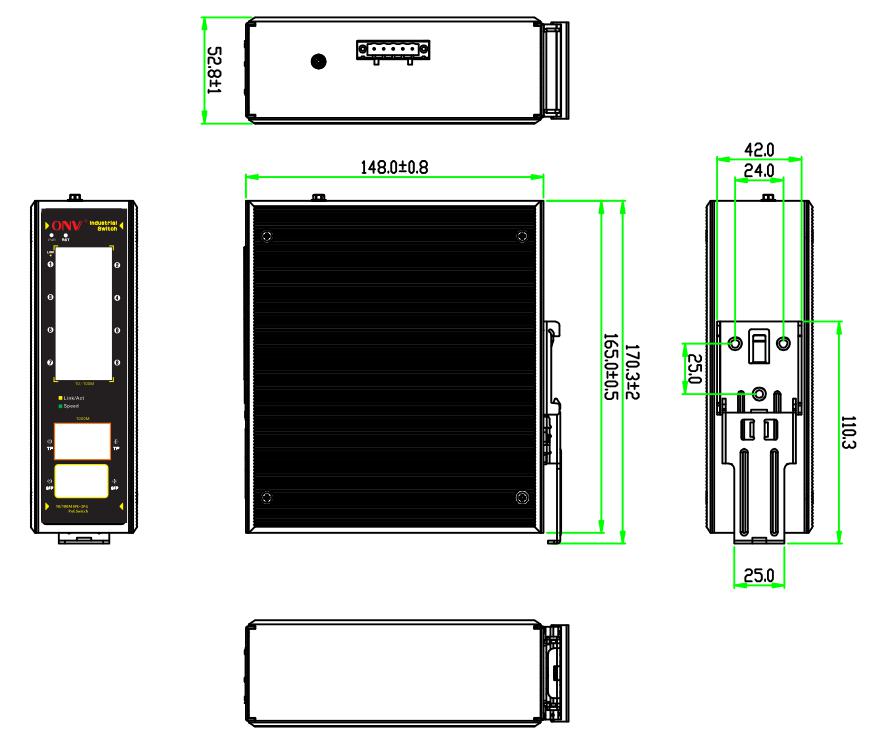

DIMENSION
