TS-855eU

2U short-depth rackmount NAS with 8-core computing power for optimized virtualization

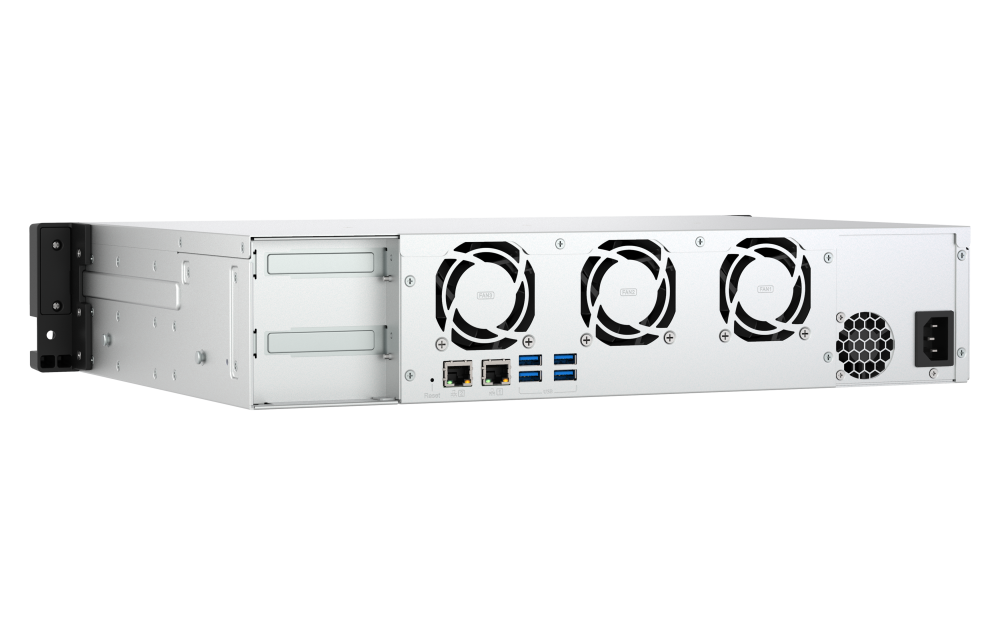

TS-855eU-SP_Back-left-angle-of-elevation

TS-855eU Specification

Hardware Specs

TS-855eU-8G

Software Specs

QTS

QuTS hero

QTS

QuTS hero

Văn phòng Tp. Hồ Chí Minh

Văn phòng Hà Nội

Kinh doanh

Hỗ trợ các vấn đề khác

Operating System	QuTS hero h5.0.0
Supported Client Operating Systems	Apple Mac OS 10.10 or later Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux IBM AIX 7, Solaris 10 or later UNIX Microsoft Windows 7, 8, and 10 Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019
Supported Browsers	Apple Safari (latest version) Google Chrome (latest version) Microsoft Edge (latest version) Mozilla Firefox (latest version)
Supported Languages	Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Storage Pool	✓
SED Storage Pool	✓
Maximum Pool size	1024 TB
Maximum number of storage pool	128
Shared Folder Type	Thick, Thin
Maximum shared folder size	1024 TB
Maximum number of shared folder	256
JBOD Expansion	✓
VJBOD / VJBOD Cloud	✓
iSCSI Service	✓
Fibre Channel Service	✓
LUN Type	Thick, Thin
Block-based iSCSI LUN	✓
Maximum LUN size	1024 TB
Maximum number of targets LUN	256
RAID Type	Single, RAID 0, 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
RAID Group	✓ To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.
RAID Expansion (by replacing bigger Disks)	✓
Storage Pool Expansion (by adding RAID Group)	✓
RAID Hot Spare	Global, Local
RAID Sync/Rebuild/Scrubbing	✓
End-to-End data integrity	✓
Silent error detection and self-healing	✓
Internal drive	ZFS
External drive	EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
Disk, Enclosure Locate	✓
Disk S.M.A.R.T. Scan	✓
Disk S.M.A.R.T. Data Migration	✓
Ironwolf Health Management	✓
Secure Erase	✓
SSD Trim	✓
SSD Life Estimation	✓
Disk Roaming	✓
Disk Standby	✓
Shared Folder Snapshot	✓
LUN Snapshot	✓
Maximum Snapshot (Per System)	Check maximum number of snapshots of your NAS
Maximum Snapshot (Per Volume / LUN)	Check maximum number of snapshots of your NAS
Minimum Snapshot Interval	1 minute
Snapshot Retention Policy	✓
Self-serve Snapshot Recovery	✓
Application Consisted Snapshot	✓
Snapshot Full Clone	✓
Snapshot Instant Clone	✓
Snapshot Replica / Vault	✓
SSD read-only Cache	✓
SSD read & write log cache	✓
SSD dedicated ZIL cache	✓
SSD Cache Maximum Size	Check your QNAP NAS cache capacity and RAM requirements
SSD Cache RAID	0, 1, 10 (journal)
External Device Management	✓
Mount Smart Phone (MTP)	✓
External RAID Device (QNAP so on) Management (External Device Mode)	✓
External RAID Device (QNAP so on) Management (NAS Mode)	✓
File Server	File sharing across Windows, Mac, and Linux/UNIX Microsoft networking (CIFS/SMB) Apple networking (AFP) NFS version 3/4 services
FTP Server	FTP, SFTP and TFTP protocols FTP over SSL/TLS (explicit FTPS) FXP support
Maximum FTP connection	1024
Shared Folder Data Compression	✓
Shared Folder Data Deduplication	✓
Shared Folder WORM	✓
File Station (Web)	✓
Object Storage	✓
Local user account	16,000
Local group account	512
Domain user/group account	200,000
Domain Security	✓
Domain Controller	✓
Shared folder permission	✓
Windows ACL	✓
User quota	✓
Group quota	✓
Folder quota	✓
Home folder	✓
Resource Monitor	✓
SNMP	V2, V3
Network recycle bin	Recover files deleted using AFP, CIFS/SMB, and File Station Automatic cleanup and file type filter
System Log & Notification Center	Log recording: 3,000 event per hour
Smart Fan	✓
Schedule on/off	✓
Internet protocol	IPv4, IPv6
Virtual Switch	✓
Port trunking	, (7 modes)
VLAN	✓
DHCP Server	✓
DDNS (Dynamic Domain Name Service)	✓
Network access protection with auto-blocking	SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
Security Counselor	✓
Malware Remover	✓
AES 256-bit Folder Encryption validated by FIPS 140-2 CAVP	✓
2-step verification	✓
Allow/Deny List	✓
Access Protection	✓
Service binding	✓
Firewall	✓
vSphere Web Client Plug-in	✓
VMware vSphere VAAI for iSCSI	✓
VMware vSphere VAAI for NAS	✓
Windows ODX	✓
Windows/VMware Snapshot Agent	✓
HTTP/HTTPS Connections	TLS 1.0/1.1/1.2/1.3
Supports WebDAV Connection	✓
Supports Virtual Hosts	32
Qsync	✓ Note: At least 1 GB RAM is required.
[Qsync] Management Mode	User customization, Central
[Qsync] Qsync client supported platforms	Windows, macOS, Ubuntu, Android, and iOS
[Qsync] Maximum number of version control	64
HybridMount	✓ Note: At least 1 GB RAM is required.
[HybridMount] File Cloud Gateway	Concurrent Connections = 80 Upload & 80 Download
[HybridMount] Network Drive Mount	✓
[HybridMount] Free cloud gateway sessions	2
HBS (Hybrid Backup Sync)	✓ Note: At least 1 GB RAM is required.
[HBS (Hybrid Backup Sync)] NAS to NAS backup	✓
[HBS (Hybrid Backup Sync)] NAS to rsync backup	✓
[HBS (Hybrid Backup Sync)] NAS to FTP backup	✓
[HBS (Hybrid Backup Sync)] Cloud Backup	✓
[HBS (Hybrid Backup Sync)] Cloud Sync	✓
[HBS (Hybrid Backup Sync)] 2-way and Active Sync	✓
[HBS (Hybrid Backup Sync)] Backup Deduplication	✓
[HBS (Hybrid Backup Sync)] Real-time backup	✓
[HBS (Hybrid Backup Sync)] Apple Time Machine Backup	✓
[HBS (Hybrid Backup Sync)] External drive backup	✓
[HBS (Hybrid Backup Sync)] Maximum number of backup job	400
Hyper Data Protector	✓
Boxafe	✓ Note: At least 1 GB RAM is required.
[Boxafe] Office 365 Backup	✓
[Boxafe] Google Workspace Backup	✓
[Boxafe] Full-text search	✓
Qsirch	✓ Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory
[Qsirch] Previews	Photos, music, videos, PDFs, Gmail, and others
[Qsirch] Integrate Mac Finder	✓
[Qsirch] Advanced picture search	✓
[Qsirch] Search filters	✓
QuMagie	✓ Note: At least 1 GB RAM is required.
[QuMagie] Browse photos	✓
[QuMagie] Virtual and smart albums	✓
[QuMagie] AI-assisted photo management	People, things, places, and others
Antivirus (free)	✓
McAfee (License)	✓
QVPN Service	✓ Note: At least 1 GB RAM is required.
[QVPN Service] Remote Access	PPTP, L2TP/IPSec, OpenVPN, QBelt (QNAP proprietary)
[QVPN Service] Supportedd utility and mobile app	Windows, macOS, iOS, and Android
[QVPN Service] Supported maximum clients	100
HD Station	✓
LDAP Server	✓
RADIUS	✓
SQL server	✓
License Center	✓
Multimedia Console	✓
Photo Station	✓
Music Station	✓
Video Station	✓
Download Station	✓
Notes Station	✓
Qfiling	✓
Media Streaming add-on	✓
QmailAgent	✓
QuWAN	✓
DA Driver Analyzer	✓
Q’center	✓ Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).
Q’center Server	✓
Q’center Agent	✓
Connect to Q’center	✓
Virtualization Station	✓ Note: At least 4 GB RAM is required.
[Virtualization Station] Supports Virtual machine instances	Windows, Linux, Unix, and Android
[Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration	All function is Fine.
[Virtualization Station] Virtual switches	Can create a virtual switch
[Virtualization Station] GPU pass-through	GPU function is fine
[Virtualization Station] Suggested number of virtual machine instances	32 Note: the actual number of virtual machine instances supported may vary by the memory installed on NAS.
Container Station	✓ Note: At least 1 GB RAM is required.
[Container Station] Supported type	LXC/LXD and Docker Note: LXD has been supported after Container Station 2.4
[Container Station] Docker Hub Registry	✓
[Container Station] Container importing and exporting	✓
[Container Station] Console mode	✓
Linux Station	✓
Supports Linux Station versions	16.04, 18.04, and 20.04
Linux Station Center	✓
QVR Elite	✓ Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
[QVR Elite] Recording Technique	Standard MP4 file based
[QVR Elite] License Type	Subscription-based
[QVR Elite] User-defined trigger events	✓
[QVR Elite] QVR Pro Client (Desktop)	Windows, macOS, and QNAP HybridDesk Station
[QVR Elite] QVR Pro Client (Mobile)	Android and iOS
[QVR Elite] Recording camera streams	H.264
[QVR Elite] Free built-in camera channels	2
[QVR Elite] Expandable camera channels	Developing
[QVR Pro Client] Live 4K H.265 (6M) channel Number @ 8 x 1080P H.264 recording channls (Use HybridDesktop Platform) (Expected)	N/A
[QVR Pro Client] Live 1080P H.264 (5M) channel Number @ 8 x 1080P H.264 recording channls (Use HybridDesktop Platform) (Expected)	N/A
[QVR Pro Client] Live 720P (3M) H.264 channel Number @ 8 x 1080P H.264 recording channls (Use HybridDesktop Platform) (Expected)	N/A
QVR Center	✓ Note: At least 4 GB RAM is required.
[QVR Center] Log management	✓
[QVR Center] Central monitoring across multiple servers	✓

Operating System	QTS 5.0.1
Supported Client Operating Systems	Apple Mac OS 10.10 or later Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux IBM AIX 7, Solaris 10 or later UNIX Microsoft Windows 7, 8, 10 and 11 Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019
Supported Browsers	Apple Safari (latest version) Google Chrome (latest version) Microsoft Edge (latest version) Mozilla Firefox (latest version)
Supported Languages	Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Storage Pool	✓
SED Storage Pool	✓
Maximum Pool size	308 TB
Maximum number of storage pool	128
Volume Type	Thick, Thin, Static
Maximum volume size	250 TB Note: At least 4 GB RAM is required.
Maximum number of volume	128
Maximum shared folder size	250 TB
Maximum number of shared folder	512
JBOD Expansion	✓
VJBOD / VJBOD Cloud	✓
iSCSI Service	✓
Fibre Channel Service	✓
LUN Type	Thick, Thin
File-based iSCSI LUN	✓
Block-based iSCSI LUN	✓
Maximum LUN size	250 TB Note: At least 4 GB RAM is required.
Maximum number of targets LUN	256
LUN feature	LUN Mapping (LUN can be moved between iSCSI and FC) LUN Masking WWPN Aliases Import/Export FC Port Group FC Port Binding Multipath IO (MPIO) Online LUN capacity expansion LUN snapshot LUN snapshot replication and clone
Auto Tiering	✓ Requires minimum 2GB memory.
RAID Type	8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 2-bay: JBOD, Single, RAID 0, 1
RAID Group	✓ To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.
RAID Level Migration	✓
RAID Expansion (by adding Disk)	✓
RAID Expansion (by replacing bigger Disks)	✓
Storage Pool Expansion (by adding RAID Group)	✓
RAID Hot Spare	Global, Local
RAID Sync/Rebuild/Scrubbing	✓
Internal drive	EXT4
External drive	EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model) Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.
Disk, Enclosure Locate	✓
Disk S.M.A.R.T. Scan	✓
Disk S.M.A.R.T. Data Migration	✓
Ironwolf Health Management	✓
Secure Erase	✓
SSD Trim	✓
SSD Life Estimation	✓
Disk Roaming	✓
Disk Standby	✓
Volume Snapshot	✓
LUN Snapshot	✓
Maximum Snapshot (Per System)	Check maximum number of snapshots of your NAS
Maximum Snapshot (Per Volume / LUN)	Check maximum number of snapshots of your NAS
Minimum Snapshot Interval	5 minutes
Snapshot Retention Policy	✓
Self-serve Snapshot Recovery	✓
Application Consisted Snapshot	✓
Snapshot Full Clone	✓
Snapshot Replica / Vault	✓
SSD read-only Cache	✓
SSD read-write cache	✓
SSD write-only cache	✓
SSD Cache Maximum Size	Check your QNAP NAS cache capacity and RAM requirements
SSD Cache RAID	0, 1, 5, 6, 10
SSD profiling tool	✓
External Device Management	✓
Mount Smart Phone (MTP)	✓
External RAID Device (QNAP so on) Management (External Device Mode)	✓
External RAID Device (QNAP so on) Management (NAS Mode)	✓
File Server	File sharing across Windows, Mac, and Linux/UNIX Microsoft networking (CIFS/SMB) Apple networking (AFP) NFS version 3/4 services
FTP Server	QuFTP FTP, SFTP and TFTP protocols FTP over SSL/TLS (explicit FTPS) FXP support
Maximum FTP connection	1024
File Station (Web)	✓
Object Storage	✓
Local user account	4,096
Local group account	512
Domain user/group account	200,000
Domain Security	✓
Domain Controller	✓
Shared folder permission	✓
Advanced folder permission	, (AFP, CIFS/SMB, FTP, and File Station)
Windows ACL	, (CIFS/SMB)
User quota	✓
Group quota	✓
Folder quota	, (Snapshot shared folder)
Home folder	✓
Resource Monitor	✓
SNMP	V2, V3
Network recycle bin	Recover files deleted using AFP, CIFS/SMB, and File Station Automatic cleanup and file type filter
System Log & Notification Center	Log recording: 3,000 event per hour
Smart Fan	✓
Schedule on/off	✓
Internet protocol	IPv4, IPv6
Virtual Switch	✓
Port trunking	, (7 modes)
VLAN	✓
DHCP Server	✓
DDNS (Dynamic Domain Name Service)	✓
Network access protection with auto-blocking	SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
Security Counselor	✓
Malware Remover	✓
AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP	✓
2-step verification	✓
Allow/Deny List	✓
Access Protection	✓
Service binding	✓
Firewall	✓
vSphere Web Client Plug-in	✓
VMware vSphere VAAI for iSCSI	✓
VMware vSphere VAAI for NAS	✓
Windows ODX	✓
Windows/VMware Snapshot Agent	✓
HTTP/HTTPS Connections	TLS 1.0/1.1/1.2/1.3
Supports WebDAV Connection	✓
Supports Virtual Hosts	32
Qsync	✓ Note: At least 1 GB RAM is required.
[Qsync] Management Mode	User customization, Central
[Qsync] Qsync client supported platforms	Windows, macOS, Ubuntu, Android, and iOS
[Qsync] Maximum number of version control	64
HybridMount	✓ Note: At least 1 GB RAM is required.
[HybridMount] File Cloud Gateway	Concurrent Connections = 20 Upload & 20 Download
[HybridMount] Network Drive Mount	✓
[HybridMount] Free cloud gateway sessions	2
HBS (Hybrid Backup Sync)	✓ Note: At least 1 GB RAM is required.
[HBS (Hybrid Backup Sync)] NAS to NAS backup	✓
[HBS (Hybrid Backup Sync)] NAS to rsync backup	✓
[HBS (Hybrid Backup Sync)] NAS to FTP backup	✓
[HBS (Hybrid Backup Sync)] Cloud Backup	✓
[HBS (Hybrid Backup Sync)] Cloud Sync	✓
[HBS (Hybrid Backup Sync)] 2-way and Active Sync	✓
[HBS (Hybrid Backup Sync)] Backup Deduplication	✓
[HBS (Hybrid Backup Sync)] Real-time backup	✓
[HBS (Hybrid Backup Sync)] Apple Time Machine Backup	✓
[HBS (Hybrid Backup Sync)] External drive backup	✓
[HBS (Hybrid Backup Sync)] Maximum number of backup job	400
Hyper Data Protector	✓
Boxafe	✓ Note: At least 1 GB RAM is required.
[Boxafe] Office 365 Backup	✓
[Boxafe] Google Workspace Backup	✓
[Boxafe] Full-text search	✓
Qsirch	✓ Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory
[Qsirch] Previews	Photos, music, videos, PDFs, Gmail, and others
[Qsirch] Integrate Mac Finder	✓
[Qsirch] Advanced picture search	✓
[Qsirch] Search filters	✓
QuMagie	✓ Note: At least 1 GB RAM is required.
[QuMagie] Browse photos	✓
[QuMagie] Virtual and smart albums	✓
[QuMagie] AI-assisted photo management	People, things, places, and others
Antivirus (free)	✓
McAfee (License)	✓
QVPN Service	✓ Note: At least 1 GB RAM is required.
[QVPN Service] Remote Access	PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary)
[QVPN Service] Supportedd utility and mobile app	Windows, macOS, iOS, and Android
[QVPN Service] Supported maximum clients	100
HD Station	✓
LDAP Server	✓
RADIUS	✓
SQL server	✓
License Center	✓
Multimedia Console	✓
Photo Station	✓
Music Station	✓
Video Station	✓
Download Station	✓
Notes Station	✓
Qfiling	✓
Media Streaming add-on	✓
QmailAgent	✓
QuWAN	✓
DA Driver Analyzer	✓
Q’center	✓ Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).
Q’center Server	✓
Q’center Agent	✓
Connect to Q’center	✓
Virtualization Station	✓ Note: At least 4 GB RAM is required.
[Virtualization Station] Supports Virtual machine instances	Windows, Linux, Unix, and Android
[Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration	All function is Fine.
[Virtualization Station] Virtual switches	Can create a virtual switch
[Virtualization Station] GPU pass-through	Not support GPU
[Virtualization Station] Suggested number of virtual machine instances	4 Note: the actual number of virtual machine instances supported may vary by the memory installed on NAS.
Container Station	✓ Note: At least 1 GB RAM is required.
[Container Station] Supported type	LXC/LXD and Docker Note: LXD has been supported after Container Station 2.4
[Container Station] Docker Hub Registry	✓
[Container Station] Container importing and exporting	✓
[Container Station] Console mode	✓
Linux Station	✓
Supports Linux Station versions	16.04, 18.04, and 20.04
Linux Station Center	✓
QVR Pro	✓ Note: At least 4 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
[QVR Pro] Recording Technique	Index database based
[QVR Pro] License Type	Perpetual
[QVR Pro] User-defined trigger events	✓
[QVR Pro] Metadata	✓
[QVR Pro] QVR Pro Client (Desktop)	Windows, macOS, and QNAP HybridDesk Station
[QVR Pro] QVR Pro Client (Mobile)	Android and iOS
[QVR Pro] Recording camera streams	H.264
[QVR Pro] Free built-in camera channels	8
QVR Elite	✓ Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
[QVR Elite] Recording Technique	Standard MP4 file based
[QVR Elite] License Type	Subscription-based
[QVR Elite] User-defined trigger events	✓
[QVR Elite] QVR Pro Client (Desktop)	Windows, macOS, and QNAP HybridDesk Station
[QVR Elite] QVR Pro Client (Mobile)	Android and iOS
[QVR Elite] Recording camera streams	H.264
[QVR Elite] Free built-in camera channels	2
QVR Pro Client	✓
[QVR Pro Client] Dynamic View Layout	✓
[QVR Pro Client] Windows	✓
[QVR Pro Client] Mac	✓
[QVR Pro Client] HybridDesktop	✓
[QVR Pro Client] iOS	✓
[QVR Pro Client] Android	✓
QVR Center	✓ Note: At least 4 GB RAM is required.
[QVR Center] Log management	✓
[QVR Center] Central monitoring across multiple servers	✓
QVR Guard	✓ Note: At least 4 GB RAM is required.
[QVR Guard] Failover design	✓
[QVR Guard] Viewing task details	✓
[QVR Guard] Automatic switch between Standby and Takeover modes	✓
QVR Human	✓
QVR Face	✓ The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/solution/qvr-face/en-us/
QVR DoorAccess	✓
