ONV-WR300-4G

OVERVIEW

ONV-WR300-4G is an industrial 4G wireless router independently developed by ONV. The main control adopts the Qualcomm 9531 chip solution, the wireless rate can reach 300M, supports 4G full Netcom, and uses the public GPRS/CDMA/WCDMA/EVDO/LTE network to provide users with wireless long-distance data transmission functions. Built-in embedded operating system, self-designed automatic reconnection function, to provide users with a safe, high-speed, stable, and reliable 4G wireless network. 4G wireless routers have been widely used in the M2M industry in the IoT industry chain, such as self-service terminals, smart grids, smart transportation, smart homes, finance, mobile POS terminals, supply chain automation, industrial automation, smart buildings, fire protection, public safety, Environmental protection, meteorology, digital medical treatment, remote sensing survey, military, space exploration, agriculture, forestry, water affairs, coal mining, petrochemical, and other fields.

FEATURE

No configuration, just use the network card

◇ Insert a 4G SIM card, turn on the power, and enjoy 4G wired/4G wireless high-speed Internet access.

◇ It uses 4G full Netcom modules, compatible with China Mobile, China Unicom, and telecommunications, and users can choose freely.

Industrial grade design, stable and reliable

◇ Low power consumption, No fan design, aluminum alloy shell, excellent heat dissipation, to ensure stable operation of the product.

◇ It uses a high-frequency 650MHz Qualcomm chipset to carry large-capacity loads and processing speeds and can operate stably in an environment of -40°C~+75°C.

Innovative design, powerful function

◇ Support DC9-24V input, which can be better compatible with industrial access, eliminating the trouble of on-site construction.

◇ Equipped with 3 high-gain external omnidirectional antennas, the WIFI downlink peak rate can reach 300Mbps, allowing you to have a stronger signal and faster Internet access.

◇ It adopts the dual design of hardware watchdog and software multi-level link detection mechanism, with automatic fault detection and automatic recovery capabilities to ensure stable and reliable operation of the equipment.

◇ Original network link detection, 4G network is unstable, and 4G disconnection can be automatically re-dull quickly. Adaptive 4G/3G/2G network intelligent switching to ensure reliable transmission without dropping the line.

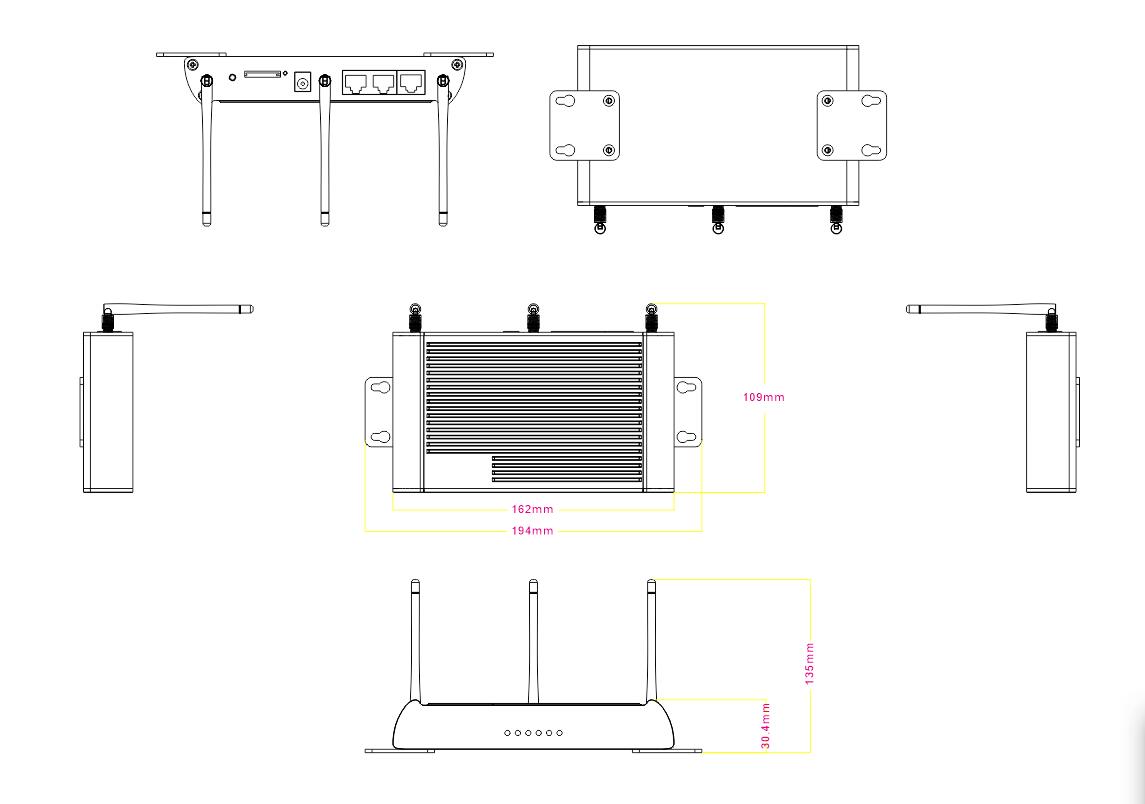

DIMENSION
