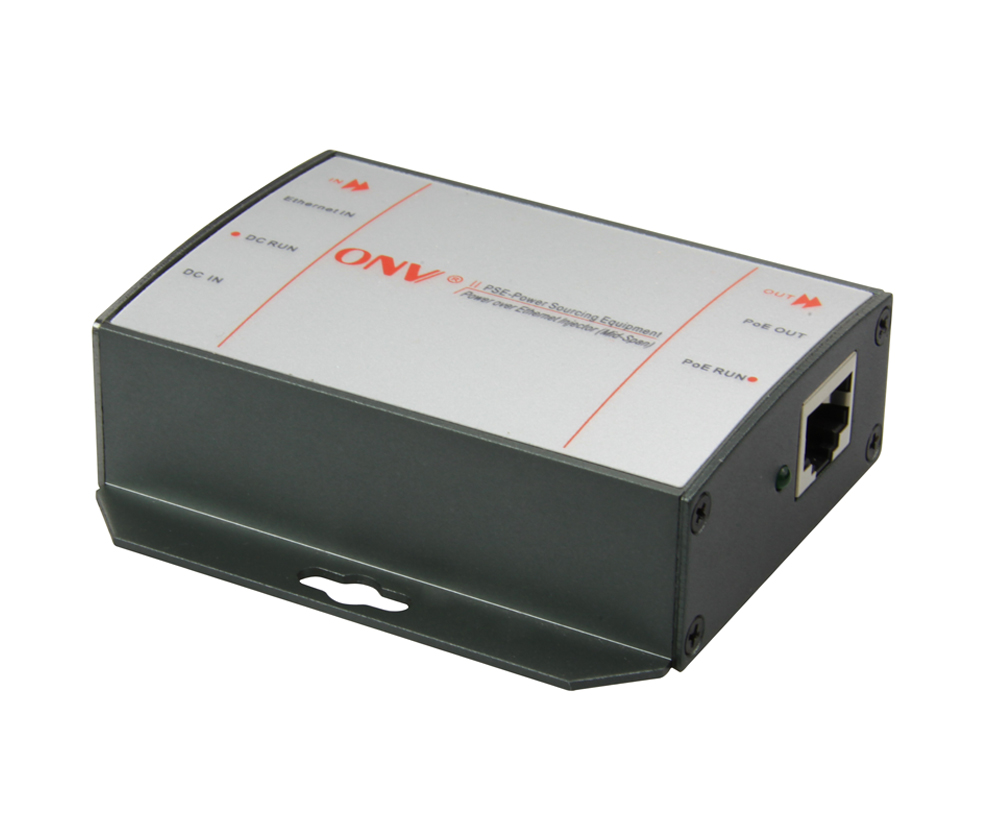

10/100M single port PoE injector 60W

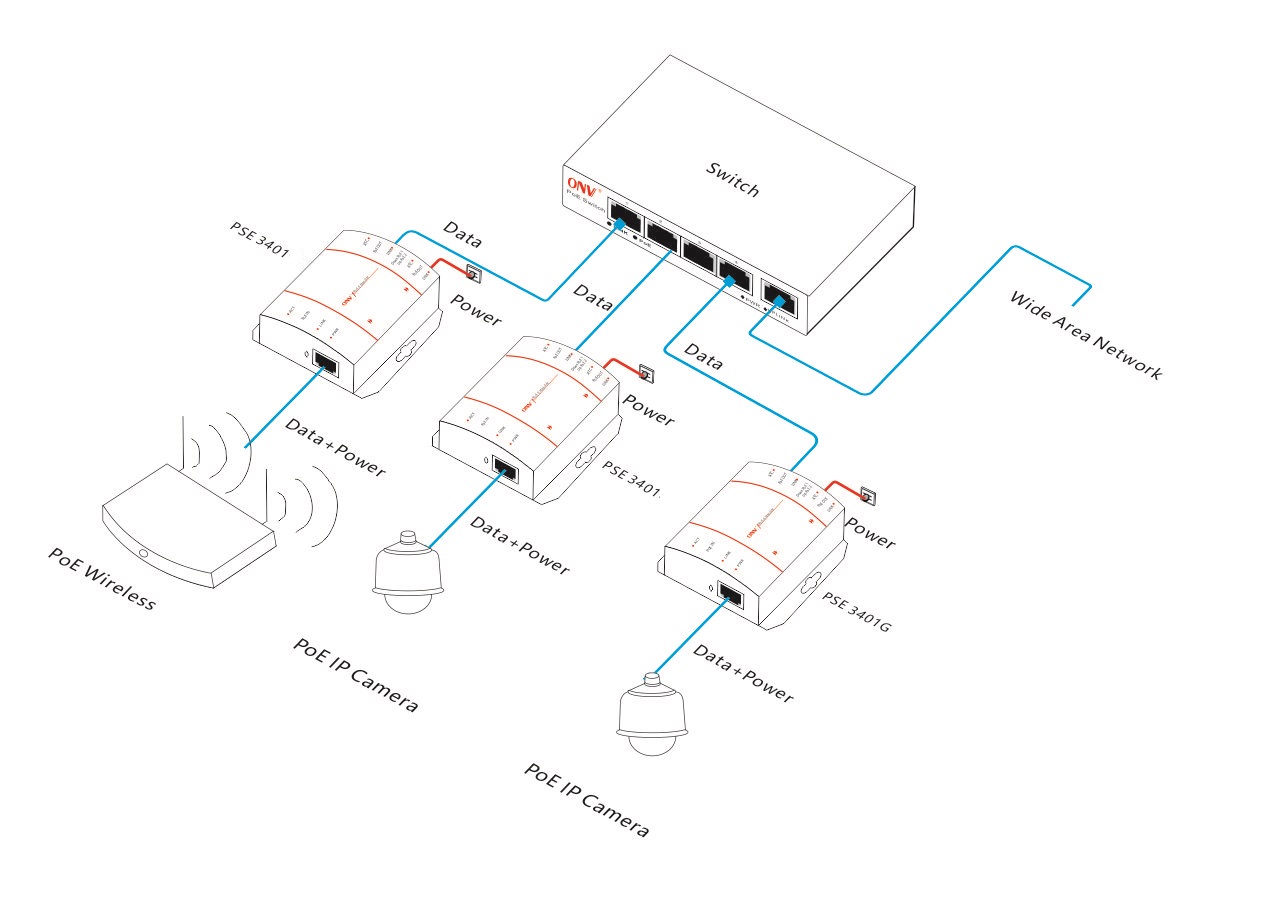

This single port 10/100M 60W high power PoE injector is developed by ONV’s R&D team. It supports LT PoE++ standard and can be backward compatible with IEEE 802.3af/at PoE standard. The maximum PoE output power is 60W, the total power is 65W. There are 2x RJ45 ports. One is linked the upper switch or other upper network devices. And another network port is used as the port that integrated PoE power output and network data. It’s more convenient for installation and use of high power network dome cameras or other high power IP devices.
PoE injector can provide a simple and economical solution for high performance Ethernet PoE power supply and data communication. Easy to use and install, superior performance and cost-effective, which is an ideal choice for customer to improve the projects’ quality. It’s an efficient engineering solution to meet the requirement of the reliability system and simplified installation for remote places without power supply or unable to use Ethernet cable to supply power.
FEATURE
Supply power to 5 classes Ethernet network surveillance cameras
2x 10/100Mbps RJ45 ports
Support network port, lightning-proof power input port (the secondary lightning protection)
PoE power supply method: 4/5(+),7/8(-) or 1/2(+),3/6(-)
Support LT PoE++ standard, and compatible with IEEE802.3af /at standard.
Single PoE port output power is 60W, the voltage is 50-57V.
No fans, natural cooling, small and exquisite, no noise design, suitable for desktop or wall

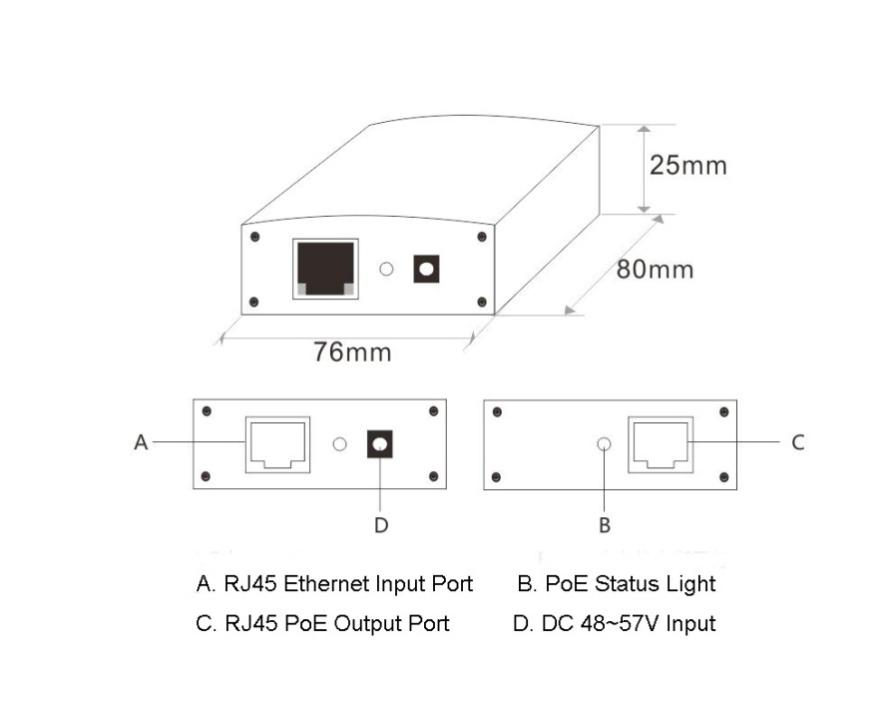

DIMENSION
| Product Model | ONV-PSE3401 |
| Connector Type | 2x copper cable RJ45 ports |
| Network Medium | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| Temperature Resistance | ≤80°C |
| Performance Specifications | Working Speed:10/100Mbps Network Port Protection: meet the IEC61000-4-2(ESD) |
| MTBF | 100,000 hours |
| Network Protocols / Standards | IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.1ab 1000BASET IEEE 802.3af DTE Power via MDI Support LT PoE++ standard, and compatible with IEEE 802.3af/at |
| LEDs Indicator | PoE working status |
| PoE Feature | Single PoE Port Output Power: 60W Voltage: 50-57V |
| Dimension | 80 x 76 x 25mm |
| Weight | 0.12kg |
| Operation TEMP / Humidity | -20°～55°C, 10%～90%, non-condensing, |
| Storage TEMP / Humidity | –20°～ 75°C, 10%～95%, Non-condensing |
| Certification | CE mark, commercial, FCC Part 15 Class B, RoHS |
| Warranty | 3 years warranty |
| Model | Description |
| ONV-PSE3401 | Single port 10/100M 60W PoE injector, high power PoE, supports LT PoE++ standard and downward compatible with IEEE802.3af/at standard, the output power of each port is 60W, the voltage is 50-57V, and the total power is 65W. |
| ONV-PSE3401G | Single port 10/100/1000M 60W PoE injector, high power PoE, supports LT PoE++ high power standard and compatible with IEEE802.3af/at standard, the output power of each port is 60W, the voltage is 50-57V, and the total power is 65W. |
| PACKING LIST | CONTENT | QTY | UNIT |
| 10/100M 60W single port PoE injector | 1 | SET | |
| User Guide | 1 | PC | |
| Warranty Card | 1 | PC |
