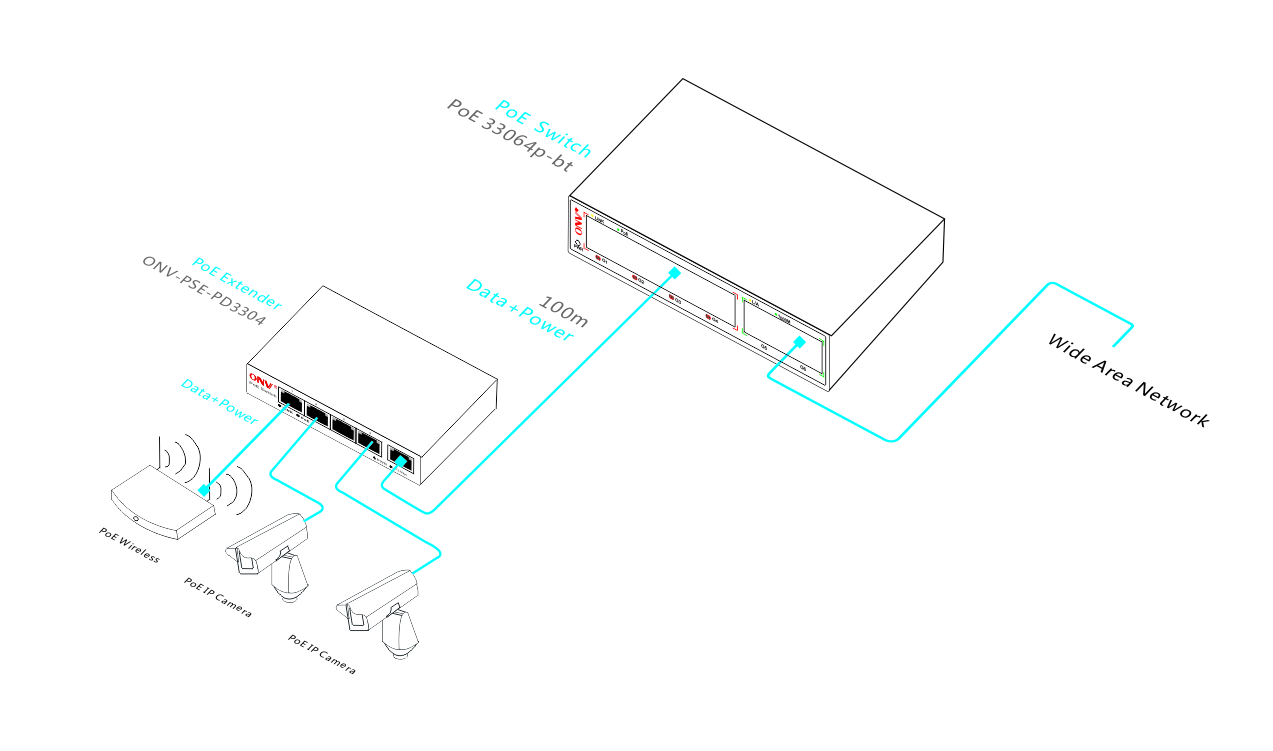

ONV-PSE-PD3304 is an unmanaged PoE extender, it has 4*10/100/1000M PoE ports and 1*10/100/1000M uplink RJ45 port. Port 1-4 can support IEEE802.3af/at PoE standard, single-port PoE power up to 30W, the maximum PoE output power of the PoE extender is 60W. The uplink RJ45 port input power must be greater than 60W to meet the POE power supply requirements of port 1-4. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, video access control, etc. through a network cable, to meet the network environment that requires high-density PoE power supply, and to reduce the bandwidth to solve the twisted pair POE transmission within 200 meters. Application, it is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to form a cost-effective network.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
10/100/1000M access, u plink RJ45 port
◇ 5*10/100/1000Base-T RJ45 ports to meeting the power supply and transmission requirements of the scene within 200 meters.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
Intelligent PoE power supply
◇ 4* 10/100/1000Base-T RJ45 ports can support POE power supply to meeting the needs of PoE power supply in various security scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
Stable and reliable
◇ Low power consumption, fan-less silent , galvanized steel metal casing
◇ CCC,CE, FCC, RoHS.
◇ Plug and play, no configuration, easy to use and maintain.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.

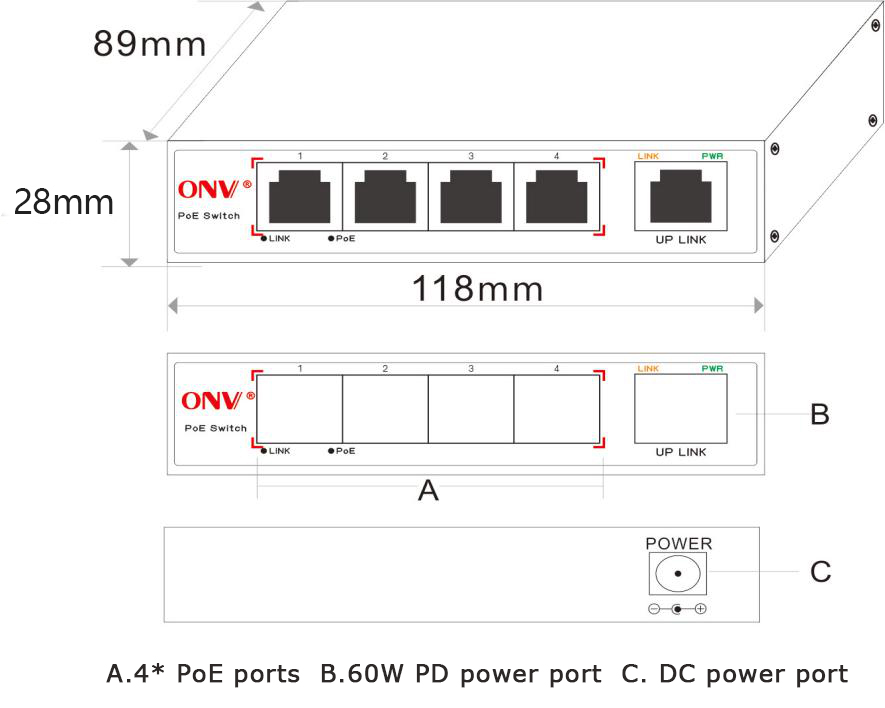

DIMENSION

| Model | ONV-PSE-PD3304 |
| Fixed Port | 4*10/100/1000Base-T PoE ports(Data/Power) 1*10/100/1000Base-T uplink PD power port(Data/Power) |
| PoE Port | Port 1 to port 4 |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,IEEE802.3ab 1000Base-T IEEE802.3u 100Base-TX, IEEE802.3x |
| PoE Standard | IEEE802.3af/at |
| Ethernet Port | 10/100/1000Base-T(X),Auto-sensing,Full/half duplex MDI/MDI-X self-adaption |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 12Gbps |
| Forwarding Rate@64byte | 7.4Mbps |
| MAC | 2K |
| Buffer Memory | 2M |
| Twisted Pair Transmission | 10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-TX:Cat5e or later UTP(≤100 meter) |
| Power Supply Pin | Default: 1/2(+),3/6(-);Optional: 4/5(+),7/8(-) |
| Max Power Per Port | 30W |
| Total PWR | 60W |
| Power Consumption | Standby:<5W; Full Load:<60W |
| LED | Power:PWR( green), Network : Link (yellow) PoE :PoE (green) ,Multi-functional switch: EXTEND(green) |
| Operation TEMP / Humidity | -20~+55°C; 5%~90% RH Non condensing |
| Storage TEMP / Humidity | –40~+80°C; 5%~90% RH Non condensing |
| Dimension(L*W*H) | 118x89x28mm |
| Net /Gross Weight | <0.4kg / <0.5kg |
| Installation | Desktop ,wall mounted, |
| Port lightning protection / protection level | Port lightning protection : 4KV 8/20us; Protection level: IP30 |
| Certification | CCC,CE mark, commercial,CE/LVD EN60950,FCC Part 15 Class B,RoHS |
| Warranty | 3 years |

| Model | Description |
| ONV-PSE-PD3304 | Unmanaged PoE extender with 4*10/100/1000M PoE ports and 1*10/100/1000M uplink RJ45 port. Port 1- 4 can support IEEE802.3af/at PoE standard. Uplink RJ45 port can support 60W POE input. |
| PACKING LIST | CONTENT | QTY | UNIT |
| 4-port gigabit PoE extender | 1 | SET | |
| Mounting Kits | 1 | SET | |
| User Guide | 1 | PC | |
| Warranty Card | 1 | PC |
