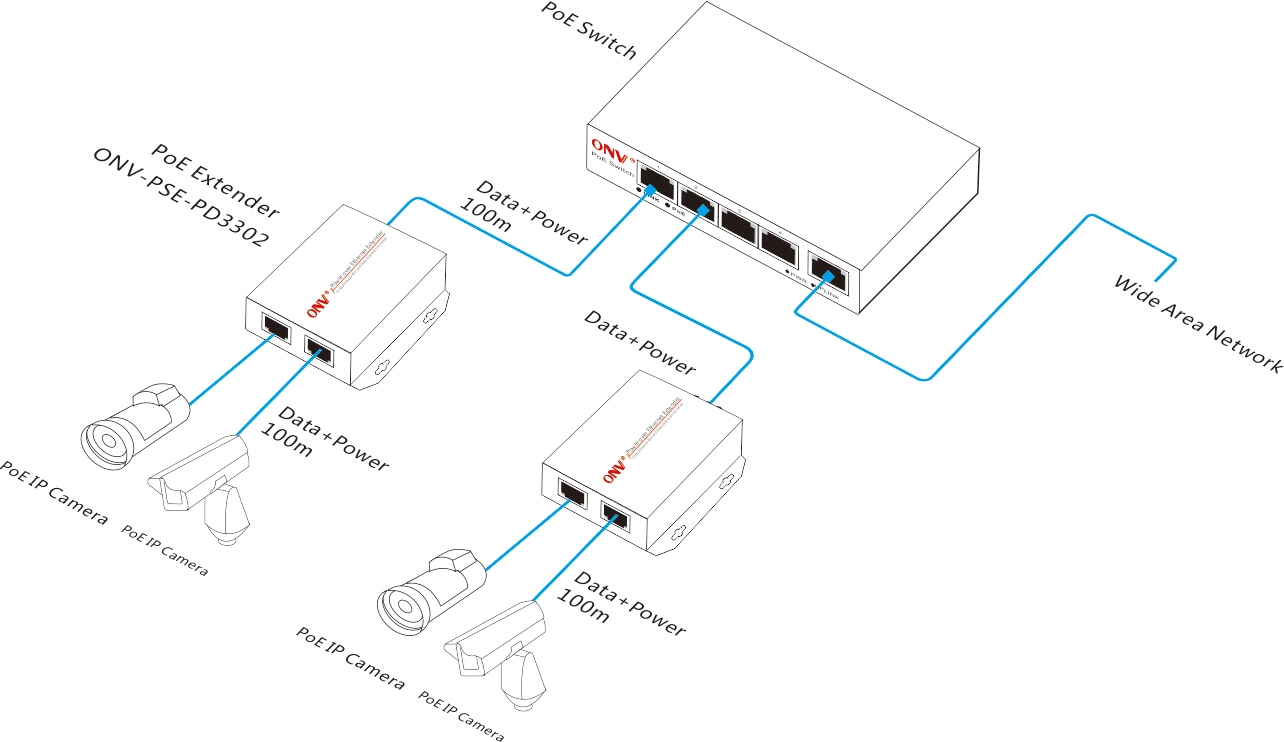

ONV-PSE-PD3302 series is an unmanaged PoE extender. It has 2*10/100/1000M PoE ports and 1*10/100/1000M uplink RJ45 port. Port 1-2 can support IEEE802.3af/at PoE standard. The uplink RJ45 port is the power PD port, and the input power must be greater than or equal to 60W to meet the power supply requirements of 1-2 ports. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, video access control, etc. through a network cable, to meet the network environment that requires high-density PoE power supply, and to reduce the bandwidth to solve the twisted pair POE transmission within 200 meters. Application, it is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to form a cost-effective network.
Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
Full gigabit access, uplink RJ45 port receives power
◇ 3*10/100/1000Base-T RJ45 ports to meeting the power supply and transmission requirements of the scene within 200 meters.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Intelligent PoE power supply
◇ 2* 10/100/1000Base-T RJ45 ports can support POE power supply to meeting the needs of PoE power supply in various security scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices. The single-port maximum PoE output power is 25W.
Stable and reliable
◇ CCC,CE, FCC, RoHS.
◇ Plug and play, no configuration, easy to use and maintain.
◇ Low power consumption, silent design without fan, aluminum alloy shell
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.
◇ When the PoE extender is working, there is no need for an external power supply, and it can easily solve the problem of sufficient bandwidth and full power cable transmission within 200 meters.

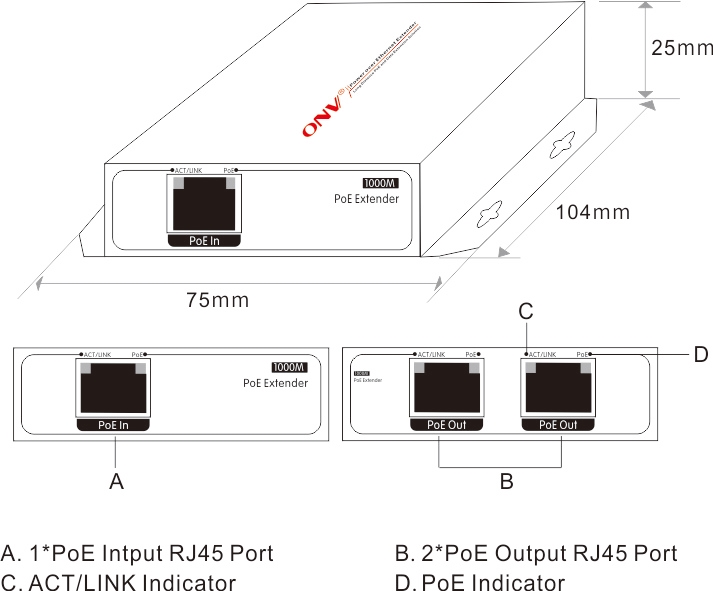

DIMENSION
Model | ONV-PSE-PD3302 |
Interface Characteristics | |
Fixed Port | 2*10/100/1000Base-T PoE ports(Data/Power) 1*10/100/1000Base-T uplink PD power port (Data/Power) |
Ethernet Port | Port 1-3 can support 10/100/1000Base–T(X),auto-sensing,full/half duplex MDI/MDI-X |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
Chip Parameter | |
Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3x |
Forwarding Mode | Store and Forward(Full Wire Speed) |
Switching Capacity | 6Gbps |
Forwarding Rate@64byte | 4.46Mpps |
MAC | 2K |
Buffer Memory | 2M |
Jumbo Frame | 1536byte |
LED Indicator | Power : PWR (green), network :Link(yellow),PoE: PoE(green), functional switch: EXTEND(green) |
PoE & Power | |
PoE Port | 2*PoE output port support IEEE802.3af/at @ POE |
Power Supply Pin | Default: 1/2(+),3/6(-);optional:4/5 (+), 7/8 (-) |
Max Power Per Port | 30W; IEEE802.3af/at (This PoE extender is the PD machine, which itself will have a certain power consumption) |
Total PWR / Input Voltage | 30W/（IEEE802.3af/at） |
Power Consumption | Standby<4W, Full load<30W |
Power Supply | No |
Physical Parameter | |
Operation TEMP / Humidity | –20~+55°C;5%~90% RH Non condensing |
Storage TEMP / Humidity | -40~+80°C;5%~95% RH Non condensing |
Dimension (L*W*H) | 118*89*28mm |
Net /Gross Weight | <0.2kg / <0.25kg |
Installation | Desktop, wall mounted |
Certification & Warranty | |
Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP40 |
Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; |
Warranty | 3 years, lifelong maintenance. |
| Model | Description |
| ONV-PSE-PD3302 | Unmanaged PoE extender with 2*10/100/1000M RJ45 ports and 1*10/100/1000M uplink RJ45 port. PoE output port (2-3) can support IEEE 802.3af/at PoE standard. Uplink RJ45 port support 30W POE power input. |
| PACKING LIST | CONTENT | QTY | UNIT |
| 3-Port gigabit PoE extender | 1 | SET | |
| User Guide | 1 | PC | |
| Warranty Card | 1 | PC |
