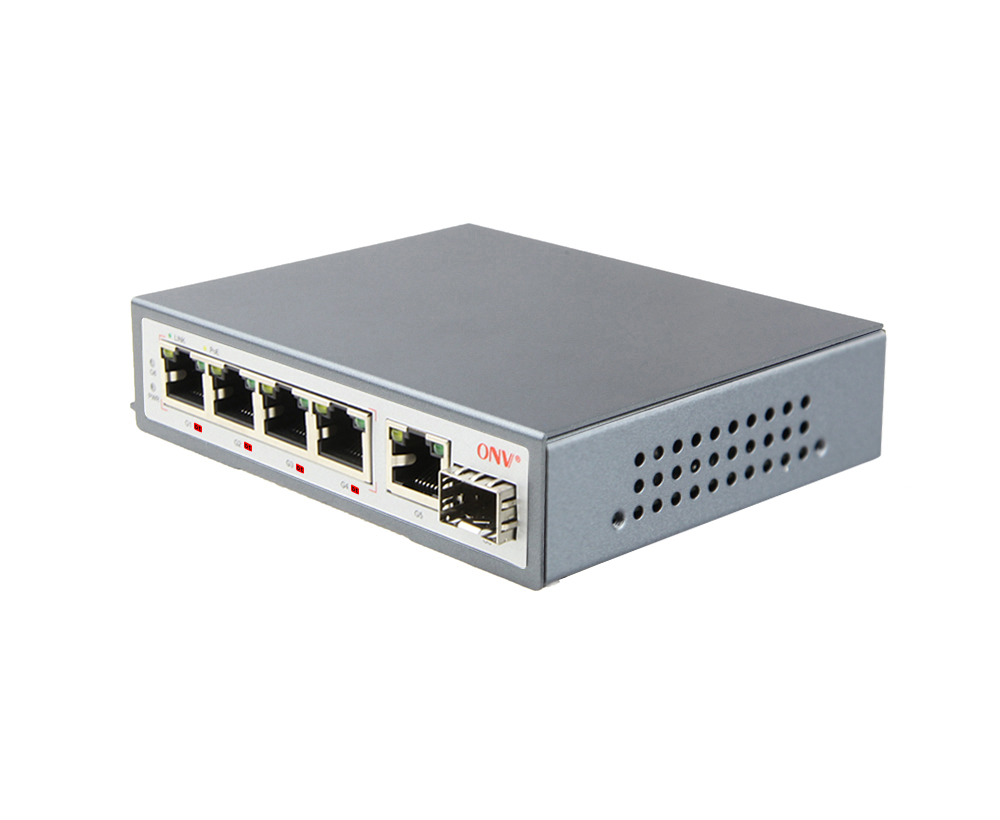

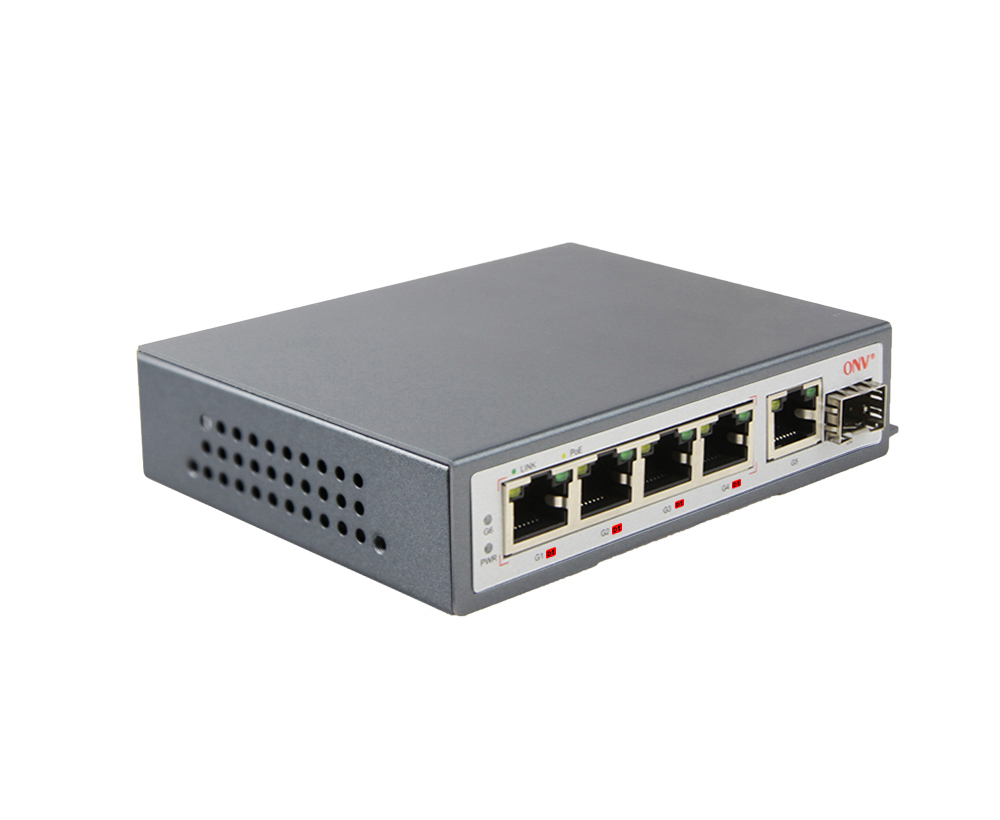

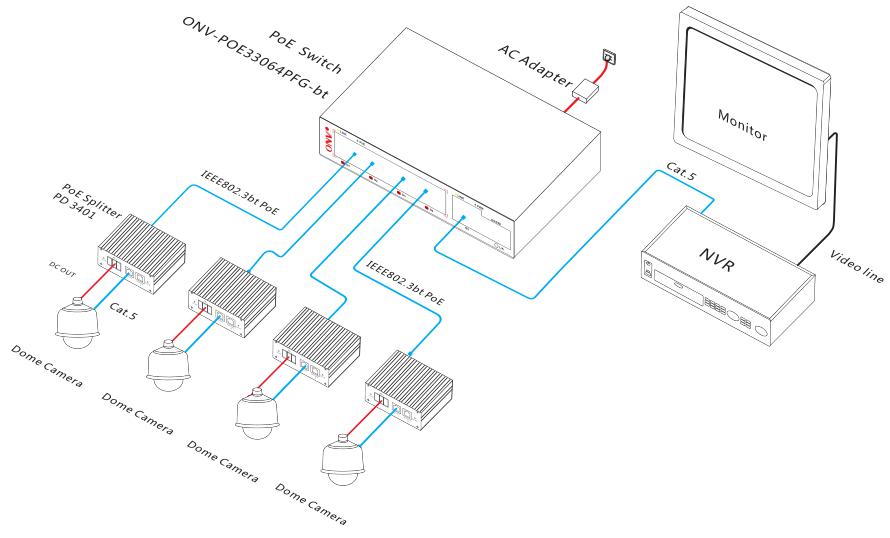

The ONV-POE33064PFG-bt is a gigabit unmanaged bt PoE fiber switch independently developed by ONV. It has 5*10/100/1000Base-T RJ45 ports and 1*1000M uplink SFP slot port. Port 1-4 can support 71W PoE super high power output and backward compatible with the IEEE802.3af/at PoE standard. Single-port PoE power is 95W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It provides stable and safe terminals for PTZ network domes, high-power wireless AP, high-power network multimedia speakers, and high-power POE lighting, etc. through a network cable to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, parks, shopping malls, scenic spots, hospitals,, factory dormitory and small and medium-sized enterprise.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Full gigabit access
◇ Gigabit RJ45 ports and SFP fiber port combination, high-speed high-bandwidth connection, to meet the networking needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Smart PoE power supply function
◇ 4*10/100/1000Base-T RJ45 ports can support bt PoE power supply, meeting the demand for super high power PoE power supply in various scenarios.
◇ The maximum output power of single-port POE is 95W, and the backwards compatibility IEEE802.3af/at PoE power supply standard automatically identifies PoE devices for power supply without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
◇ CCC,CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ Low power consumption, galvanized steel casing, No fan.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.

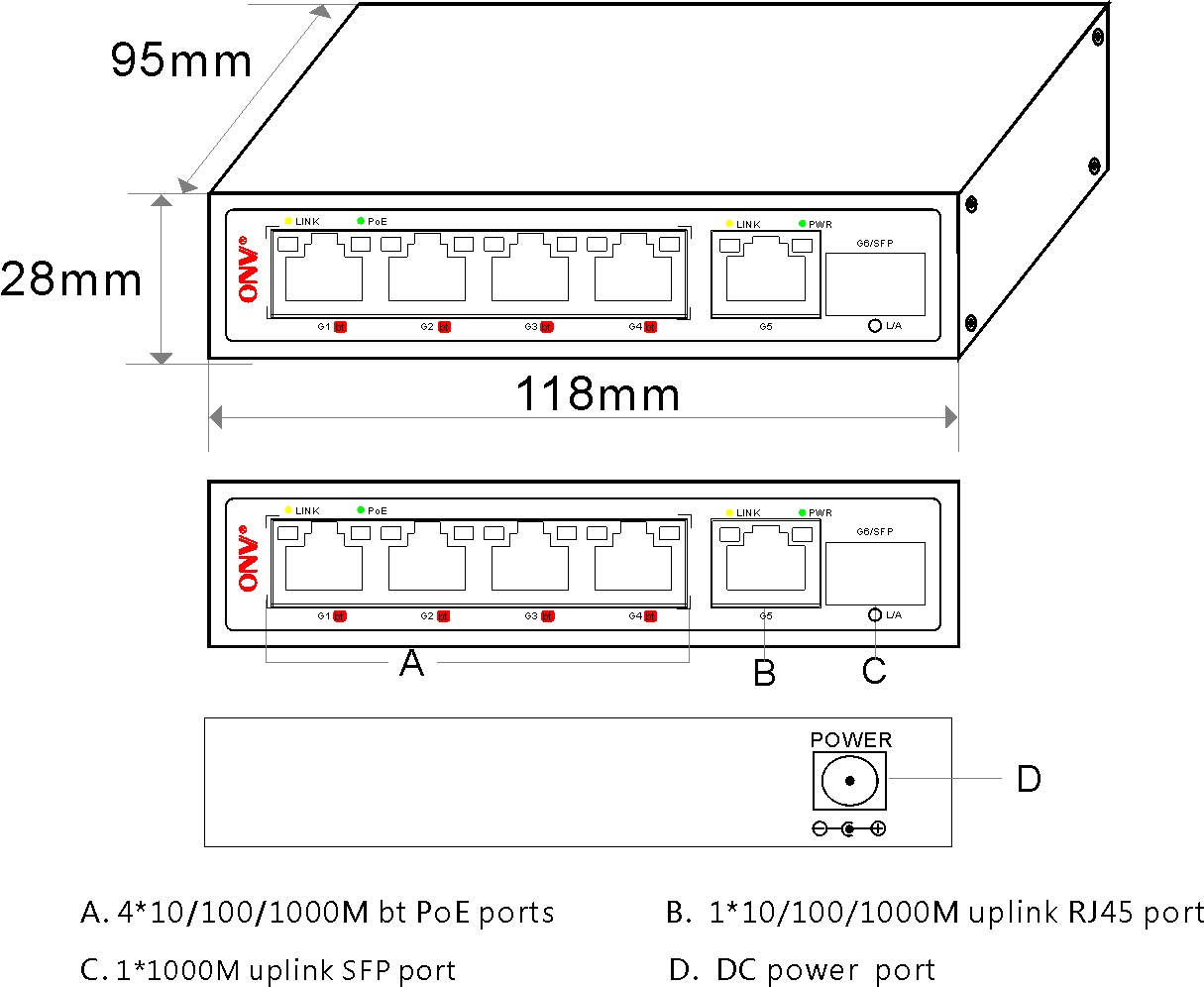

DIMENSION
Model | ONV-POE33064PF–bt | ONV-POE33064PFG–bt |
Interface Characteristics | ||
Fixed Port | 4*10/100/1000M bt PoE ports (Data /Power) 2*1000M uplink SFP ports (Data) | 4*10/100/1000M bt PoE ports (Data /Power) 1*10/100/1000M RJ45 port (Data) 1*1000M uplink SFP port (Data) |
Ethernet Port | 10/100/1000Base-T auto-sensing,full/half duplex MDI/MDI-X self-adaption | |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
SFP Slot Port | Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
Optical Cable/ Distance | Multi mode: 850nm / 0 ~ 500M, Single mode: 1310nm/ 0 ~ 40KM, 1550nm 0 ~ 120KM. | |
Chip Parameter | ||
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3u 1000Base-T IEEE802.3z 1000Base-X,IEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 12Gbps (Non-blocking) | |
Forwarding Rate@64byte | 8.93Mpps | |
MAC | 8K | |
Buffer Memory | 2M | |
Jumbo Frame | 9.2K | |
LED Indicator | Power: PWR (green), network: Link (yellow), PoE: PoE (green) | |
PoE & Power | ||
PoE Port | Port 1 to 4 @bt POE and backward compatible with IEEE802.3af/at @ POE | |
Power Supply Pin | Defaul 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-) | |
Max Power Per Port | 95W; IEEE802.3af/at/bt | |
Total PWR / Input Voltage | 250W / (DC48-57V) | |
Power Consumption | Standby<6W, Full Load<240W | |

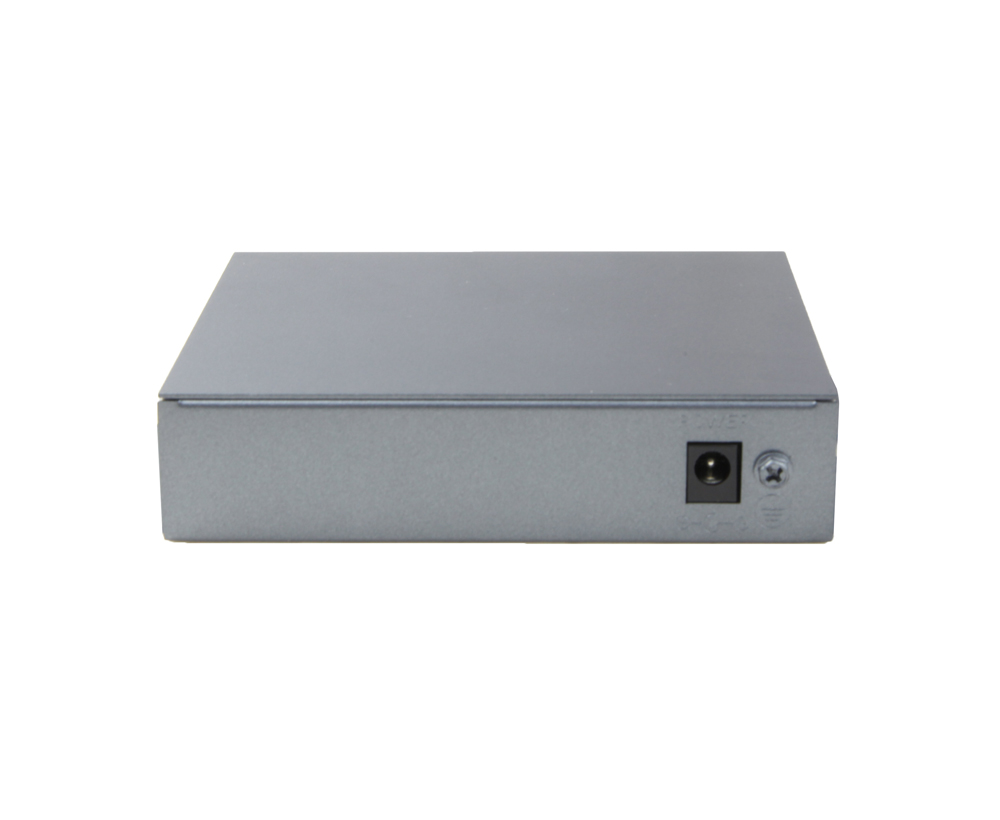

Input Voltage / Interface | DC48-57V/ DC5521 power supply terminal connected | |
Power Supply | External power adapter, AC100~240V 50-60Hz 4.1A | |
Physical Parameter | ||
Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing | |
Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing | |
Dimension (L*W*H) | 118*95*28mm | |
Net /Gross Weight | <0.5kg /<1.2kg | |
Installation | Desktop, wall-mounted | |
Certification & Warranty | ||
Lightning protection / protection level | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS | |
Warranty | 3 years, lifelong maintenance. | |
Model | Description | Configure Power Supply |
ONV-POE33064PF-bt | Unmanaged bt PoE switch with 4*10/100/1000M RJ45 ports and 2*1000M uplink SFP ports. Port 1-4 can support 71W super high power out and backward compatible with POE@IEEE802.3af/at. External power supply. | 250W |
ONV-POE33064PFG-bt | Unmanaged bt PoE switch with 5*10/100/1000M RJ45 ports and 1*1000M uplink SFP port. Port 1-4 can support 71W super high power out and backward compatible with POE@IEEE802.3af/at. External power supply. | 250W |
Note: bt PoE switch does not match the SFP module. | ||
PACKING LIST | CONTENT | QTY | UNIT |
6-port full gigabit bt PoE fiber switch | 1 | SET | |
Power Adapter+AC Power Cable | 1 | SET | |
Mounting Kits (Hanging Ear) | 1 | SET | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
