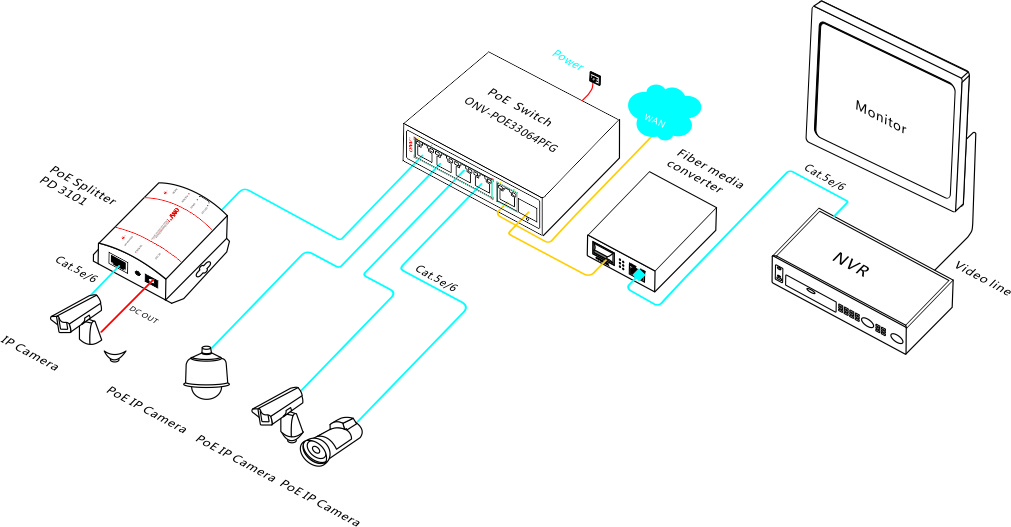

The ONV-POE33064PFG series is a full gigabit PoE fiber switch independently developed by ONV. It has 5*10/100/1000M RJ45 ports and 1*1000M SFP solt port. Port 1-4 can support IEEE802.3af/at standard PoE. single port PoE power reaches 30W, and the maximum PoE output power is 65W (at-110W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Full gigabit access, gigabit (TP/SFP) combo port uplink
◇ All series supports “gigabit Ethernet port and gigabit SFP fiber port ” combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Intelligent PoE power supply function
◇ 4*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable, easy to operate
◇ CCC,CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ Low power consumption, no fan mute design, galvanized steel metal casing.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.

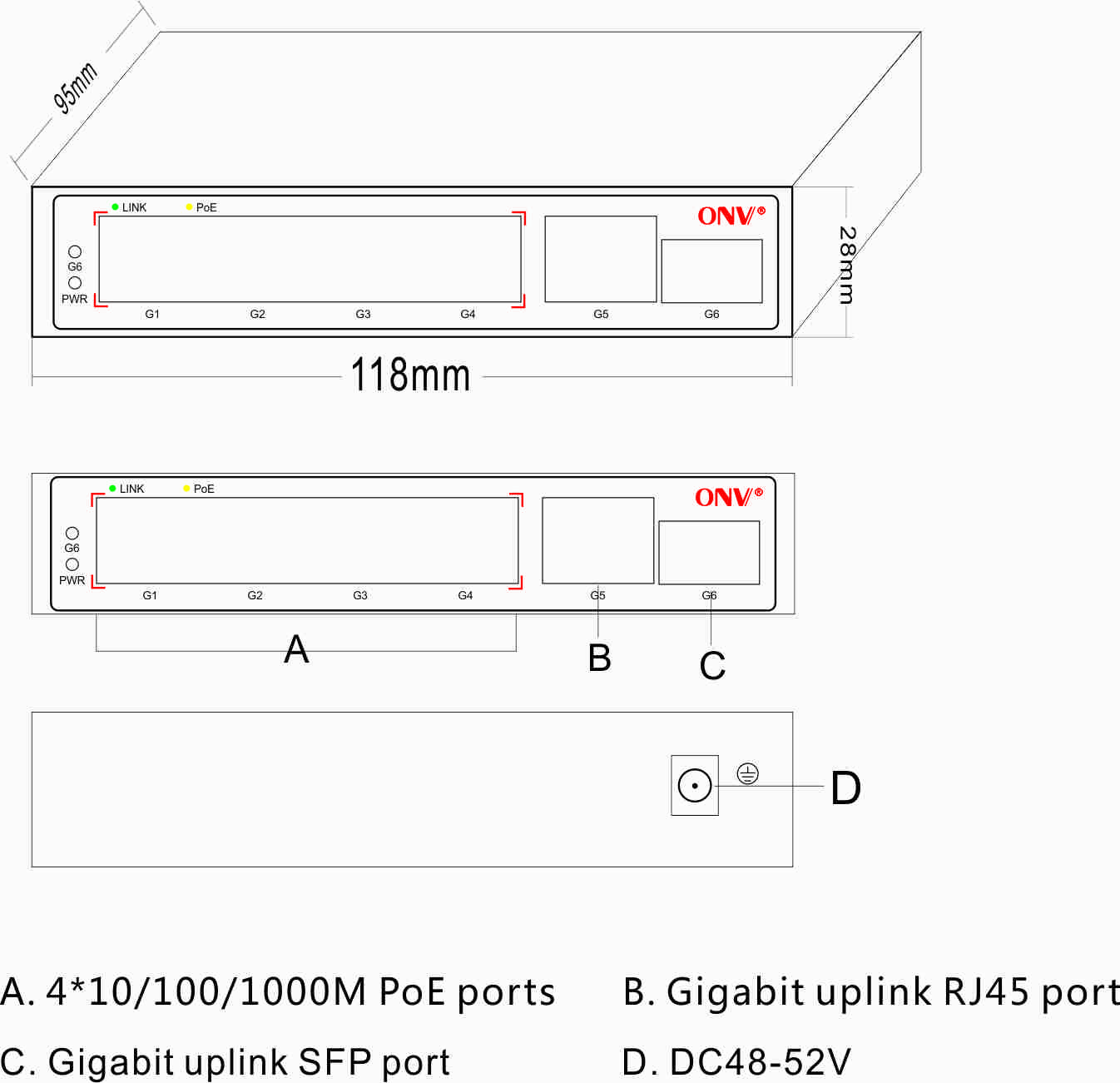

DIMENSION
Model | ONV-POE33064PFG | ONV-POE33064PFG-at |
Interface Characteristics | ||
Fixed Port | 4*10/100/1000Base-T PoE ports(Data/Power) 1*10/100/1000Base-T uplink RJ45 port (Data) 1*1000Base-X SFP fiber port slots (Data) | |
Ethernet Port | Port 1-5 can support 10/100/1000Base-T,auto-sensing, full/half duplex MDI/MDI-X | |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
SFP Slot Port | Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
Optical Cable | Multi mode: 850nm 0 ~ 550M, Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. | |
Chip Parameter | ||
Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 12Gbps | |
Forwarding Rate@64byte | 8.93Mpps | |
MAC | 2K | |
Buffer Memory | 2M | |
Jumbo Frame | 10K | |
LED Indicator | Power: PWR (green), network: Link(yellow), POE: PoE (green) | |
Reset Switch | Yes, One-button factory reset | |
PoE & Power | ||
PoE Port | Port 1 to 4 IEEE802.3af/at @ POE | |
Power Supply Pin | Defaul 1/2 (+), 3/6 (-), optional 4/5 (+), 7/8 (-) | |
Max Power Per Port | 30W; IEEE802.3af/at | |
Total PWR / Input Voltage | 65W/(DC52V) | 110W/(DC52V) |
Power Consumption | Standby<5W, Full load<65W | Standby<6W, Full load<110W |
Power Supply | External power adapter, AC100~240V 50-60Hz 1A | External power adapter, AC100~240V 50-60Hz 2A |
Physical Parameter | ||
Operation TEMP / Humidity | –20~+55°C;5%~90% RH Non condensing | |
Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing | |
Dimension (L*W*H) | 118*95*28mm | |
Net /Gross Weight | <0.35kg / <1.0kg | |
Installation | Desktop, wall mounted | |
Certification & Warranty | ||
Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 | |
Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; | |
Warranty | 3 years , lifelong maintenance. | |
| Model | Description |
| ONV-POE33064PFG | Unmanaged PoE fiber switch with 5*10/100/1000M RJ45 ports and 1*1000M uplink SFP fiber slot port, port 1-4 can support IEEE802.3af/at PoE standard, External 65W power supply. |
| ONV-POE33064PFG-at | Unmanaged PoE fiber switch with 5*10/100/1000M RJ45 ports and 1*1000M uplink SFP fiber slot port, port 1-4 can support IEEE802.3af/at PoE standard, External 110W power supply. |
| PACKING LIST | CONTENT | QTY | UNIT |
| 6-port full gigabit PoE fiber switch | 1 | SET | |
| AC power cable+ power adapter | 1 | SET | |
| Mounting Kits (Hanging Ear ) | 1 | SET | |
| User Guide | 1 | PC | |
| Warranty Card | 1 | PC |
