The ONV-POE33032PL is a gigabit unmanaged PoE switch independently developed by ONV. It has 3*10/100/1000M RJ45 ports. Port 1-2 can support IEEE802.3af/at standard PoE power supply, and single port PoE power reaches 30W. Adding a 10M/250-meter long-distance functional switch to the power supply port breaks through the twisted-pair transmission limit of 100 meters, effectively solving network transmission within 200 meters. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Full Gigabit access, full wire speed forwarding
◇ Full wire-speed high-speed forwarding, which facilitates flexible networking of users and meets networking requirements in various scenarios
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Smart PoE power supply function

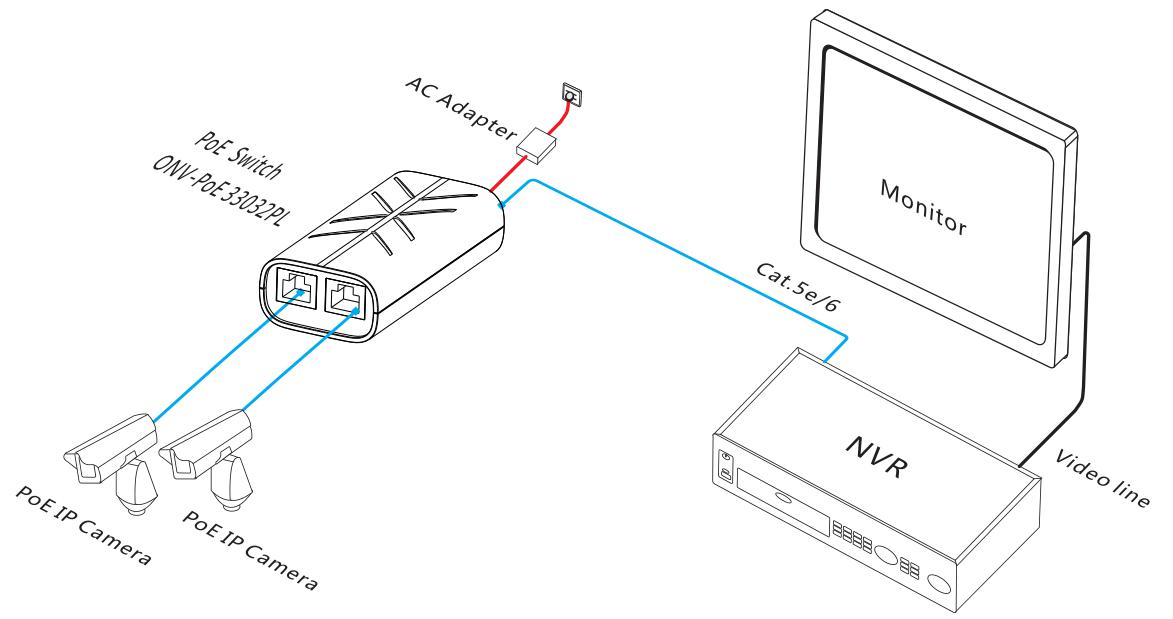

◇ 2*10/100/1000Base-T RJ45 ports support PoE, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
◇ CCC,CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.

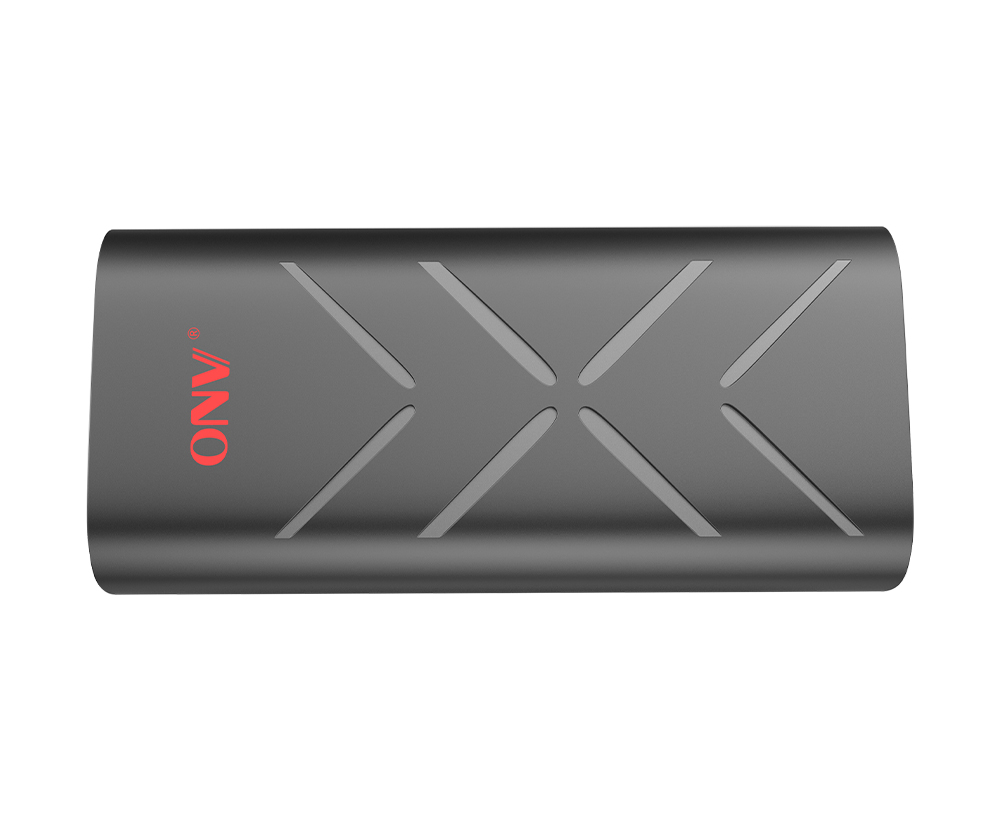

◇ Low power consumption, fanless silent design, advanced ABS and PC flame-retardant plastic shell is exquisite and beautiful.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

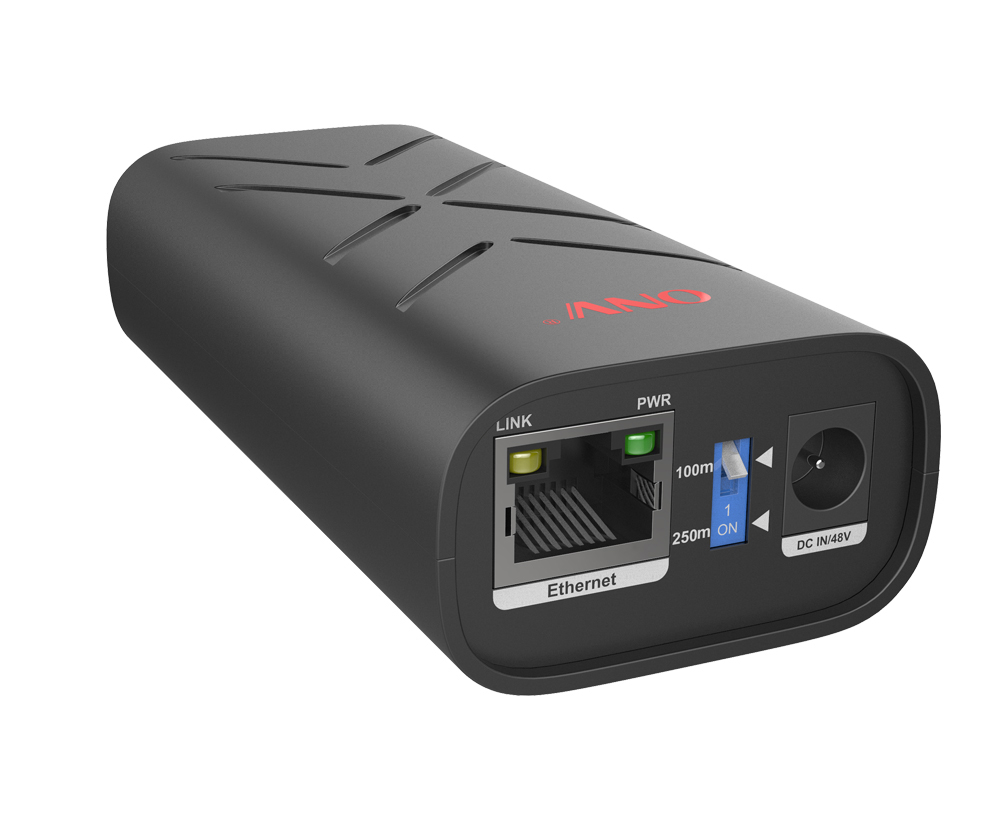

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR,Link, PoE.

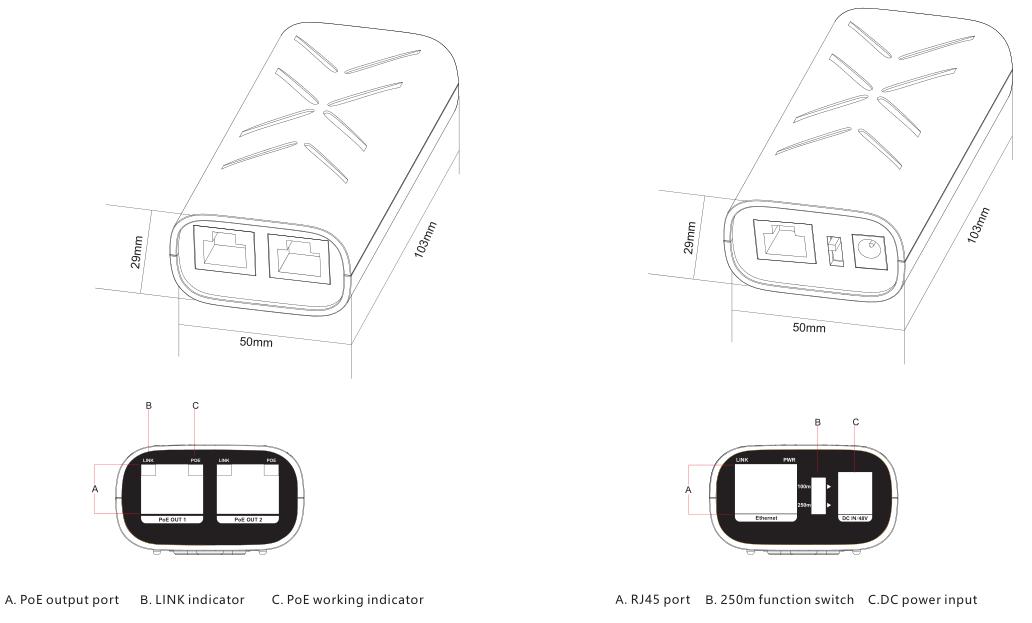

DIMENSION
Model | ONV-POE33032PL |
Interface Characteristics | |
Fixed Port | 2*10/100/1000Base-T PoE ports (Data/Power) 1*10/100/1000Base-T uplink RJ45 port (Data) |
Ethernet Port | Port 1-3 support 10/100/1000Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption |
Twisted Pair Transmission | 10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or later UTP(≤100 meter) |

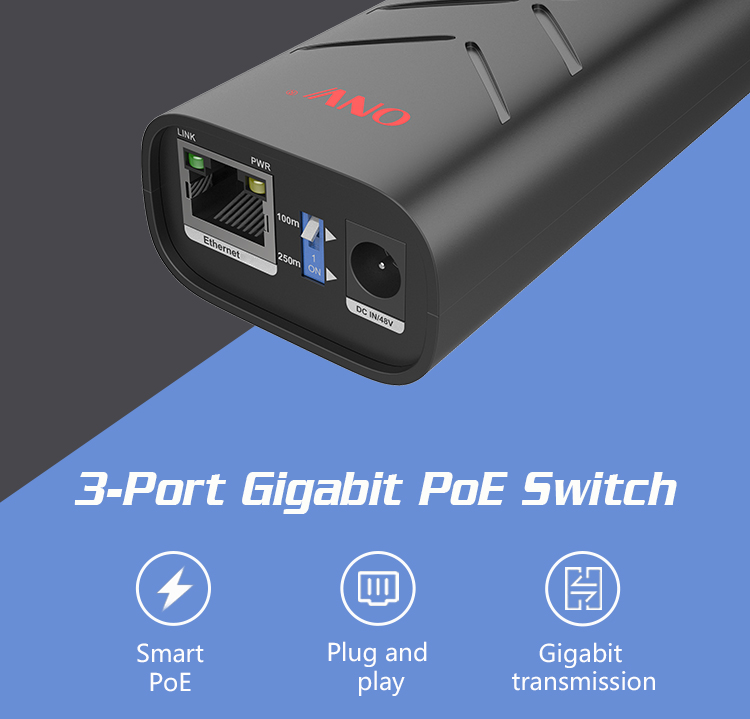

Functional Switch
| 100m: 100m transmission, default |
250m: 250m transmission, default”OFF”, enable “ON” | |
Chip Parameter | |
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3x |
Forwarding Mode | Store and Forward(Full Wire Speed) |
Switching Capacity | 12Gbps(non-blocking) |
Forwarding Rate@64byte | 4.46Mpps |
MAC | 2K |
Buffer Memory | 2M |
Jumbo Frame | 9.2K |
LED Indicator | Power: PWR (green), Data: Link(yellow), POE: PoE (green) |
PoE & Power | |
PoE Port | Port 1 to 2 IEEE802.3af/at @ POE |
Power Supply Pin | Default 1/2 (+), 3/6 (-), Optional 4/5(+), 7/8(-) |
Max Power Per Port | 30W; IEEE802.3af/at |
Total PWR / Input Voltage | 65W (52V) |
Power Consumption | Standby<4W,Full load<65W |
Input Voltage and Interface | DC power supply, DC48-57V, DC5521 power terminal connection |
Power Supply | external power adapter AC 100 ~ 240V 50-60Hz 1.1A |
Physical Parameter | |
Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing |
Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing |

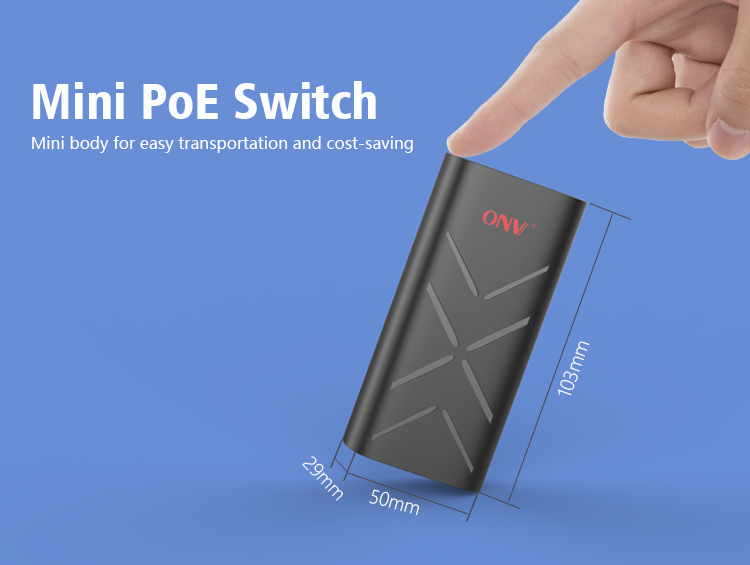

Dimension (L*W*H) | 103*50*29mm |
Net /Gross Weight | <0.09kg /<0.18kg |
Installation | Desktop, wall mounted |
Certification & Warranty | |
Lightning protection / protection level | Port lightning protection: 4KV 8/20us, Protection level: IP30 |
Certification | CCC,CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS |
Warranty | 3 years, lifelong maintenance. |
Model | Description | Power Adapter |
ONV-POE33032PL | Unmanaged PoE switch with 2*10/100/1000M PoE ports and 1*10/100/1000M uplink RJ45 port, Port 1–2 can support IEEE802.3af/at PoE standard. External power adapter. | 65W |
PACKING LIST | CONTENT | QTY | UNIT |
3-port Gigabit PoE switch | 1 | SET | |
Power Supply Kit (AC Power Cable and Power Adapter) | 1 | SET | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
