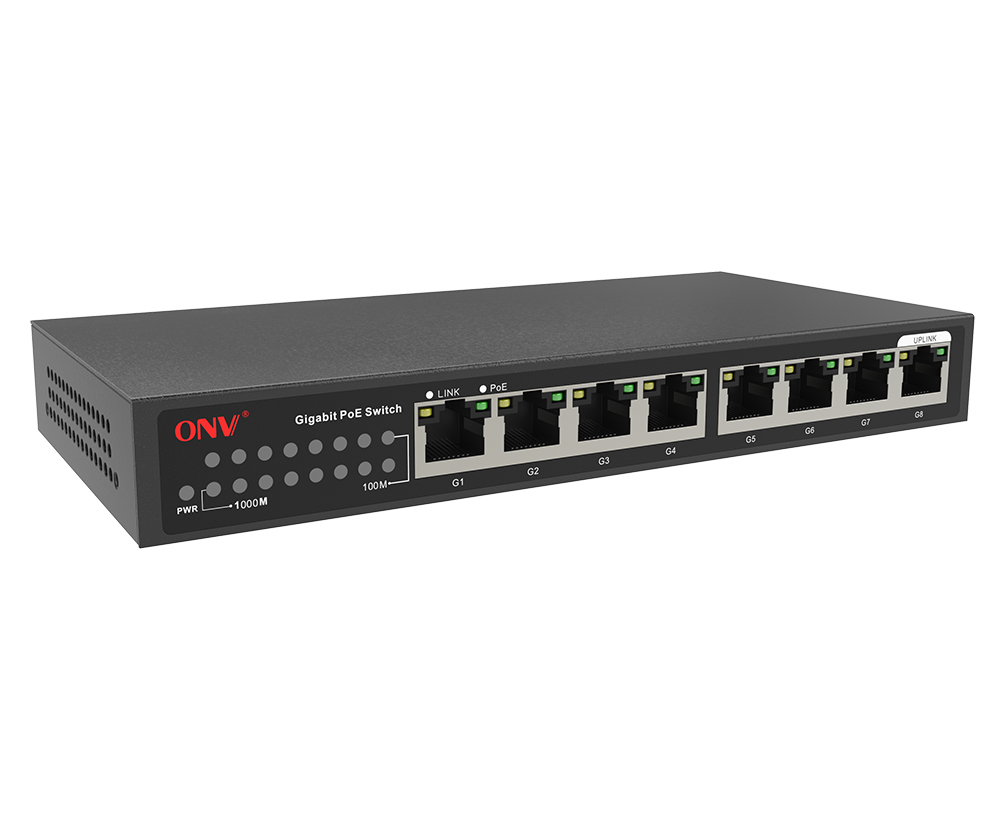

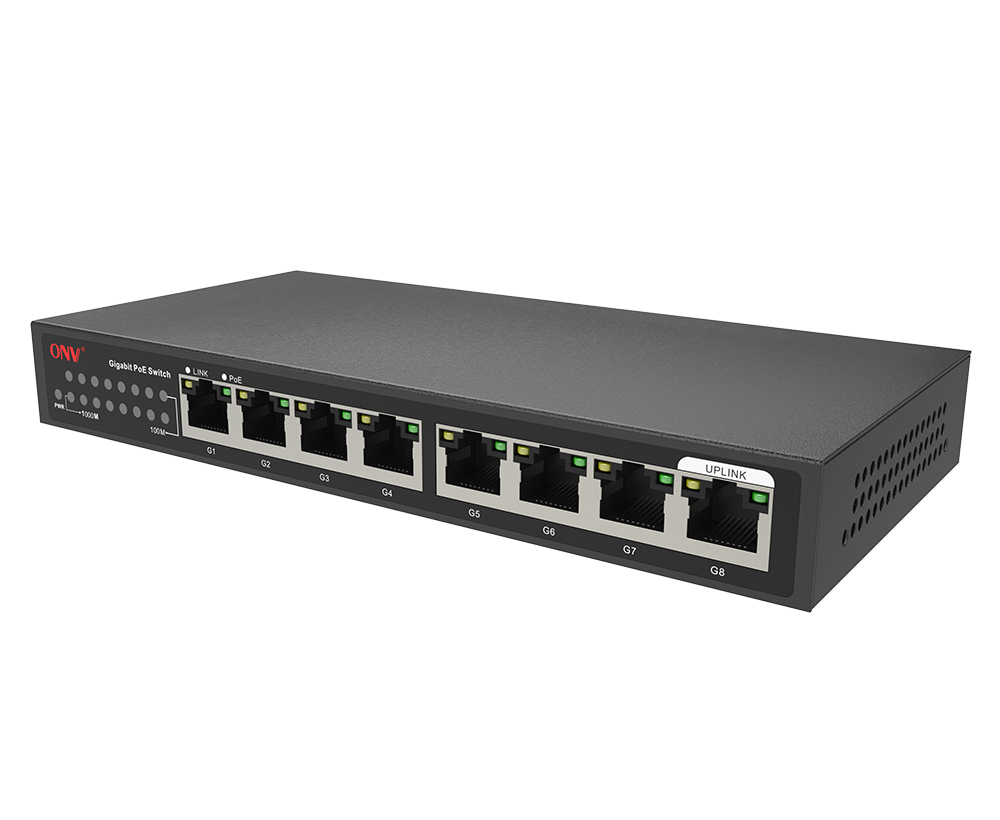

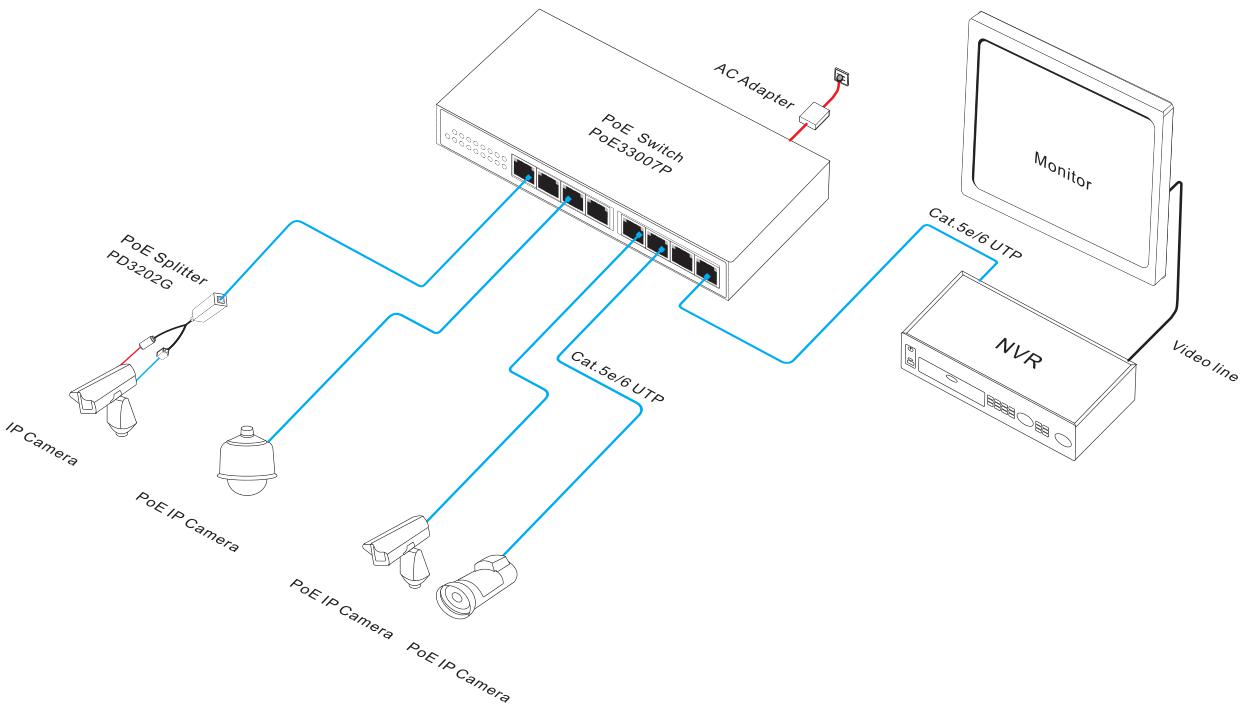

The ONV-POE33007P is a full gigabit unmanaged PoE switch independently developed by ONV. It has 8*10/100/1000M RJ45 ports. Port 1-7 can support IEEE 802.3af/at standard PoE power supply.single port PoE power reaches 30W, and the maximum PoE output power is 110W(at-250W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

Full gigabit access，full-line speed forwarding

◇ All series support all-line high-speed forwarding,user-flexibly flexible networking, to meet the needs of various scenarios networking;

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Intelligent PoE power supply

◇ 7*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Stable and reliable, easy to operate

◇ CCC,CE, FCC, RoHS.

◇ Plug and play, no configuration, simple and convenient.

◇ Low power consumption, galvanized steel casing, No fan.

◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.

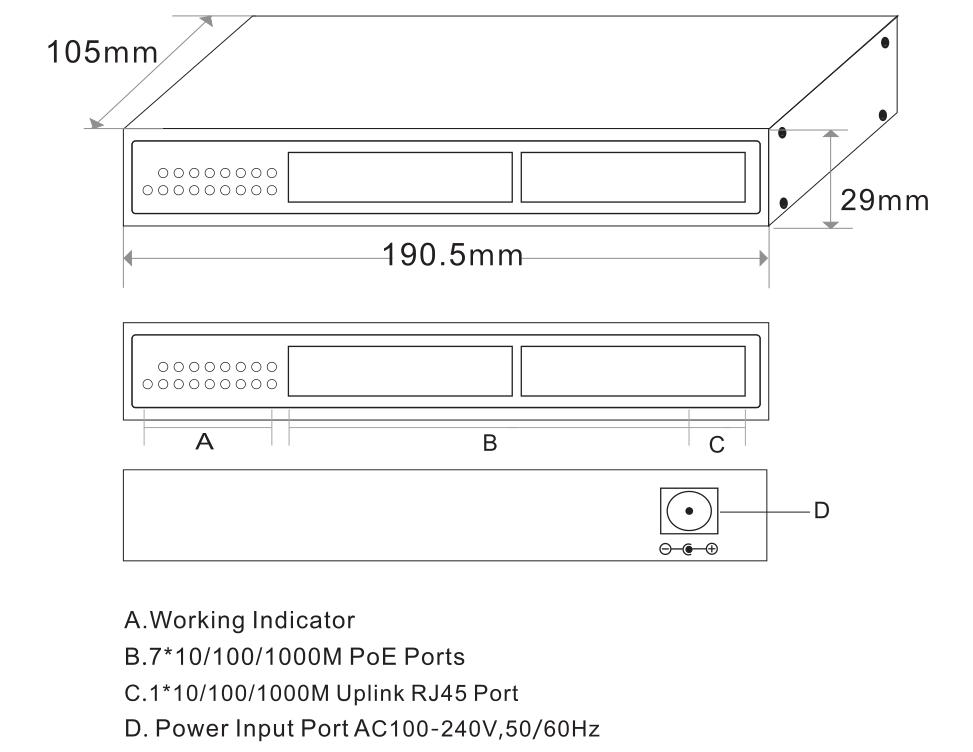

DIMENSION

ONV-POE33007P Datasheet
