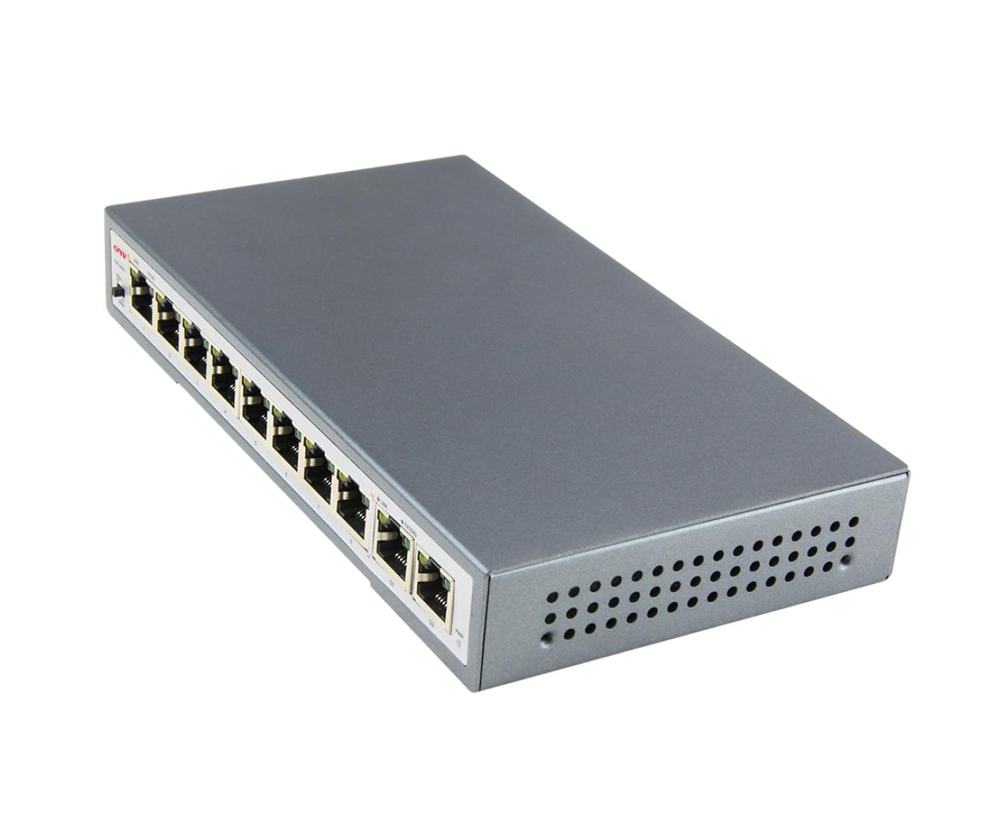

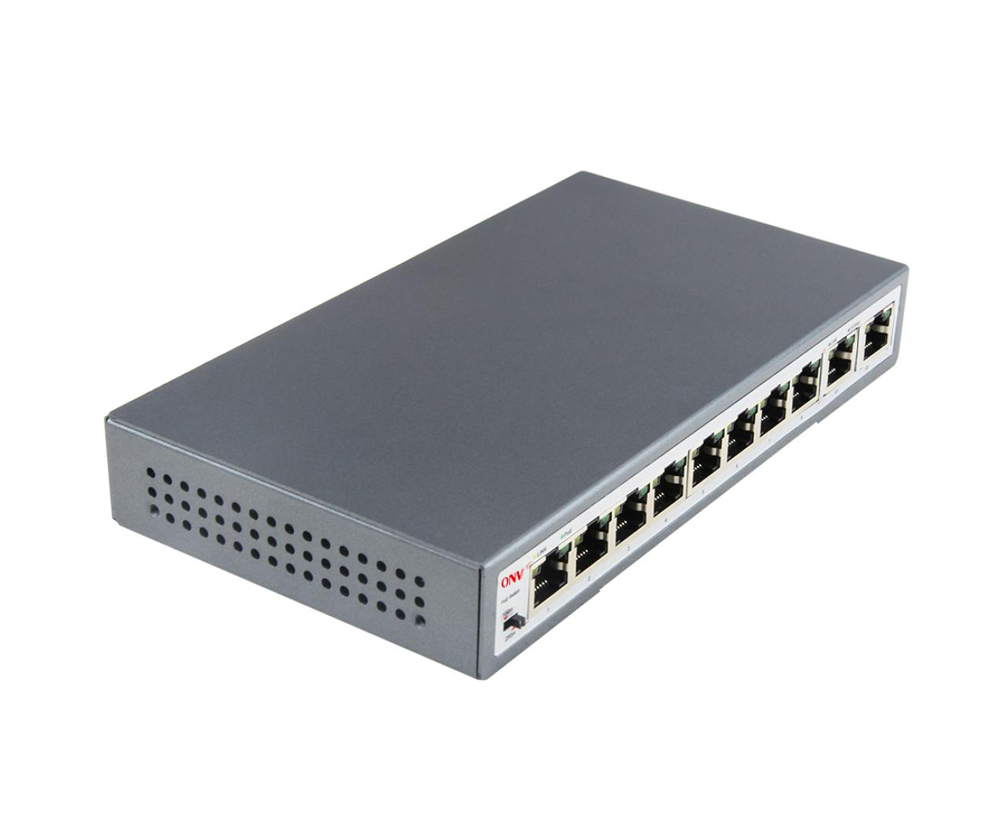

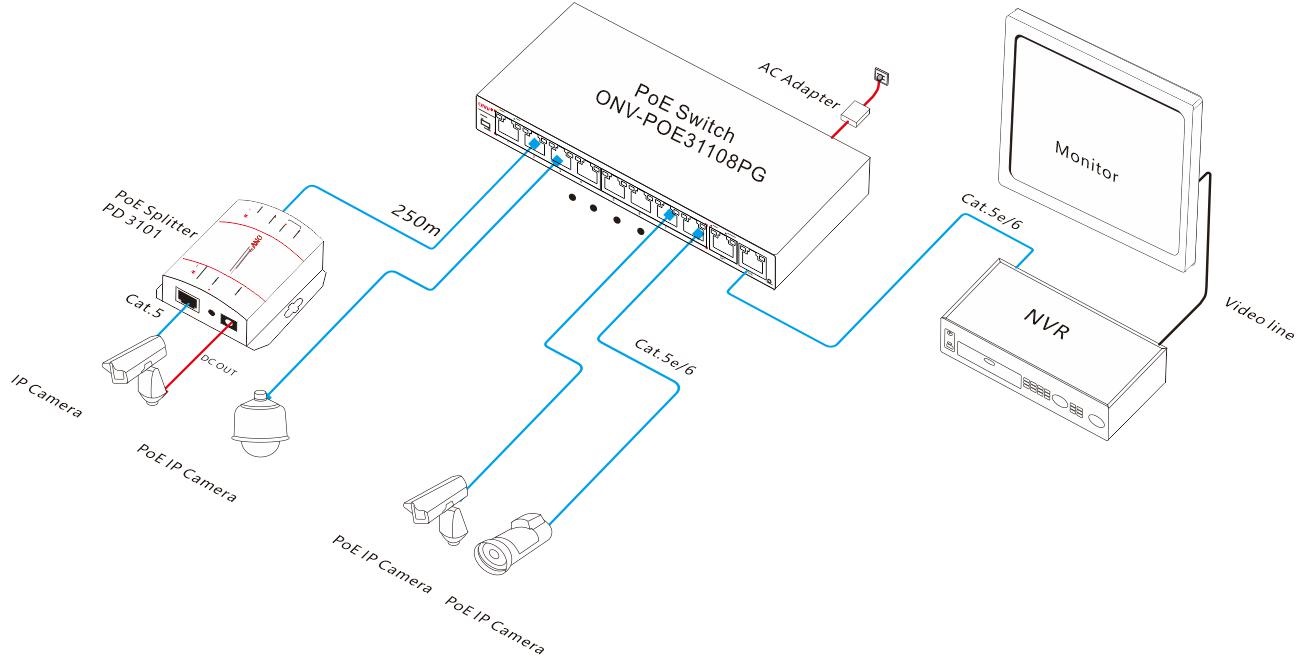

The ONV-POE31108PG is an unmanaged PoE switch independently developed by ONV. It has 8*10/100M PoE ports and 2*10/100/1000M RJ45 ports. Port 1-8 can support IEEE 802.3af/at standard PoE power supply. single port PoE power reaches 30W, and the maximum PoE output power is 110W (at-250W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.
Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
10/100Mbps access, gigabit RJ45 port uplink
◇ A combination of 10/100M Ethernet port and Gigabit RJ45 port to meet the networking requirements of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
Intelligent PoE power supply
◇ 8*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Innovative functional switch
◇ Long-distance switch: When opening, the speed of port 1-8 is 10M, which can break the limit of 100m transmission of twisted pair, and the transmission distance reaches 250m, which can solve the problem of poor transmission caused by line aging.
Stable and reliable, easy to operate
◇ CCC,CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ Low power consumption and low noise, fan-less design, metal shell
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.

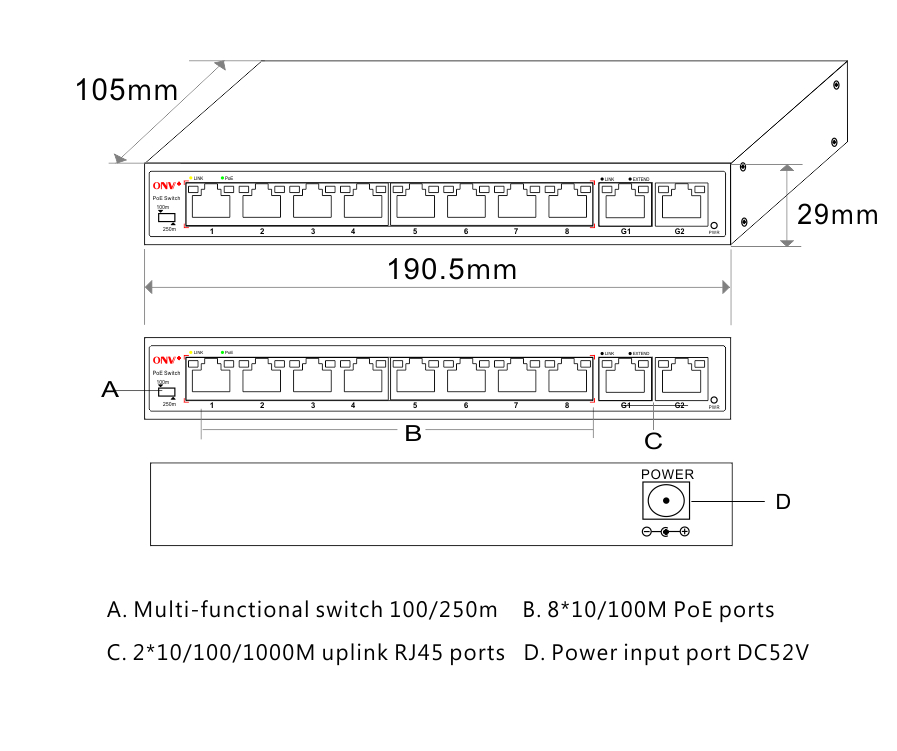

DIMENSION
| Model | ONV-POE31108PG | ONV-POE31108PG-at |
| Interface Characteristics | ||
| Fixed Port | 8*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000M uplink RJ45 ports (Data) | |
| Ethernet Port | Port 1-8 can support 10/100Base–T(X) auto-sensing, port 9-10 can support 10/100/1000Base–T auto-sensing, full/half duplex MDI/MDI-X self-adaption | |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤250 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T : Cat5e or later UTP(≤100 meter) | |
| Chip Parameter | ||
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x | |
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 11.8Gbps | |
| Forwarding Rate@64byte | 4.17Mpps | |
| MAC | 2K | |
| Buffer Memory | 2M | |
| LED Indicator | Power: PWR (green); Data: Link1 (yellow); POE: PoE (green); Function switch: EXTEND(green) | |
| PoE & Power | ||
| PoE Port | Port 1 to 8 IEEE802.3af/at @ POE | |
| Power Supply Pin | Default 1/2(+), 3/6(-),optional 4/5(+), 7/8(-) | |
| Max Power Per Port | 30W; IEEE802.3af/at | |
| Total PWR / Input Voltage | 110W/(DC52V) | 250W/(DC52V) |
| Power Consumption | Standby<5W, Full load<110W | Standby<6W, Full load<240W |
| Power Supply | External power adapter AC100~240V 50-60Hz 2.0A | External power adapter AC100~240V 50-60Hz 4.1A |
| Physical Parameter | ||
| Operation TEMP / Humidity | –20~+55°C;5%~90% RH Non condensing | |
| Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing | |
| Dimension (L*W*H) | 191.5*105*29mm | |
| Net /Gross Weight | <0.6kg / <1.5kg | |
| Installation | Desktop, wall-mounted | |
| Certification & Warranty | ||
| Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 | |
| Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; | |
| Warranty | 3 years, lifelong maintenance. | |
| Model | Description |
| ONV-POE31108PG | Unmanaged PoE switch with 8*10/100M PoE port and 2*10/100/1000M uplink RJ45 ports. Port 1-8 can support IEEE802.3af/at PoE standard. Adjust function switch, port 1-8 can support VLAN isolation and 10M/250m transmission. External 110W power supply. |
| ONV-POE31108PG-at | Unmanaged PoE switch with 8*10/100M PoE port and 2*10/100/1000M uplink RJ45 ports. Port 1-8 can support IEEE802.3af/at PoE standard. Adjust function switch, port 1-8 can support VLAN isolation and 10M/250m transmission. External 250W power supply. |
| PACKING LIST | CONTENT | QTY | UNIT |
| 10-Port gigabit uplink PoE switch | 1 | SET | |
| AC Power Cable+ Power Adapter | 1 | SET | |
| Mounting Kits | 1 | SET | |
| User Guide | 1 | PC | |
| Warranty Card | 1 | PC |
