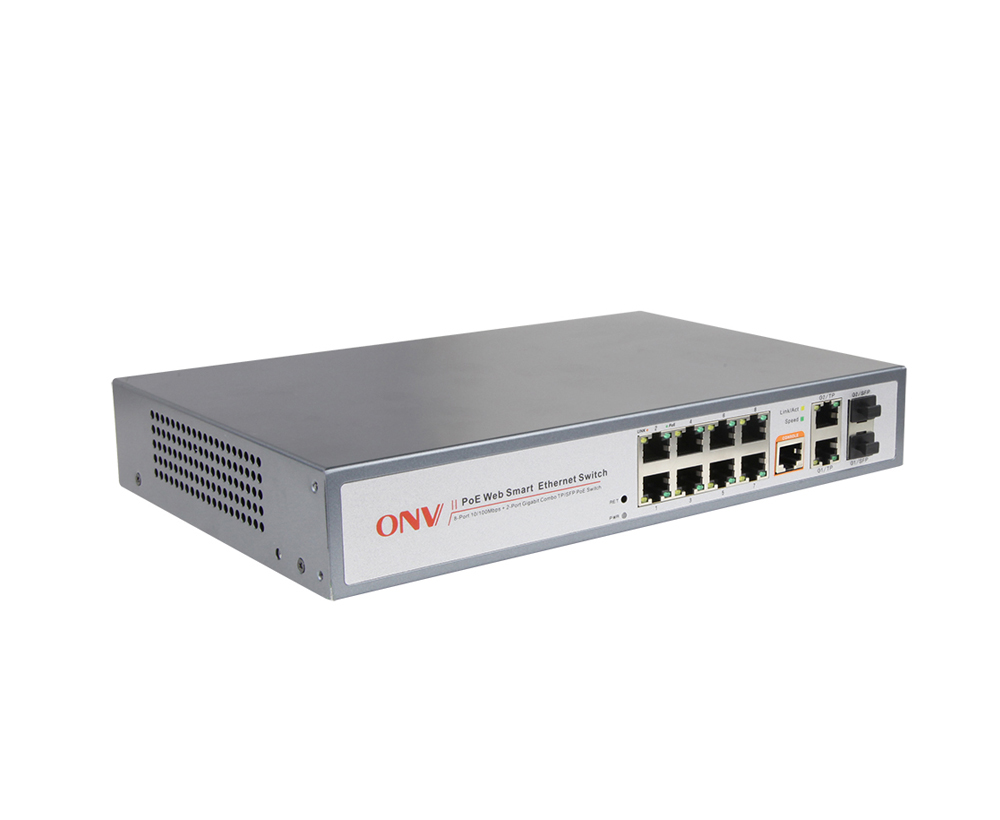

The ONV-POE31108PFM series is a Gigabit uplink managed PoE fiber switch independently developed by ONV. It has 8*10/100M RJ45 ports and 2*Gigabit (TP/SFP) combo ports , Port 1-8 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 130W(at-250W). and each port can realize line-speed forwarding.
The POE31108PFM series adopts a new generation of high-performance hardware and software platforms to provide flexible and cost-effective 100Mbps access and uplink ports. It supports complete security protection mechanisms, complete ACL/QoS policies, and flexible VLAN functions, and is easy to manage and maintain. As a PoE power supply device, it can automatically detect and identify the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, parks, attractions, supermarkets, Factory quarters and small and medium-sized enterprises form a cost-effective network.
FEATURE
100Mbps access, Gigabit (TP/SFP) combo port uplink
◇ All series supports “10/100M Ethernet port and Gigabit TP/SFP port ” combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Intelligent PoE power supply function
◇ 8*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
◇ PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
Strong business processing capability
◇ IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration.
◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.
◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
◇ IGMP V1/V2 and IGMP Snooping.
◇ ERPS/STP/RSTP/MSTP.
◇ Static and dynamic aggregation.
Security
◇ 802.1X authentication.
◇ Port isolation,Storm control.
◇ IP-MAC-VLAN-Port binding.
Stable and reliable
◇ CCC,CE, FCC, RoHS.
◇ Low power consumption, no fan mute design, galvanized steel metal casing.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.
Easy operation and maintenance management
◇ Web management, CLI command line (Console, Telnet).
◇ HTTPS, SSLV3, and SSHV1/V2.
◇ RMON, system log, LLDP, and port traffic statistics.
◇ CPU monitoring, memory monitoring.

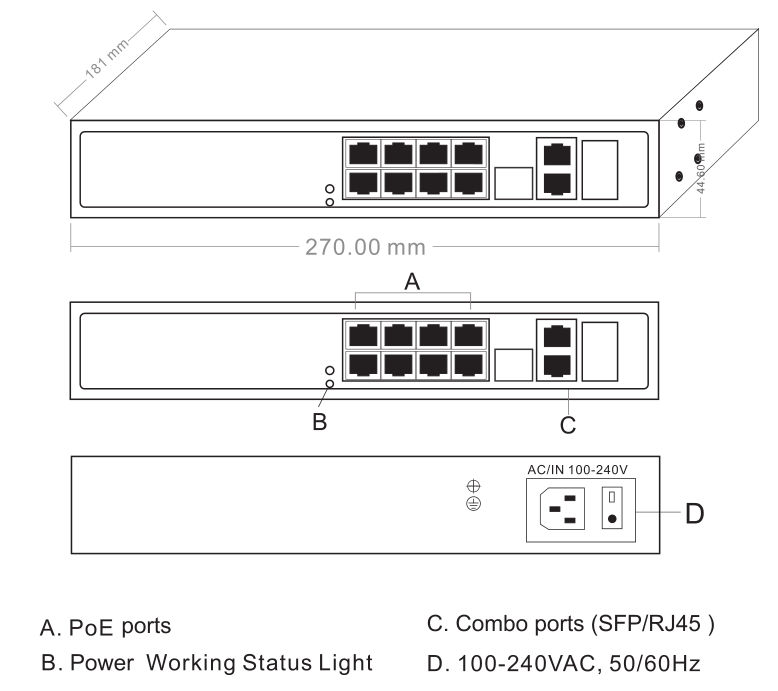

DIMENSION
| Model | ONV-POE31108PFM | ONV-POE31108PFM-at |
| Interface Characteristics | ||
| Fixed Port | 8*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) 2*1000M uplink SFP fiber slot ports (Data) | |
| Ethernet Port | Port 1-8 support 10/100Base-T(X) auto-sensing, Port 9-10 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption. | |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
| SFP Slot Port | Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
| Optical Cable | Multi mode: 850nm 0 ~ 550M, Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. | |
| Chip Parameter | ||
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3x | |
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 64Gbps (Non-blocking) | |
| Forwarding Rate@64byte | 4.17Mpps | |
| MAC | 16K | |
| Buffer Memory | 4M | |
| Jumbo Frame | 10K | |
| LED Indicator | Power:PWR(green), data:Link,Link/Act (yellow), PoE: PoE (green); speed: speed (green) | |
| Reset Switch | Yes, One-button factory reset | |
| PoE & Power | ||
| PoE Port | Port 1 to 8 IEEE802.3af/at @ POE | |
| PoE Management | PoE working status Delay start of power supply Scheduling of PoE operation and time Distribution for PoE output power of each port | |
| Power Supply Pin | Default 1/2(+),3/6(-), Optional 4/5(+),7/8(-) | |
| Max Power Per Port | 30W; IEEE802.3af/at | |
| Total PWR / Input Voltage | 130W /(AC100-240V) | 250W/ (AC100-240V) |
| Power Consumption | Standby<6W, Full load<130W | Standby<6W, Full load<250W |
| Power Supply | Built in power supply, AC100~240V 50-60Hz 2.3A | Built in power supply, AC100~240V 50-60Hz 4.1A |
| Physical Parameter | ||
| Operation TEMP / Humidity | –20~+55°C;5%~90% RH Non condensing | |
| Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing | |
| Dimension (L*W*H) | 270*181*44.5mm | |
| Net /Gross Weight | <2.8kg /<3.5kg | |
| Installation | Desktop type ,wall mounted,19 inch 1U cabinet installation | |
| Certification & Warranty | ||
| Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 | |
| Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; | |
| Warranty | 3 years , lifelong maintenance. | |
| Network Management Features | ||
| Interface | IEEE802.3X (Full duplex) Broadcast storm control based on port speed Speed limit of the message flow in the access port. The minimum particle size is 64Kbps. | |
| VLAN | 4K VLAN based on port, IEEE802.1q QinQ configuration,VLAN based on protocol | |
| Port Aggregation | LACP, Manual aggregation Support the largest 5 aggregation groups, each aggregation group supports 8 ports. | |
| Spanning Tree | STP(IEEE802.1d), RSTP(IEEE802.1w), MSTP(IEEE802.1s) | |
| Multicast | IGMP Snooping v1/v2/v3, Max 64 multicast groups Fast log out, MLD Snooping v1/v2, Multicast VLAN | |
| Image | Bi-directional traffic mirroring supporting the basic port | |
| QoS | Diff-Serv QoS 8*Output queues of each port 802.1p/DSCP priority mapping Queue Scheduling Algorithm (SP,WRR,SP+WRR) Priority Mark/Remark | |
| ACL | L2-L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range and VLAN etc. Port-based Issuing ACL. | |
| Security | Port isolation Broadcast storm control Port+MAC binding, IP+MAC+port binding | |
| DHCP | DHCP Relay, DHCP Client, DHCP Snooping | |
| Management | NTP Login Record SNMP V1/V2C/V3 One-key recovery Web Management (HTTPS) | |
| Model | Description |
| ONV-POE31108PFM | L2 managed PoE fiber switch with 8* 10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports and 2*100/1000M SFP fiber slot ports , Port 1-8 can support IEEE 802.3af/at PoE standard, Built-in 130W power supply. Support 1U/19 inch rack installation. |
| ONV-POE31108PFM-at | L2 managed PoE fiber switch with 8* 10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports and 2*100/1000M SFP fiber slot ports , Port 1-8 can support IEEE 802.3af/at PoE standard, Built-in 250W power supply. Support 1U/19 inch rack installation. |
| Note: PoE switch does not match SFP module by default. | |
| PACKING LIST | CONTENT | QTY | UNIT |
| 10-Port gigabit uplink managed PoE switch | 1 | SET | |
| AC Power Cable | 1 | PC | |
| Mounting Kits | 1 | SET | |
| User Guide | 1 | PC | |
| Warranty Card | 1 | PC |
