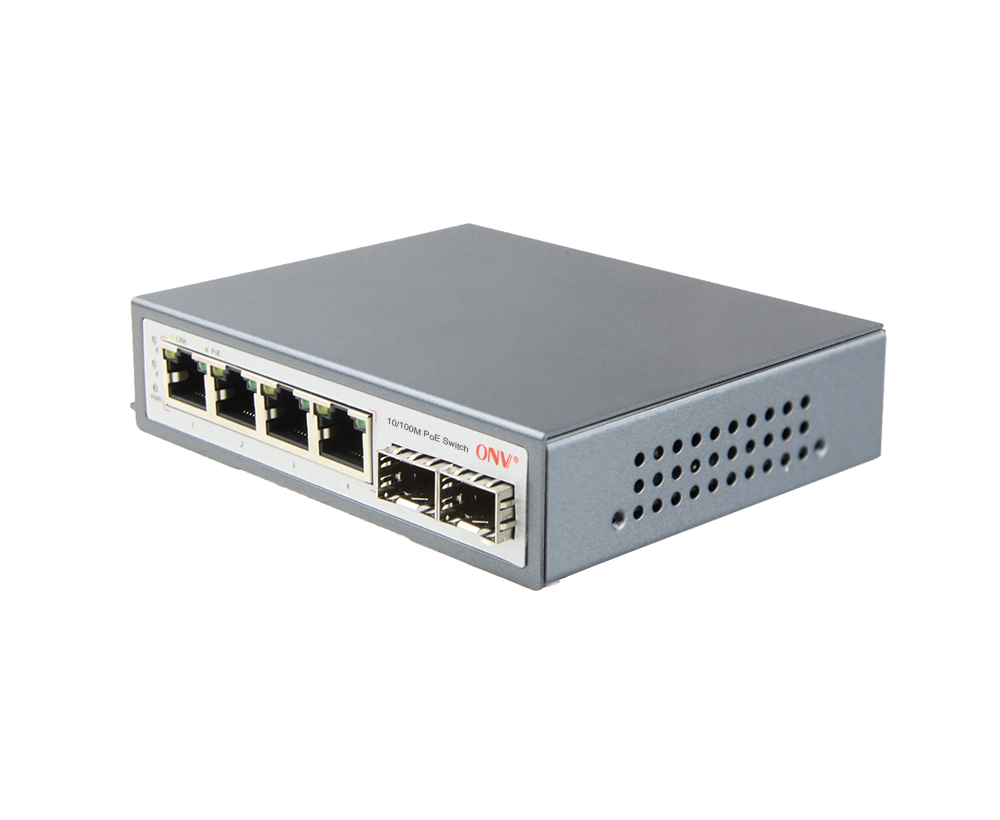

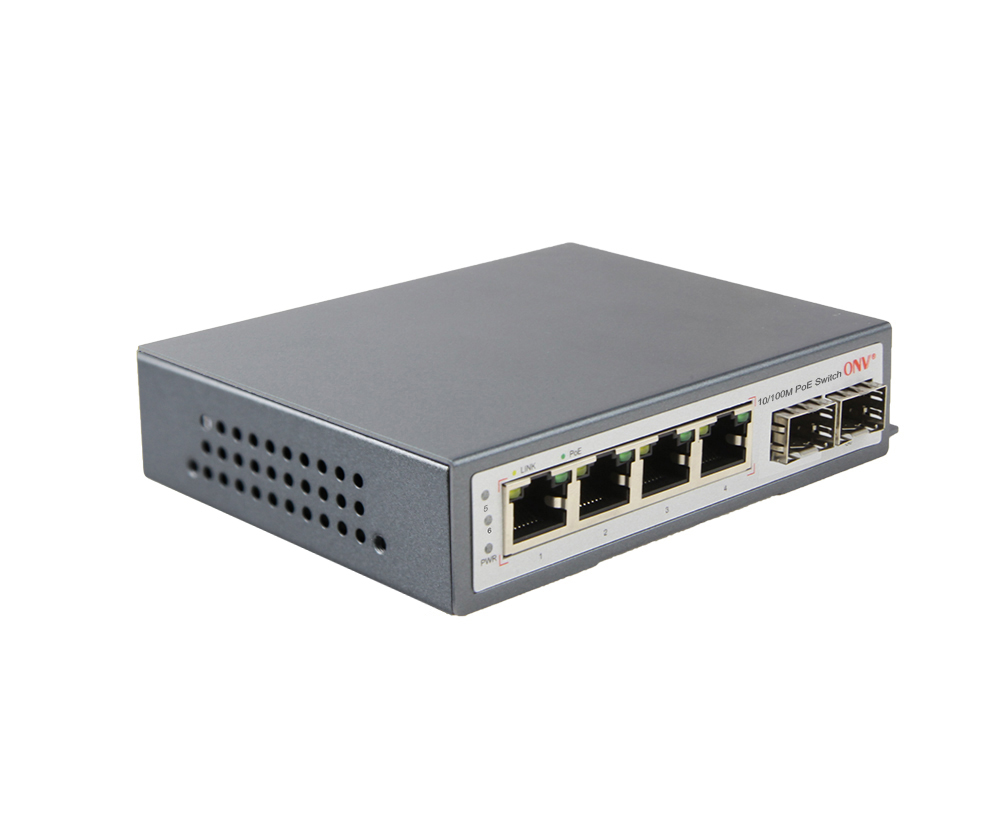

The ONV-POE31064PF is a 10/100M unmanaged PoE fiber switch independently developed by ONV. It has 4*10/100M RJ45 ports and 2*155M SFP slot ports. Port 1-4 can support IEEE802.3af/at PoE standard, single port PoE power up to 30W, the maximum PoE output power is 65W . As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. it can automatically detect and identify the the electrical equipment that meets the standard and supply power to it through the network cable, devices including wireless AP, Webcam, IP telephone and other PoE terminal equipment etc. In addition, it is suitable for networking system of hotel, campus, dormitory and small&medium enterprise etc.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
10/100Mbps fast Ethernet access , dual fiber uplink
◇ 4*10/100Base-TX RJ45 ports and dual uplink SFP ports for easy long distance transmission, which facilitates flexible networking and meets network requirements for various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Smart PoE power supply

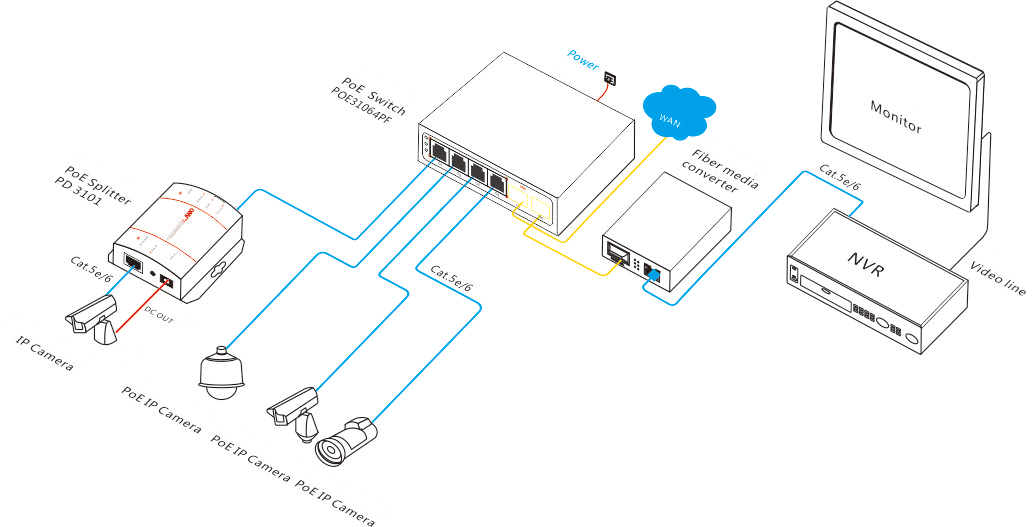

◇ 4*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
Stable and reliable
◇ CCC,CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ Low power consumption, galvanized steel casing, The fan active cooling.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.

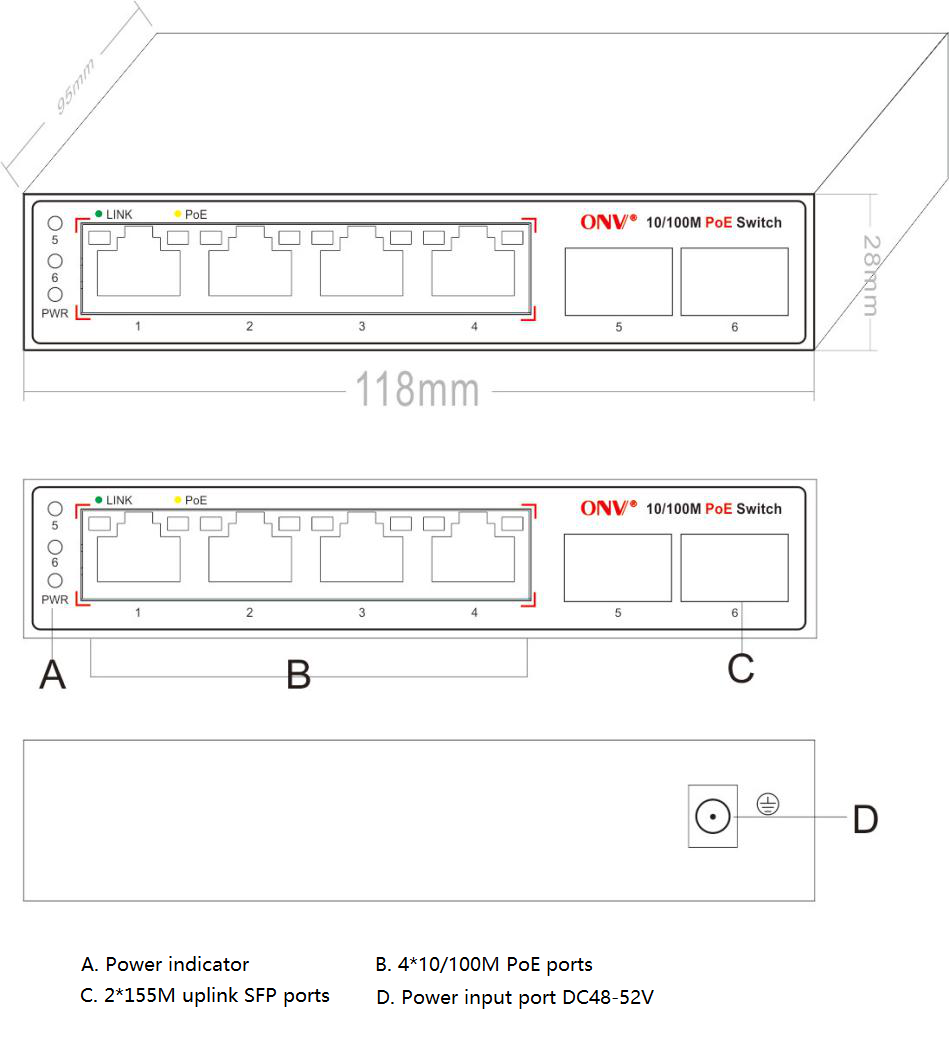

DIMENSION
| Model | ONV-POE31064PF | ONV-POE31064PF-at |
| Interface Characteristics | ||
| Fixed Port | 4*10/100Base-TX PoE ports (Data /Power) 2*155M 100Bse-FX uplink SFP ports (Data) | |
| Ethernet Port | Port 1-4 can support 10/100Base-T(X) auto-sensing,full/half duplex MDI/MDI-X self-adaption | |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| Fiber Port Feature | 155M SFP fiber interface, no optical module by default, need to be purchased separately (optional order single-mode / multimode, single fiber / dual fiber module, LC) | |
| Optical Cable / Distance | Multi mode: 850nm/ 0~550M, single mode: 1310nm/ 0~40KM,1550nm/ 0-120KM. | |
| Chip Parameter | ||
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX IEEE802.3x | |
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 1.6Gbps (Non-blocking) | |
| Forwarding Rate@64byte | 0.89Mpps | |
| MAC | 1K | |
| Buffer Memory | 768K | |
| Jumbo Frame | 9.6K | |
| LED Indicator | Power: PWR (green), network: Link (yellow), PoE: PoE (green), fiber port : 5/6 (green) | |
| Reset Switch | Yes, One-button factory reset | |
| PoE & Power | ||
| PoE Port | Port 1 to 4 IEEE802.3af/at @ POE | |
| Power Supply Pin | Defaul 1/2 (+), 3/6 (-), optional 4/5 (+), 7/8 (-) | |
| Max Power Per Port | 30W; IEEE802.3af/at | |
| Total PWR / Input Voltage | 65W /(52VDC) | 110W/(52VDC) |
| Power Consumption | Standby<4W, Full Load<65W | Standby<6W, Full Load<110W |
| Power Supply | External power adapter, AC100~240V 50-60Hz 1A | External power adapter, AC100~240V 50-60Hz 2.2A |
| Physical Parameter | ||
| Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing | |
| Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing | |
| Dimension (L*W*H) | 118*95*28mm | |
| Net /Gross Weight | <0.4kg /<0.9kg | |
| Installation | desktop type ,wall mounted | |
| Certification & Warranty | ||
| Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 | |
| Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; | |
| Warranty | 3 years, lifelong maintenance. | |
| Model | Description |
| ONV-POE31064PF | Unmanaged fiber PoE switch with 4*10/100M PoE ports and 2*155M uplink SFP ports, Port 1-4 can support IEEE802.3af/at PoE standard. External 65W power supply. |
| ONV-POE31064PF-at | Unmanaged fiber PoE switch with 4*10/100M PoE ports and 2*155M uplink SFP ports, Port 1-4 can support IEEE802.3af/at PoE standard. External 110W power supply. |
| PACKING LIST | CONTENT | QTY | UNIT |
| 6-port 10/100M PoE fiber switch | 1 | SET | |
| Power Adapter+AC Power Cable | 1 | SET | |
| Mounting Kits (Hanging ear ) | 1 | SET | |
| User Guide | 1 | PC | |
| Warranty Card | 1 | PC |
