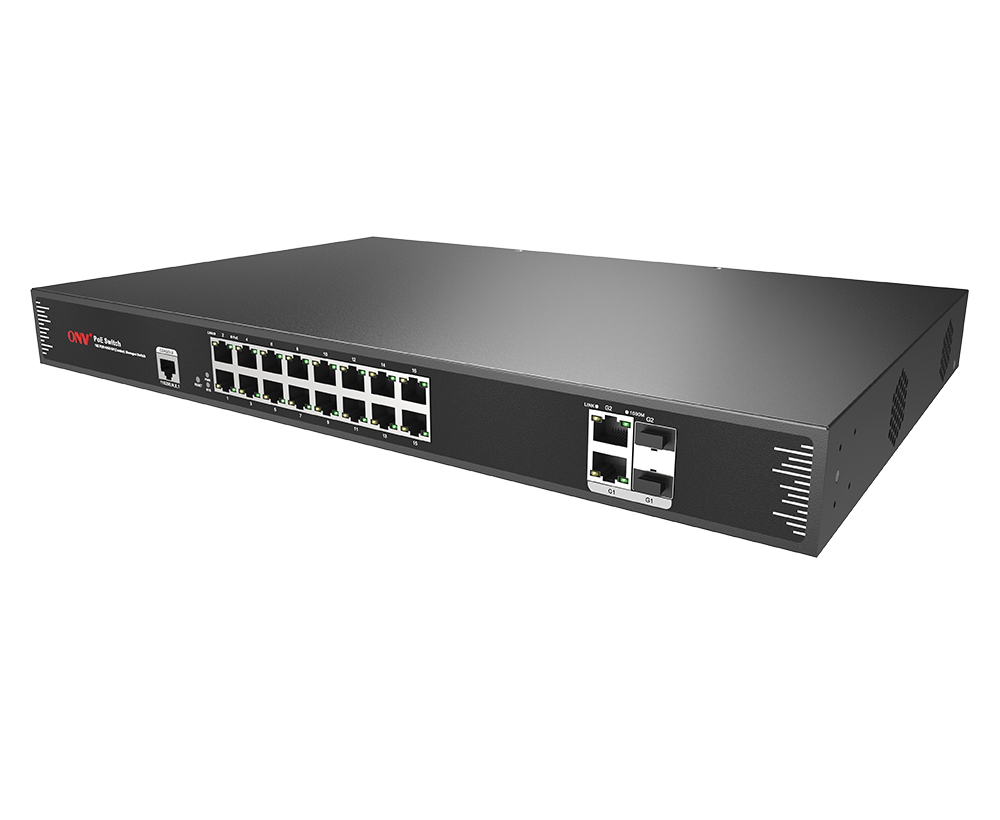

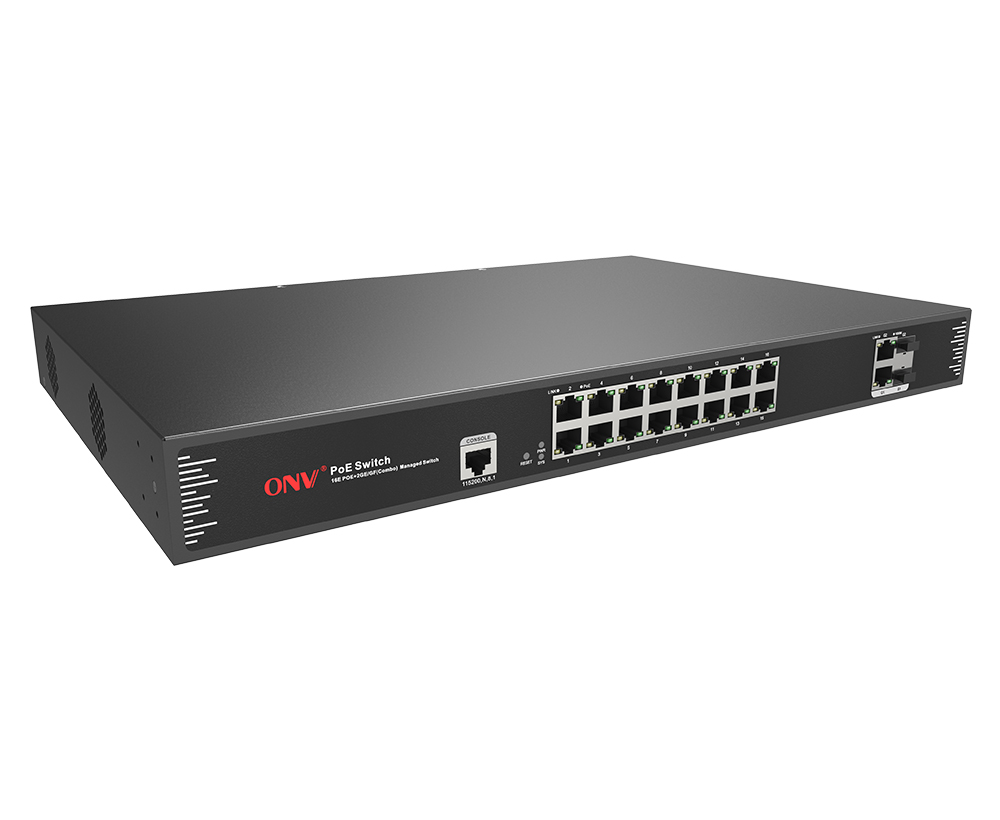

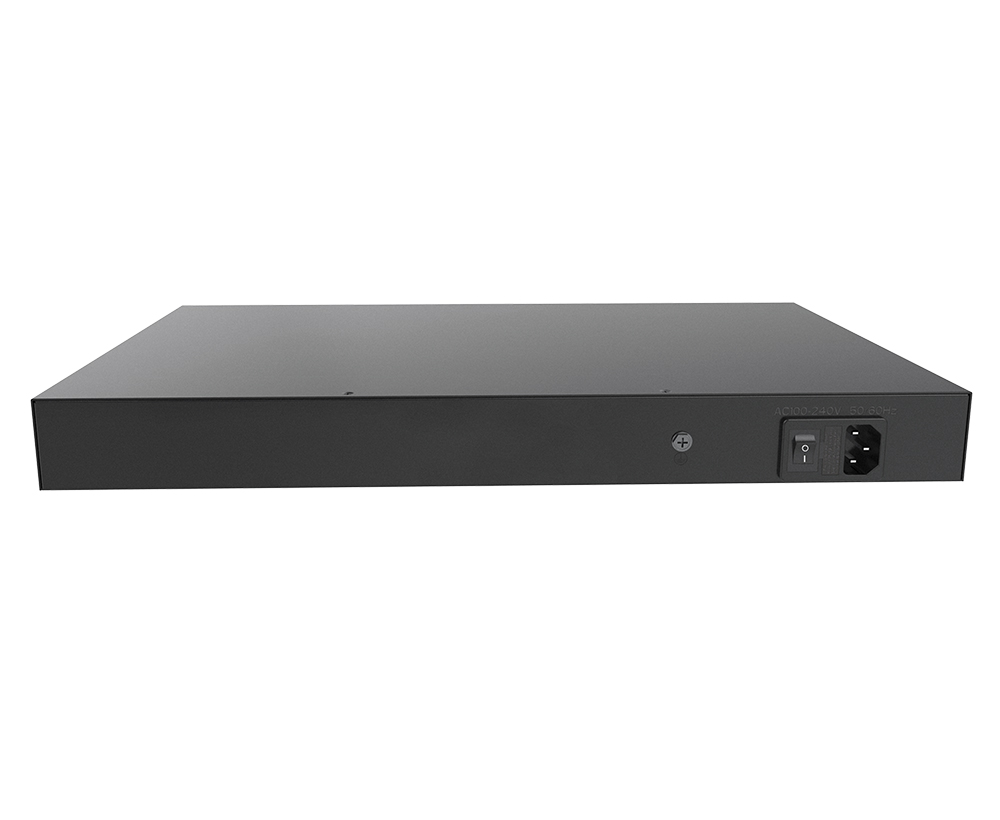

The ONV-POE31016PFM series is a Gigabit uplink managed PoE fiber switch independently developed by ONV. It has 16*10/100M RJ45 ports and 2*10/100/1000M RJ45 ports and 2 *100/1000M SFP fiber slot ports (combo port), Port 1-16 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 250W(at-400W). and each port can realize line-speed forwarding.
The ONV-POE31016PFM series adopts a new generation of high-performance hardware and software platforms to provide flexible and cost-effective 100Mbps access and uplink ports. It supports complete security protection mechanisms, complete ACL/QoS policies, and flexible VLAN functions, and is easy to manage and maintain. As a PoE power supply device, it can automatically detect and identify the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, parks, attractions, supermarkets, Factory quarters and small and medium-sized enterprises form a cost-effective network.
FEATURE
100Mbps access, Gigabit (TP/SFP) combo port uplink
◇ All series supports “10/100M Ethernet port and Gigabit TP/SFP port ” combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
Intelligent PoE power supply function
◇ 16*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
◇ PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
Strong business processing capability
◇ IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration.
◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.
◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
◇ IGMP V1/V2 and IGMP Snooping.
◇ ERPS/STP/RSTP/MSTP.
◇ Static and dynamic aggregation.
Security
◇ 802.1X authentication.
◇ Port isolation,Storm control.
◇ IP-MAC-VLAN-Port binding.
Stable and reliable
◇ Low power consumption, no fan mute design, galvanized steel metal casing.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ CCC,CE, FCC, RoHS.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.
Easy operation and maintenance management
◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
◇ HTTPS, SSLV3, and SSHV1/V2.
◇ RMON, system log, LLDP, and port traffic statistics.
◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.

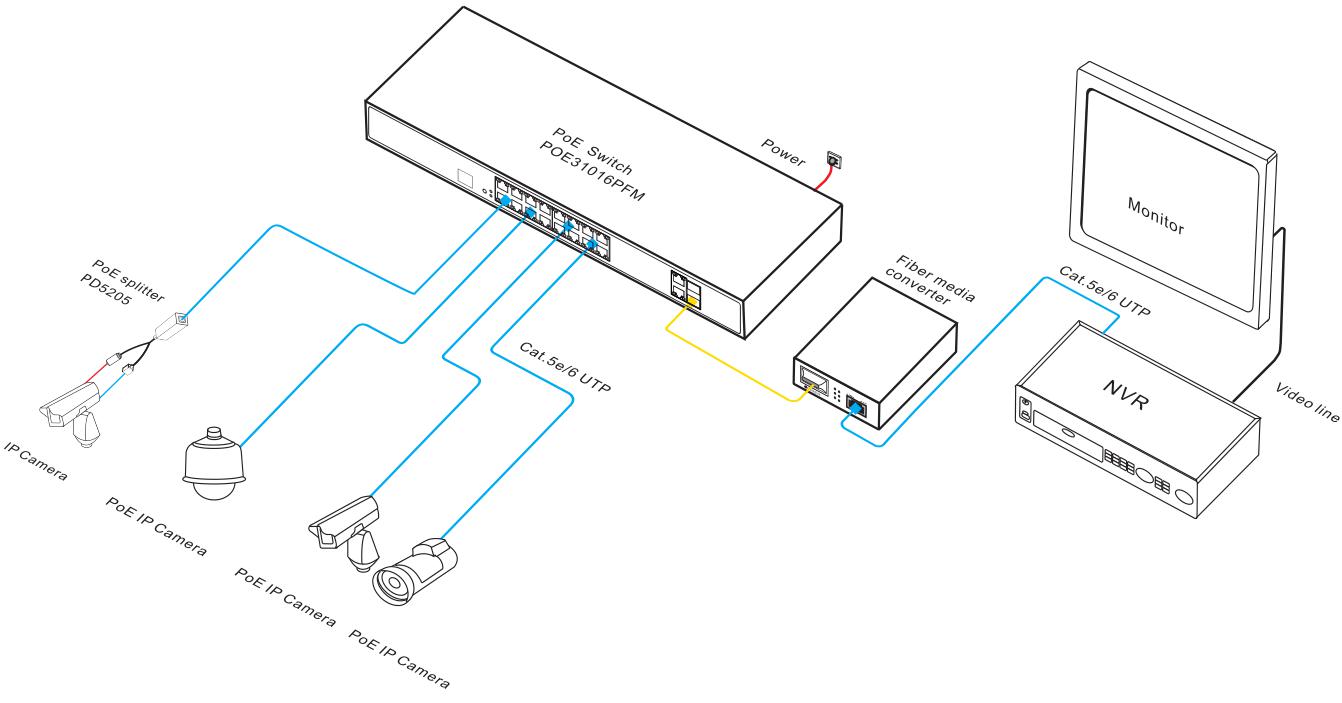

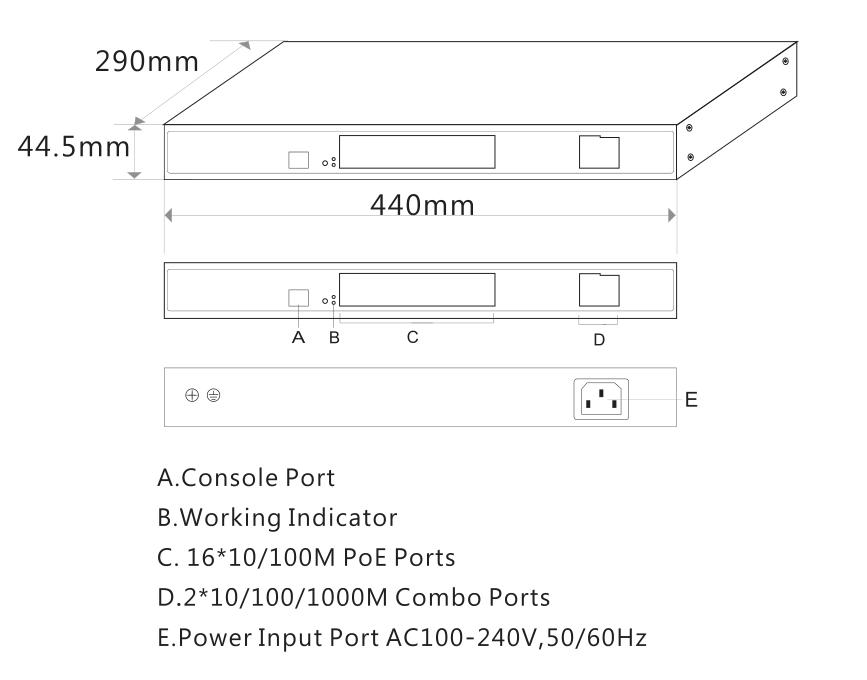

DIMENSION
Model | ONV-POE31016PFM | ONV-POE31016PFM-at |
Interface Characteristics | ||
Fixed Port | 16*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) 2*1000M uplink SFP fiber slot ports (Data)(Combo port) 1*Console port (command line ) 1*Console RS232 port | |
Ethernet Port | Port 1-16 support 10/100Base-TX, port 17-18 support 10/100/1000Base-T, auto-sensing, full/half duplex MDI/MDI-X self-adaption. | |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
SFP Slot Port | Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
Optical Cable | Multi mode: 850nm 0 ~ 550M, single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. | |
Chip Parameter | ||
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 64Gbps (Non-blocking) | |
Forwarding Rate@64byte | 5.36Mpps | |
MAC | 16K | |
Buffer Memory | 4M | |
Jumbo Frame | 10K | |
LED Indicator | Power:PWR(green), Data :Link,Link/Act (yellow), PoE: PoE (green), Speed: SPD (green) | |
PoE & Power | ||
PoE Port | Port 1 to 16 IEEE802.3af/at @ POE | |
PoE Management | PoE working status Delay start of power supply PoE output priority configuration Scheduling of PoE operation and time | |
Power Supply Pin | Default :1/2 (+), 3/6 (-),optional:4/5 (+), 7/8 (-) | |
Max Power Per Port | 30W; IEEE802.3af/at | |
Total PWR / Input Voltage | 250W (AC100-240V) | 400W (AC100-240V) |
Power Consumption | Standby:<15W;Full load:<240W | Standby:<20W; Full load:<380W |
Power Supply | Built in power supply, AC100~240V 50-60Hz 4.1A | Built in power supply, AC100~240V 50-60Hz 5.0A |
Physical Parameter | ||
Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing | |
Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing | |
Dimension (L*W*H) | 440*225*44mm | |
Net /Gross Weight | <2.8kg /<3.5kg | |
Installation | Desktop,wall mounted,19 inch 1U cabinet installation | |
Certification & Warranty | ||
Port lightning protection | Port lightning protection : 4KV 8/20us,Protection level: IP30 | |
Certification | CCC;CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS | |
Warranty | 3 years, lifetime maintenance. | |
Network Management Features | ||
Interface | IEEE802.3X (Full-duplex) Broadcast storm control based on port speed The speed limit of the message flow in the access port. The minimum particle size is 64Kbps. | |
VLAN | QinQ configuration VLAN based on protocol 4K VLAN based on port, IEEE802.1q | |
Port Aggregation | LACP, Static aggregation Max 8 aggregation groups and 8 ports per group. | |
Spanning Tree | STP (IEEE802.1d),RSTP (IEEE802.1w), MSTP (IEEE802.1s) | |
Multicast
| MLD Snooping v1/v2, Multicast VLAN IGMP Snoopingv1/v2/v3, Max 64 multicast groups, Fast log out | |
Image | Bi-directional traffic mirroring supporting the basic port | |
QoS | 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS,Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) | |
ACL | Port-based Issuing ACL L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. | |
Security | Port isolation, Storm control. IP-MAC-VLAN-Port binding | |
DHCP | DHCP Client,DHCP Snooping,DHCP Relay | |
Management | NTP SNMP V1/V2C/V3 One-key recovery System work log Web Management (HTTPS) | |
| Model | Description |
| ONV-POE31016PFM | L2 managed PoE fiber switch with 16* 10/100M RJ45 ports and 2*10/100/1000M RJ45 ports and 2*100/1000M SFP fiber slot ports, Port 1-16 can support IEEE802.3af/at PoE standard, Built-in 250W power supply. |
| ONV-POE31016PFM-at | L2 managed PoE fiber switch with 16* 10/100M RJ45 ports and 2*10/100/1000M RJ45 ports and 2*100/1000M SFP fiber slot ports, Port 1-16 can support IEEE802.3af/at PoE standard, Built-in 400W power supply. |
| Note: The SFP optical module is not included by default and needs to be purchased separately. | |
| PACKING LIST | CONTENT | QTY | UNIT |
| 18-port gigabit uplink managed PoE switch | 1 | SET | |
| AC Power Cable | 1 | PC | |
| Mounting Kits (Hanging Ear) | 1 | SET | |
| User Guide | 1 | PC | |
| Warranty Card | 1 | PC |
