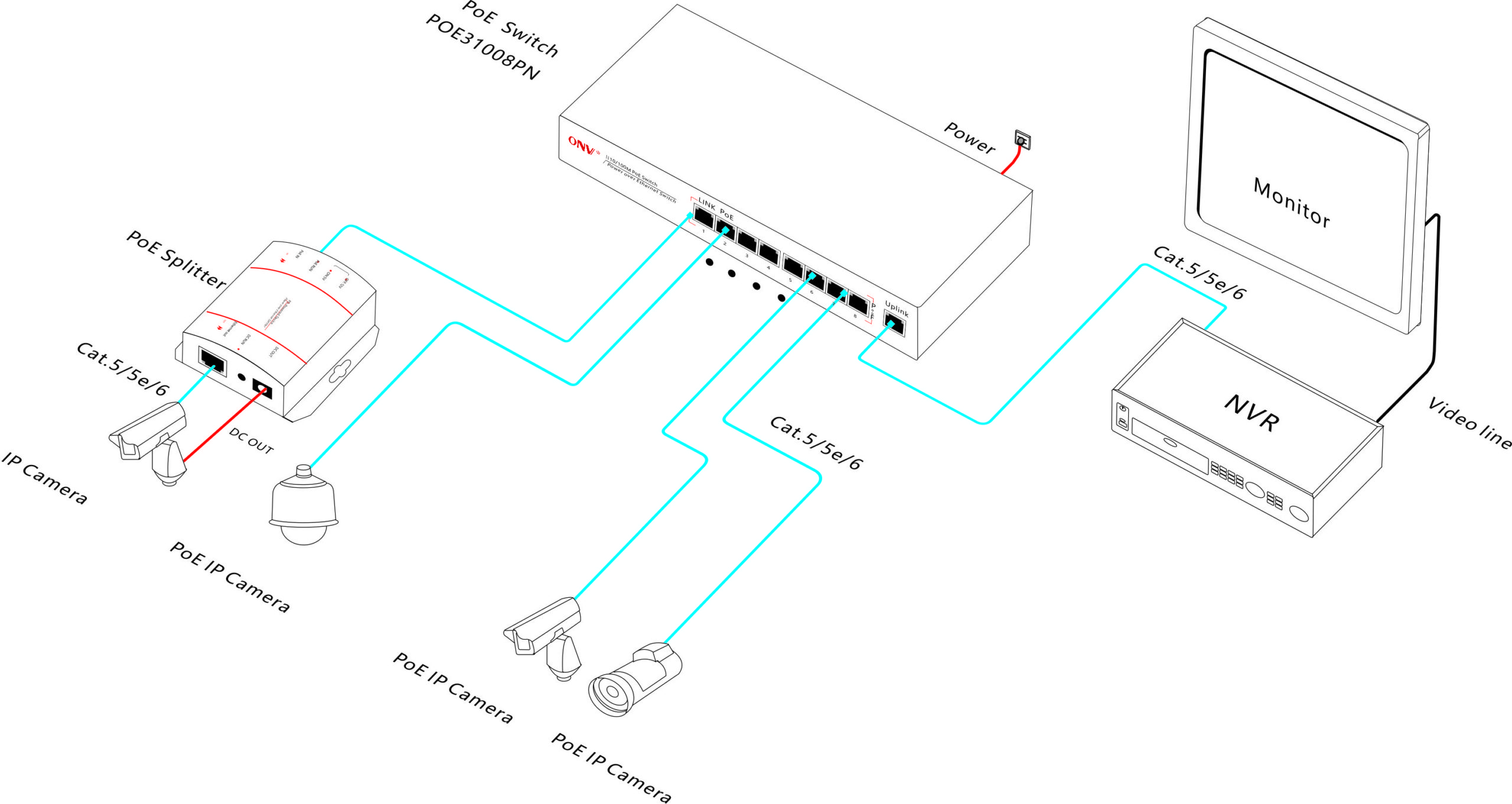

The ONV-POE31008PN is an unmanaged PoE switch independently developed by ONV. It has 8*10/100M PoE ports and 1*10/100M uplink RJ45 port. Port 1-8 can support IEEE 802.3af/at PoE standard, single port PoE power up to 30W, the maximum PoE output power is 130W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. it can automatically detect and identify the the electrical equipment that meets the standard and supply power to it through the network cable, devices including wireless AP, IP camera, IP telephone and other PoE terminal equipment etc. In addition, it is suitable for networking system of hotel, campus, dormitory and small&medium enterprise etc.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

10/100Mbps fast Ethernet access

◇ Provides 9*10/100Base-TX RJ45 ports for easy long distance transmission, which facilitates flexible networking and meets network requirements for various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

Intelligent PoE power supply

◇ 8*10/100Base-TX PoE ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

Stable and reliable

◇ CCC,CE, FCC, RoHS.

◇ Plug and play, no configuration, easy to maintain.

◇ Low power consumption and low noise, galvanized steel shell, No fan.

◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

◇ The user-friendly panel, it can show the device status through the LED indicator of P, Link, PoE.

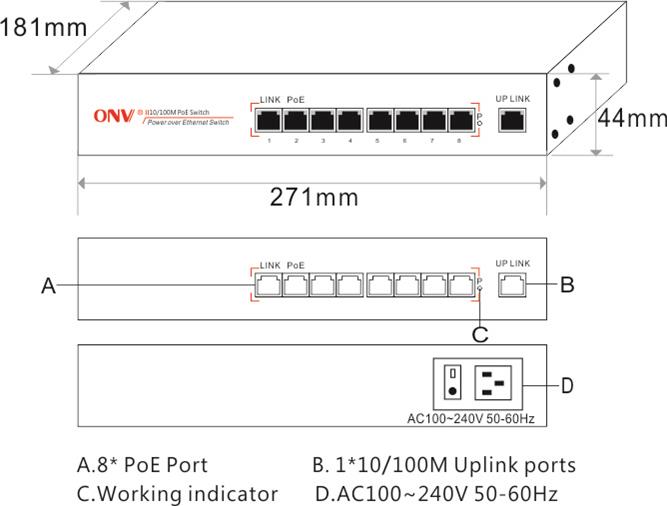

DIMENSION

ONV-POE31008PN Datasheet
