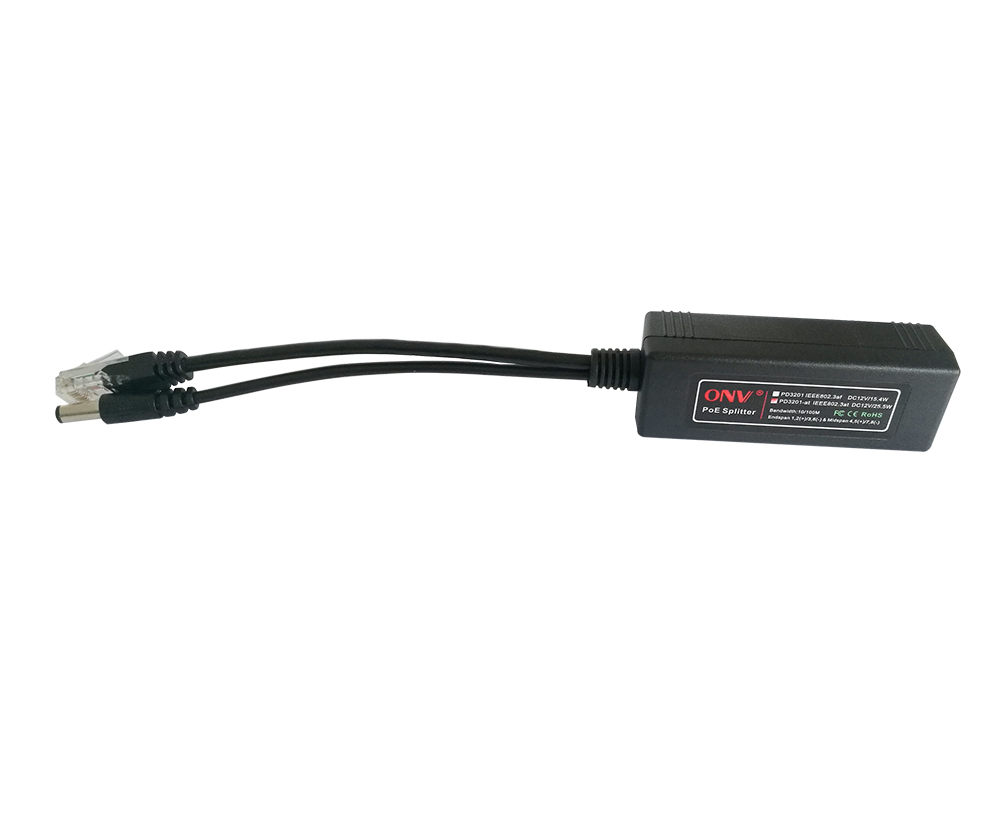

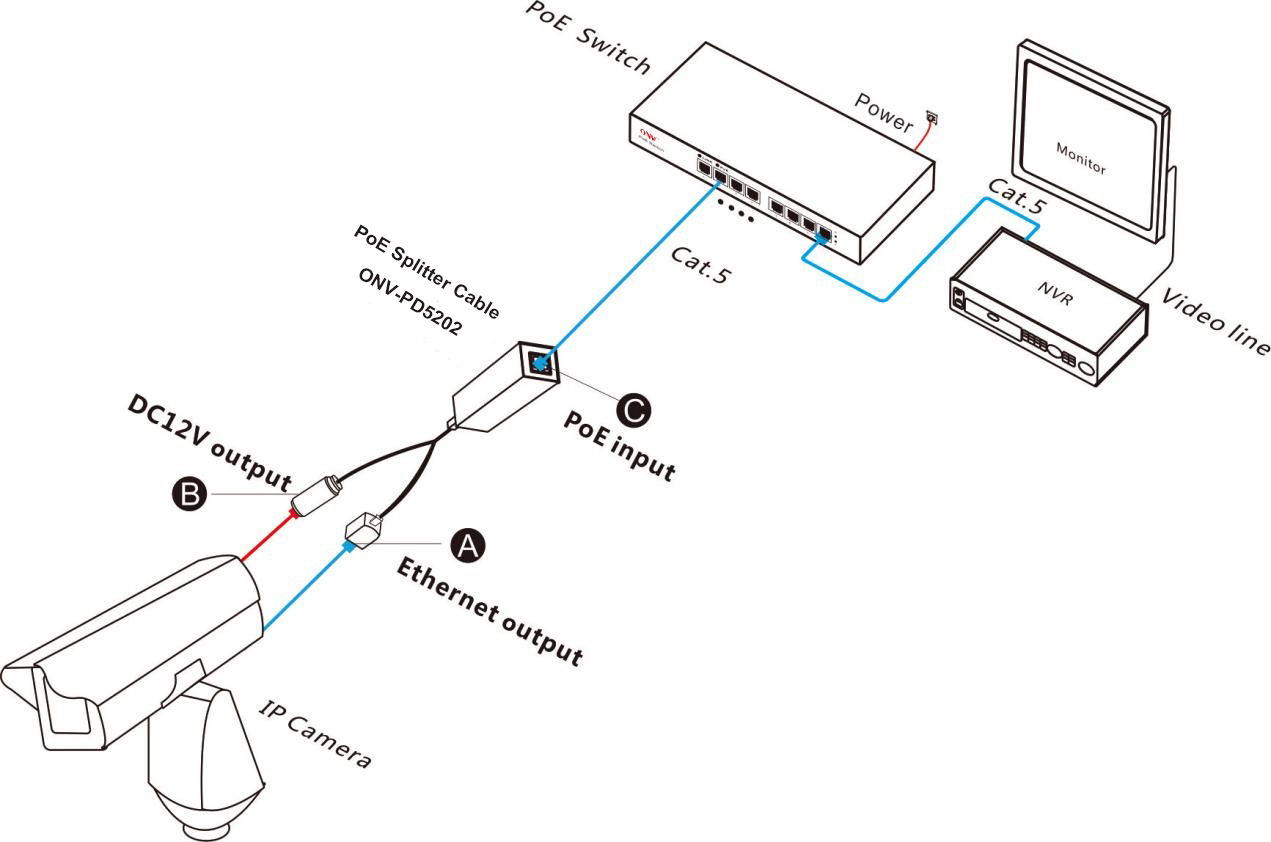

ONV-PD5202, a cost-effective and high reliable remote PoE PD device based on standard IEEE802.3af/at, could split the power and data transmitted through cable. It could provide power and data to device without PoE function when connecting with a PoE Switch or PSE Injector. The output voltage is 12V, and equipped with PoE power supply device, it could flexibly expand the scale of Security Surveillance & Wireless Network without the limitation of power line layout.
With transformer isolated design for circuit input stage and output stage of the ONV-PD5202 power, it strengthens anti-jamming capability and protection for circuit. Also it effectively reduces PoE Switch Abnormal Power Supply Matters caused by common ground problem.Meeting the standard of IEEE802.3af/at. Compatible with power supply methods of both End-span(1,2+ 3,6-) and Mid-span (4,5+ 7,8-). With the features of output power at 13W, low ripple, more than 82% high efficiency, Port Isolation Protection: 1500V and Protection for short circuit, over-current & over-temperature. With 1 to 2 design, it could be working with device that support external PoE, and it also simplifies effectively the project wiring and maintenance.
FEATURE

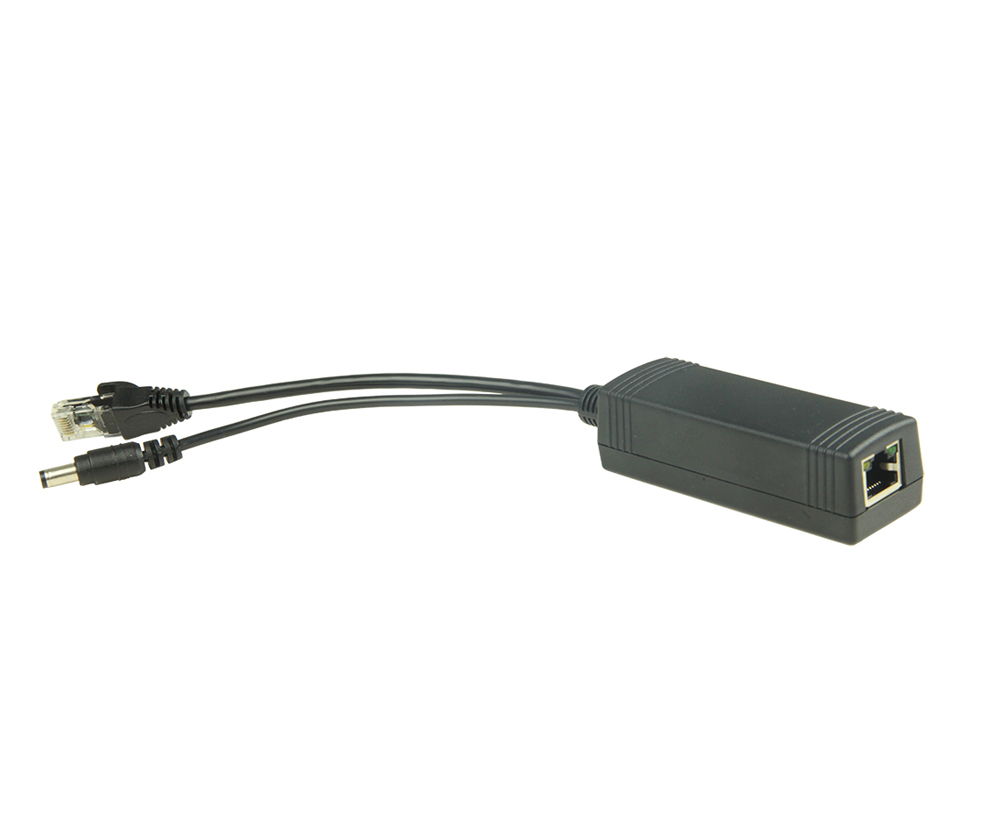

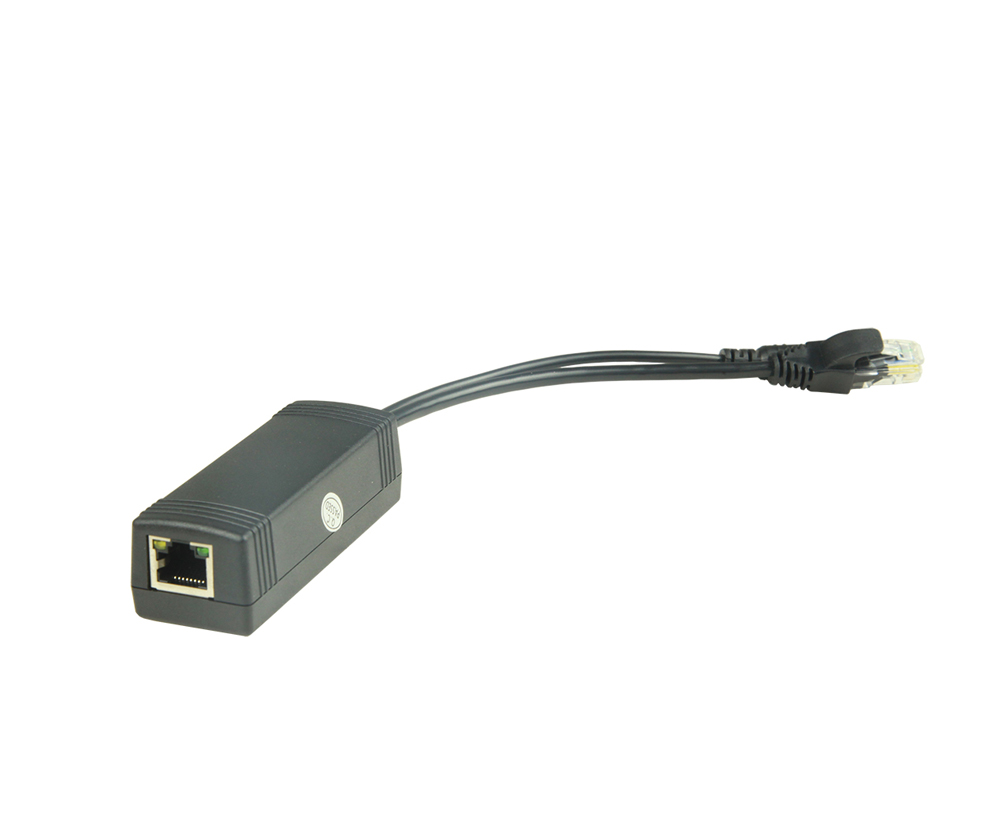

1x 10/100M RJ45 port+ 1*10/100M male output port+1*(5.5*2.1mm) DC output port
Support IEEE 802.3af/at Ethernet power standard
10/100M data transmission
Output voltage:12V(Default)
Circuit protection to protect the connected device
Top-quality design, stable and reliable
| Model | ONV-PD5202 |
| Power Supply Type | 1/2(+),3/6(-);4/5(+),7/8(-) power supply |
| PoE Voltage Input | 44-57V |
| DC Voltage Output | 12V |
| Connctor | 1x 10/100M RJ45 input port 1*10/100M male output port 1*(5.5*2.1mm) DC output port |
| Network Medium | Cat5 (UTP) or more |
| Protocol | IEEE 802.3 i 10 BASE-T IEEE 802.3 u 100 BASE-TX IEEE 802.3 x Flow Control IEEE 802.3 at Power over Ethernet |
| Rate | 10/100M |
| LED Status | PoE power input indicator light |
| Port Protection | Meet the IEC61000-4-2(ESD)±15KV(air), ±8KV (contact); Compatible with 8/20us,(1.1A) |
| Certifications | CE,FCC,RoHS |
| Dimension | 85.3*31.2*26.3mm |
| Working Temperature | Operating Temperature: 0~55℃; Storage Temperature: -20~70℃; Operation Humidity: 90%, non-condensing; Storage Humidity: 95%, non-condensing |
| Warranty | 1 year |
Model | Description |
ONV-PD5202 | 10/100M PoE splitter cable, DC12V, IEEE 802.3af/at standard. Standard power output is 13W. |
Notes: Default power supply type is end-span (1/2, 3/6 line pairs), mid-span (4/5, 7/8 line pairs) can be customized. | |
PACKING LIST | CONTENT | QTY | UNIT |
10/100M PoE Splitter Cable 13W | 1 | SET | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
