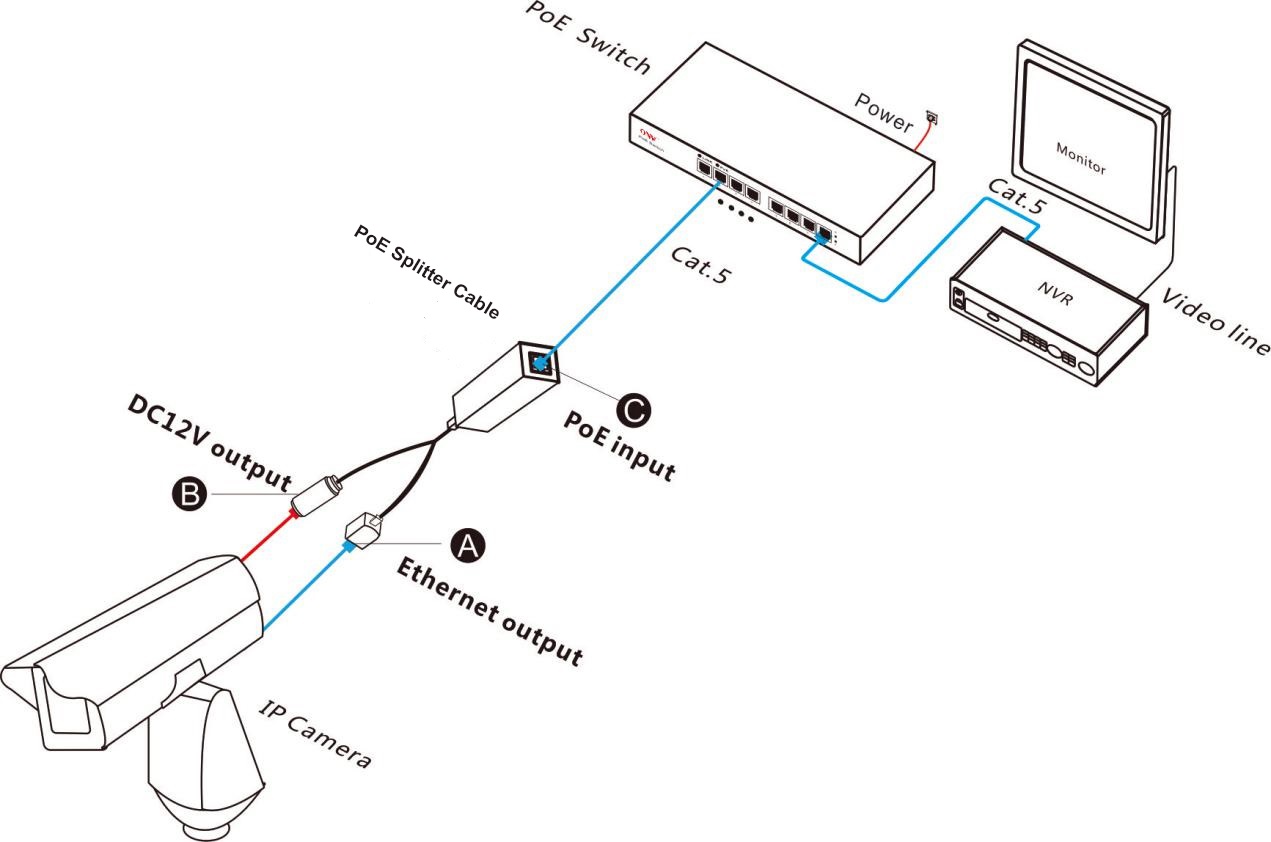

The ONV-PD1201W-2412 series is a 10/100M waterproof non-standard PD PoE splitter cable independently developed by ONV. It has 1*10/100Base-TX RJ45 port and 1*8P male output port and 1*DC5521 power port. The invention meets the requirements that various non-PoE network terminals can be externally connected with PoE switches for use, flexibly expands security monitoring and wireless networks without being limited by power line layout, reduces system wiring, improves system stability and safety, and reduces maintenance cost.
The ONV-PD1201W-2412 housing is made of ABS and PC flame retardant plastic material, support 24VDC non-standard POE input, only support power supply methods of Mid-span (4,5+ 7,8-). With the features of output power at 15W, low ripple, more than 80% high efficiency, Port Isolation Protection: 2KV and Protection for short circuit, over-current & over-temperature. Plug and play, no configuration required, simple and convenient to use.
FEATURE
10/100Mbps fast Ethernet
◇ Only support power supply methods of Mid-span (4,5+ 7,8-)
◇ Output voltage:12V(Default), 5~15VDC can be customized, with low ripple.
◇ Input voltage 20-26VDC, rated output power 12W, greater than 80% efficiency
◇ Support short circuit, overcurrent, and overtemperature protection
◇ DC interface has dustproof and waterproof measures
Model | ONV-PD1201W-2412 |
Interface Characteristics | |
Fixed Port | 1*10/100Base-TX RJ45 port (Data) 1*8P male output port (Data) 1*DC5521 power port (Power) |
Ethernet Port | Ethernet port can support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption |
Network Characteristics | |
Transmission Bandwidth (Rate) | 10/100Mbps |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
LED Indicator | Working indicator: POE (green) |
PoE & Power Characteristics | |
PoE Port (PD) | 20-26VDC non-standard POE power supply |
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3x |
Power Supply Pin | Only support 4/5 (+), 7/8 (-) |
Input Voltage | 20–26VDC |
Output Voltage | 12VDC± 0.5V(Defaul ), optional 5V,9V |
Power Consumption | Standby<1W, Full Load<15W |
Conversion Efficiency (Output: Input) | ≥80% |
Physical Parameter | |
Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing |
Storage TEMP / Humidity | -40~+85°C;5%~95% RH Non condensing |
Dimension | 61*20mm , cable length:≤150mm |
Net /Gross Weight | <0.08kg /<0.1kg |
Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP65 |
Warranty | 1 year, lifelong maintenance. |
| Model | Description |
| ONV-PD5201 | 10/100M non-isolated PD PoE splitter cable can support IEEE802.3af/at standard, compatible with 1236&4578 dual mode power supply. input voltage: 44–57VDC, output voltage: 12VDC, and maximum full load power is 15W. |
| ONV-PD5202 | 10/100M isolated PD PoE splitter cable can support IEEE802.3af/at standard, compatible with 1236&4578 dual mode power supply. input voltage: 44-57VDC, output voltage: 12VDC, and maximum full load power is 13W. |
| ONV-PD3202-at | 10/100M isolated high power PD PoE splitter cable can support IEEE802.3af/at standard, compatible with 1236&4578 dual mode power supply. input voltage: 44-57VDC, output voltage: 12VDC, and maximum full load power is 24W. |
| ONV-PD1201W-2412 | 10/100M non-isolated waterproof PD PoE splitter cable. 24VDC non-standard POE input, input voltage: 20–26VDC, output voltage: 12VDC, and maximum full load power is 15W. it support 4578 power supply. |
| PACKING LIST | CONTENT | QTY | UNIT |
| 10/100M waterproof Non-standard PD PoE splitter cable | 1 | SET | |
| Warranty Card | 1 | PC |
