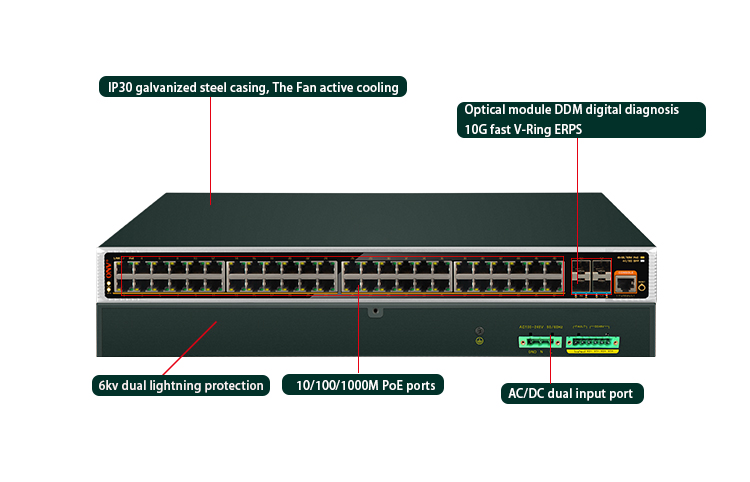

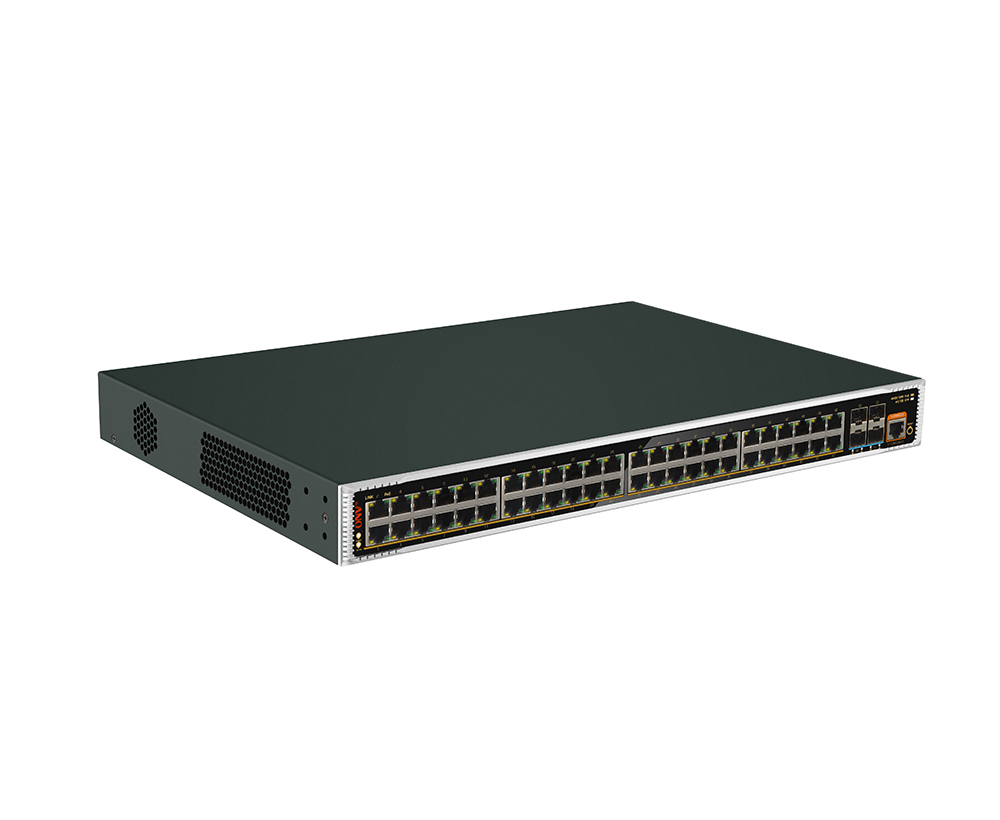

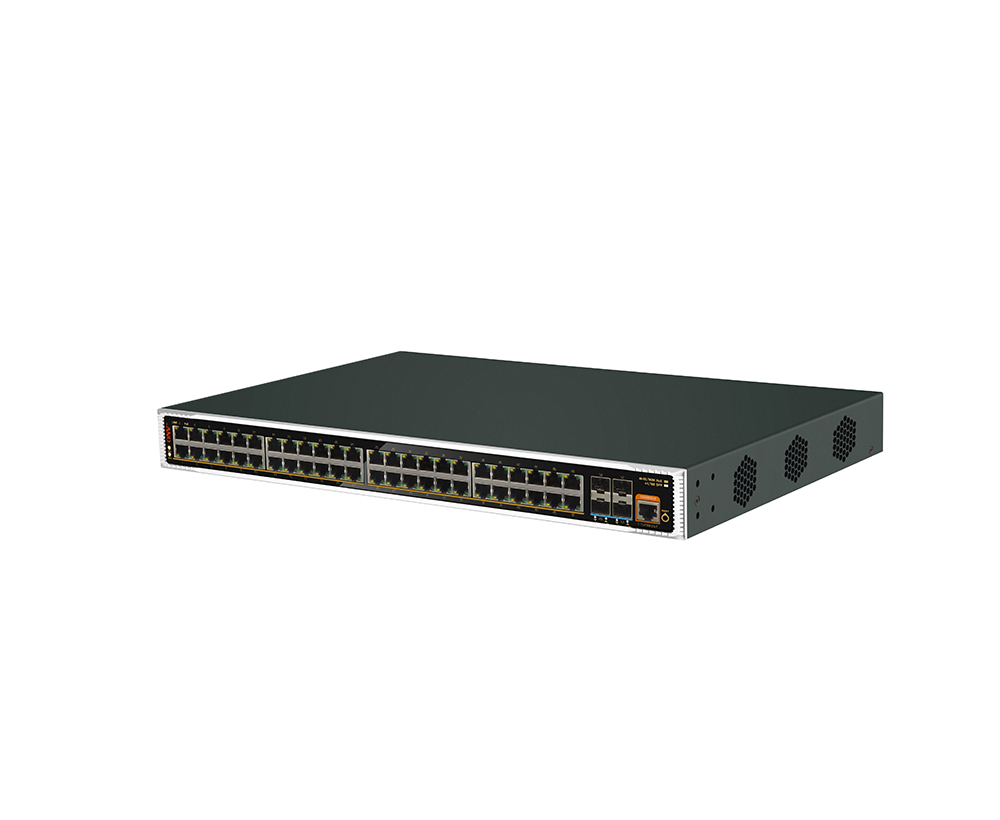

The ONV-IPS38048PFM series is a 10G uplink L3 managed industrial PoE switch independently developed by ONV. It has 48*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber slot ports. Port 1-48 can support IEEE 802.3af/at standard PoE. single port PoE power up to 30W, and the maximum PoE output power is 600W. As a PoE power supply device, it can automatically detect and recognize power-compliant devices that meet the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, Industrial scenes such as shipping, metallurgy, and green energy construction form a cost-effective, stable and reliable communication network.
The ONV-IPS38048PFM has L3 full network management function, support IPV4/IPV6 management, static route full line-rate forwarding, security protection mechanism, ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Support multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS(<20ms) to improve link backup and network reliability. When the one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web network management mode.
FEATURE
Gigabit wire speed access, 10G uplink
◇ A combination of Gigabit Ethernet port and 10G uplink SFP+ port to meet the networking requirements of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
Intelligent PoE power supply
◇ 48*10/100/1000Base-T RJ45 ports can support POE power supply to meet the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

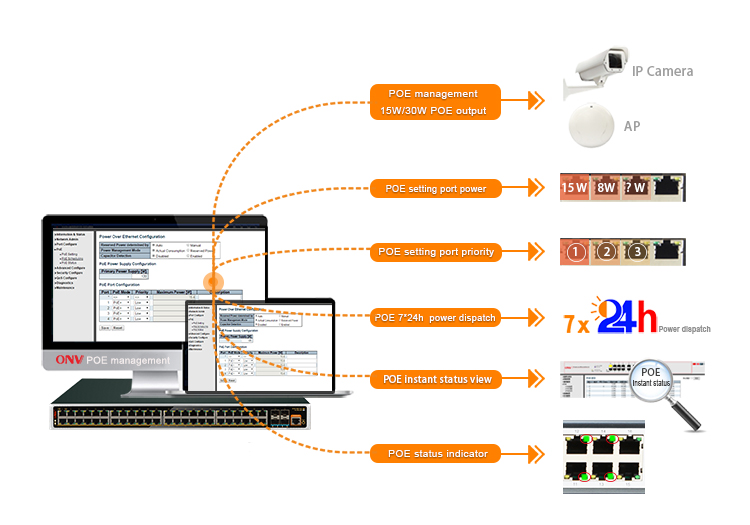

◇ PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.

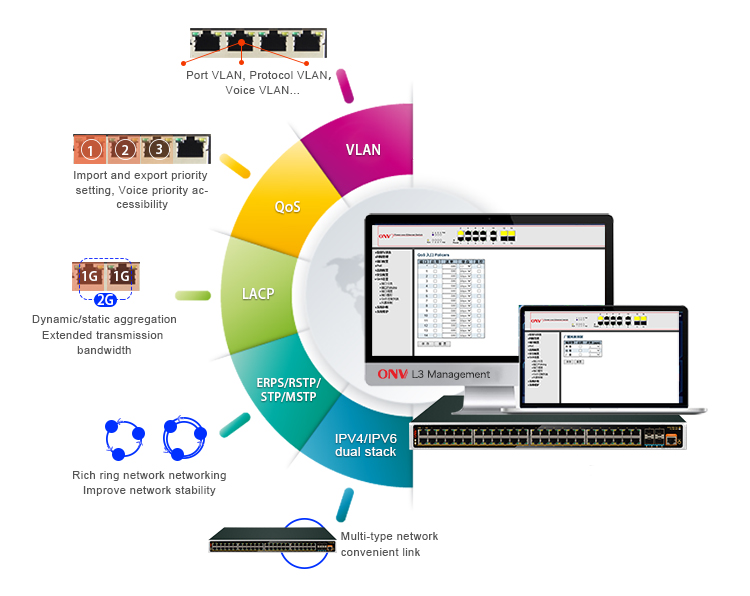

Strong business processing capability
◇ IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration.
◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.
◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
◇ IGMP V1/V2 and IGMP Snooping.
◇ ERPS/STP/RSTP/MSTP.
◇ Static and dynamic aggregation.

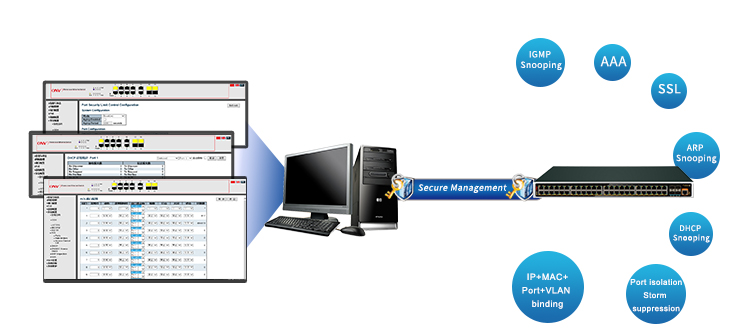

Security
◇ 802.1X authentication.
◇ Port isolation,Storm control.
◇ IP-MAC-VLAN-Port binding.
Stable and reliable
◇ Low power consumption, fan active cooling , galvanized steel casing.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ CCC,CE, FCC, RoHS.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link,PoE.
Easy operation and maintenance management
◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
◇ HTTPS, SSLV3, and SSHV1/V2.
◇ RMON, system log, LLDP, and port traffic statistics.
◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.
DIMENSION

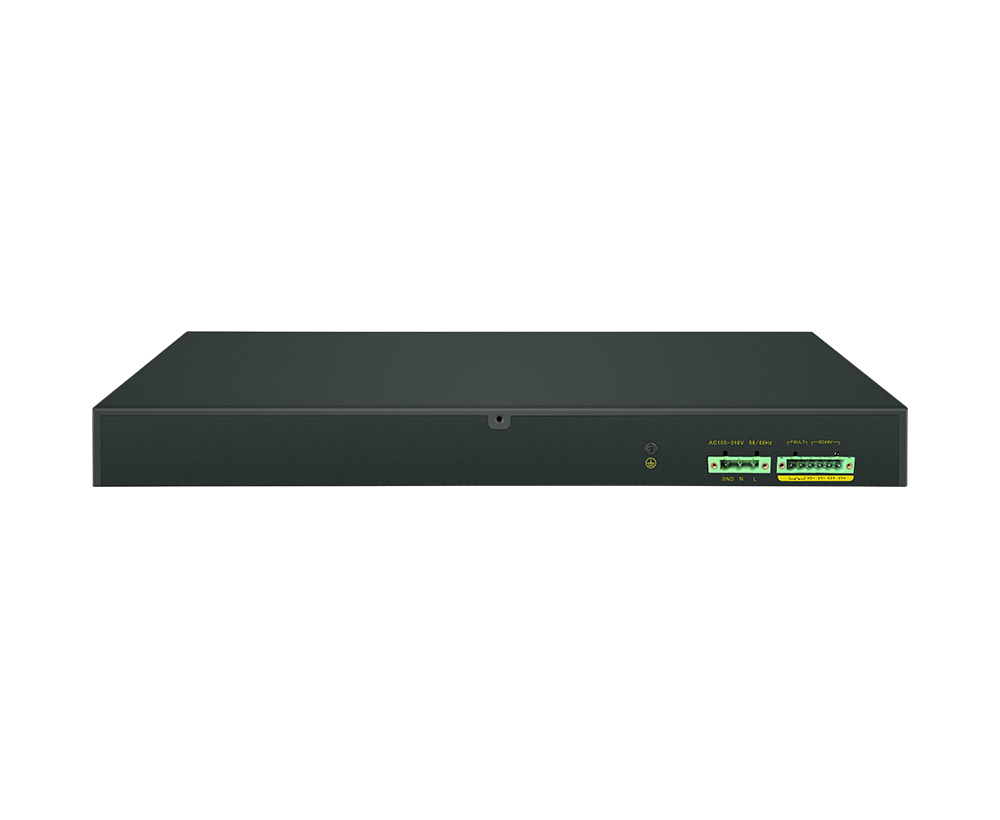

Model | ONV-IPS38048PFM |
Interface Characteristics | |
Fixed Port | 48*10/100/1000Base-T RJ45 ports (Data) 4*1/10G uplink SFP+ slot ports (Data) 1 * console port(115200,N,8,1) Alarm switch(FAULT) 1 *AC100-240V power input port 2 * DC12-48V power input ports ( support anti-reverse protection) |
Ethernet Port | Port 1-48 support 10/100/1000Base-T(x), auto-sensing,Full/half duplex MDI/MDI-X self-adaption |
SFP Slot Port | 1/10G SFP+ optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
SFP Port Expansion | Turbo overclocking 2.5G optical module and ring |
Optical Cable/ Distance | Multi mode: 850nm / 0 ~ 500M, 0 ~ 300M (10G); single mode: 1310nm / 0 ~ 40KM, 1550nm/ 0 ~ 120KM. |
Chip Parameter | |
Network Management Type | L3 |
Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3ae 10GBase-SR/LR IEEE802.3x |
Forwarding Mode | Store and Forward(Full Wire Speed) |
Switching Capacity | 598Gbps |
Forwarding Rate@64byte | 131Mpps |
MAC | 32K |
Buffer Memory | 32M |
Jumbo Frame | 9.6K |
LED Indicator | Power:PWR (yellow), System : SYS (yellow), Network: Link/Act (yellow); SFP: L/A (green) |
Reset Switch | Yes, One-button factory reset |
Power | |
Total PWR / Input Voltage | 60W (AC100-240V) |
Power Consumption | Standby:<35W;Full load:<60W |
Power Supply | Built-in power supply, AC100~240V 50-60Hz 0.65A |
Power Input Interface | Dual input power port design, AC power supply priority, support anti-reverse protection, power-off automatic switching DC connection; 2*DC12-48V power input ports; Alarm switch, 1*AC power input port |
Physical Parameter | |
Operation TEMP / Humidity | –40~+80°C;5%~90% RH Non condensing |
Storage TEMP / Humidity | -40~+85°C;5%~95% RH Non condensing |

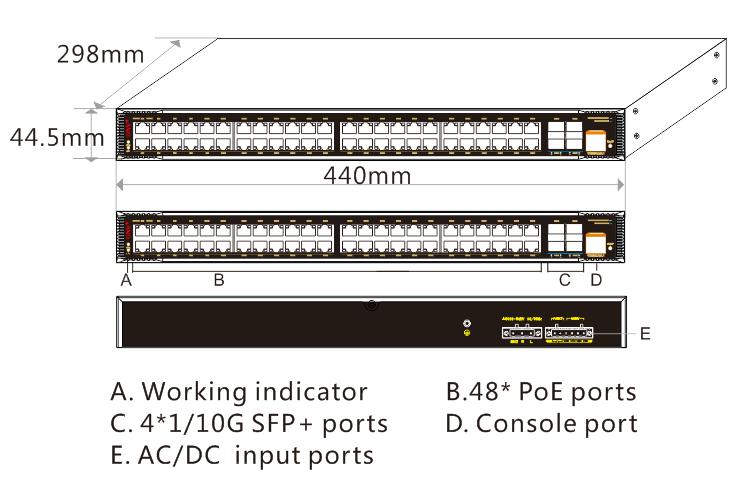

Dimension (L*W*H) | 440*298*44mm |
Net /Gross Weight | <5.0kg / <5.8kg |
Installation | Desktop, 19 inch 1U cabinet |
Certification & Warranty | |
Lightning protection / protection level | Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A IEC61000-6-2(Common Industrial Standard) |
Mechanical Properties | IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) |
Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; |
Warranty | 5 years, lifelong maintenance. |
Network Management Features | |
Interface | IEEE802.3X (Full-duplex) Port temperature protection setting Port green Ethernet Energy-saving setting Broadcast storm control based on port speed The speed limit of the message flow in the access port. The minimum particle size is 64Kbps. |
Layer 3 Features | L3 network management ,IPV4/IPV6 management L3 soft routing forwarding, Static route, Default route @ 128 pcs, APR @ 1024 pcs |
VLAN | 4K VLAN based on port, IEEE802.1q VLAN based on the protocol VLAN based on MAC Voice VLAN, QinQ configuration Port configuration of Access, Trunk, Hybrid |
Port Aggregation | LACP, Static aggregation Max 26 aggregation groups and 8 ports per group. |
Spanning Tree | STP (IEEE802.1d),RSTP (IEEE802.1w),MSTP (IEEE802.1s) |
Industrial Ring Network Protocol | G.8032 (ERPS),Recovery time less than 20ms 250 Ring at most, Max 254 devices per ring. |
Multicast | MLD Snooping v1/v2,Multicast VLAN IGMP Snooping v1/v2, Max 250 multicast groups, Fast log out |
Port Mirroring | Bidirectional data mirroring based on port |
QoS | Flow-based Rate Limiting Flow-based Packet Filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS,Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) |
ACL | Port-based Issuing ACL,ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
Security | IP-MAC-VLAN-Port binding ARP inspection,Anti-DoS attack AAA & RADIUS,MAC learning limit Mac black holes,IP source protection IEEE802.1X & MAC address authentication Broadcast storm control,Backup for host datum SSH 2.0,SSL,Port isolation,ARP message speed limit User hierarchical management and password protection |
DHCP | DHCP Client,DHCP Snooping, DHCP Server,DHCP Relay |
Management | One-key recovery Cable Diagnose,LLDP Web Management (HTTPS) NTP,System work log,Ping Test CPU instant utilization status view Console/AUX Modem/Telnet/SSH2.0 CLI Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3 ONV NMS – smart network management system platform(LLDP+SNMP) |
System | Category 5 Ethernet network cable Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later; TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
Model | Description |
ONV-IPS38048PFM | L3 managed industrial PoE switch with 48* 10/100/1000M RJ45 ports and 4*1/10G SFP+ fiber slot ports , Port 1-48 can support IEEE 802.3af/at PoE standard, Built-in 600W power supply. Support 1U/19 inch rack installation. |
Note: Industrial PoE switch does not match SFP module. | |
Packing List | CONTENT | QTY | UNIT |
52-port 10G uplink L3 managed industrial PoE switch | 1 | SET | |
AC Power Cable | 1 | PC | |
RJ45-DB9 Line | 1 | PC | |
Mounting Kits | 1 | SET | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
