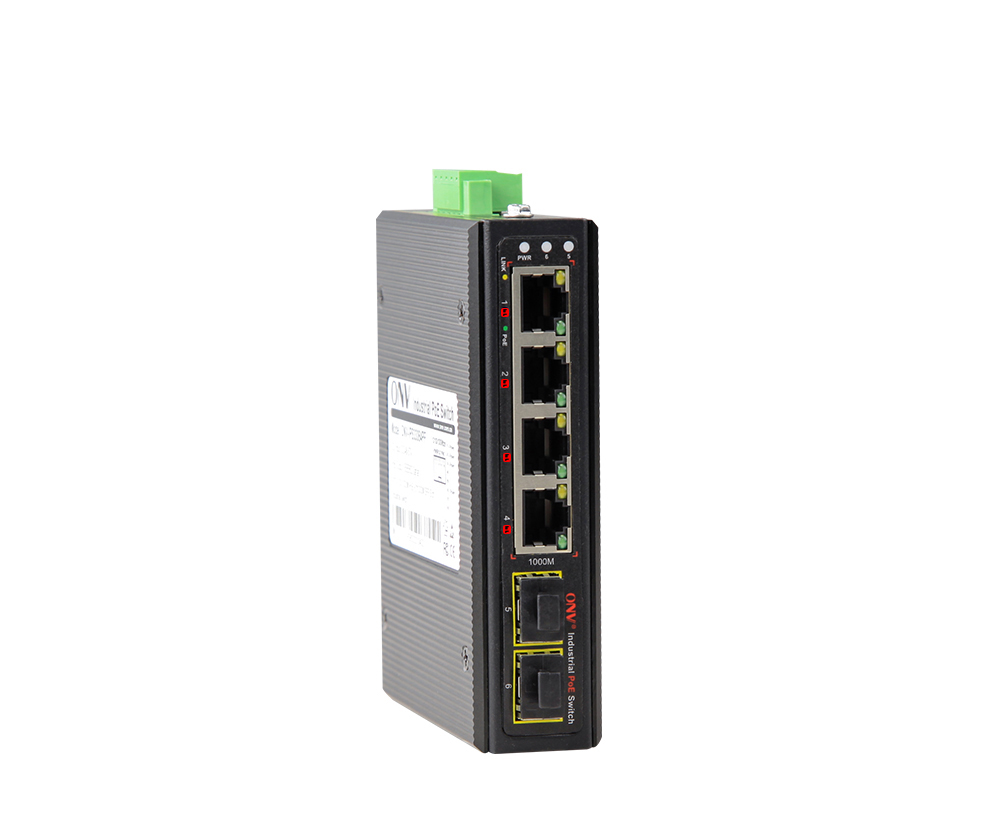

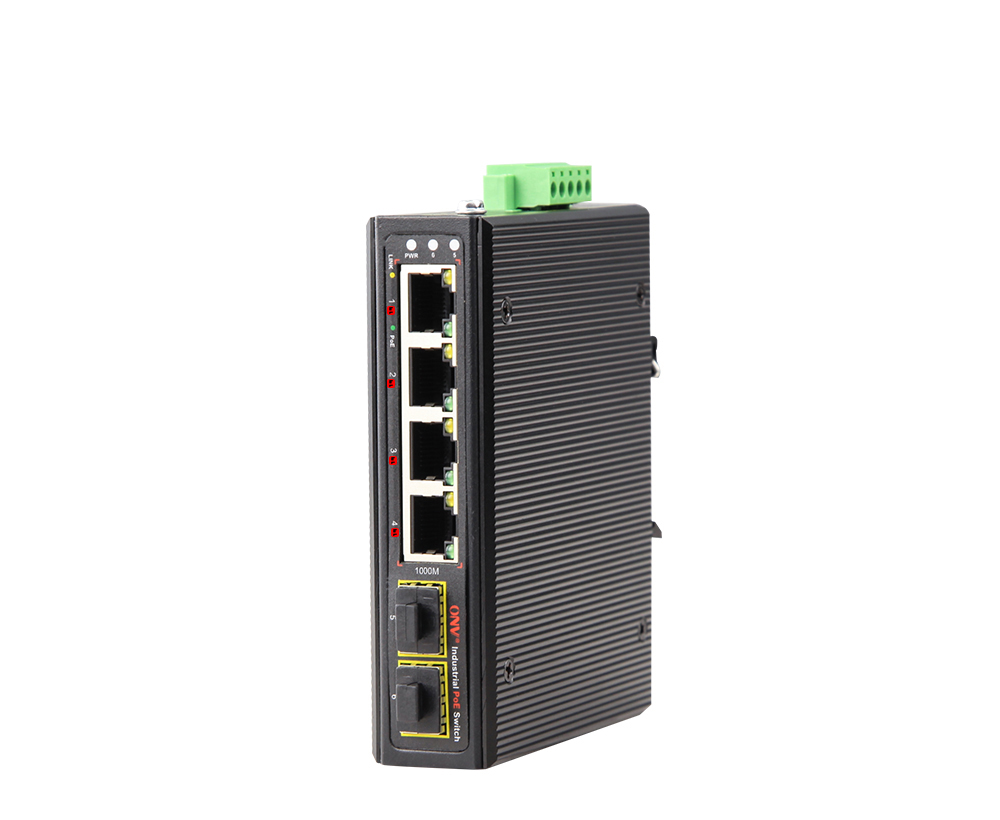

The ONV-IPS33064PF-bt is a full gigabit unmanaged bt industrial PoE fiber switch independently developed by ONV. It has 4*10/100/1000M RJ45 ports and 2*1000M SFP slot ports. Port 1-4 can support 71W PoE super high power output and backward compatible with the IEEE802.3af/at PoE standard. Single-port PoE power output is 95W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It provides stable and safe terminals for PTZ network domes, high-power wireless AP, high-power network multimedia speakers, and high-power POE lighting, etc. through a network cable to meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Full gigabit Ethernet access
◇ Gigabit RJ45 ports and SFP fiber ports combination, high-speed high-bandwidth connection, to meet the networking needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Smart PoE power supply function
◇ 4*10/100/1000Base-T RJ45 ports can support bt PoE power supply, meeting the demand for super high power PoE power supply in various scenarios.
◇ The maximum output power of single-port POE is 95W, and the backwards compatibility IEEE802.3af/at PoE power supply standard automatically identifies PoE devices for power supply without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
◇ CCC,CE, FCC, RoHS.
◇ Low power consumption, aluminum alloy casing, No fan.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link/Act, PoE.

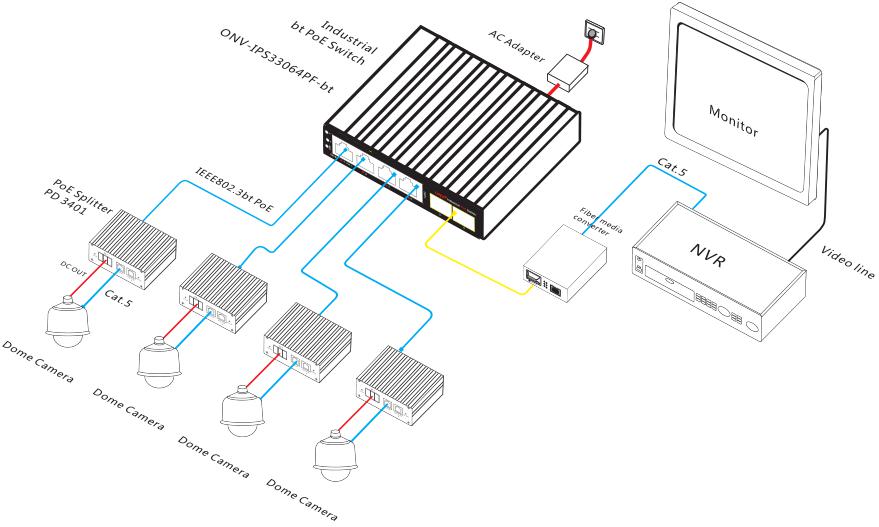

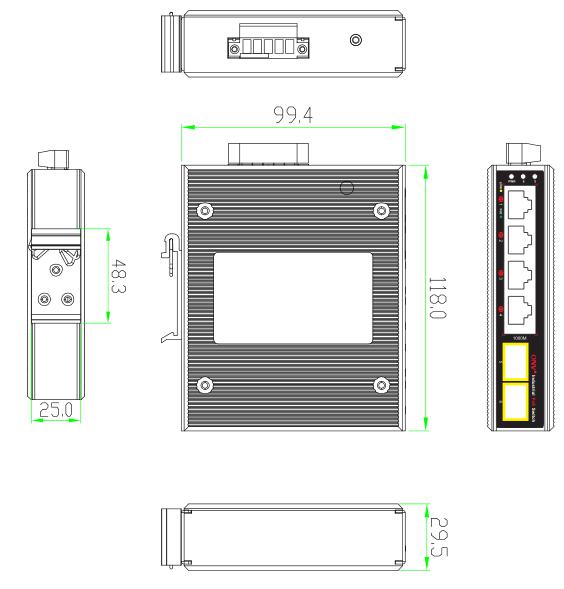

DIMENSION

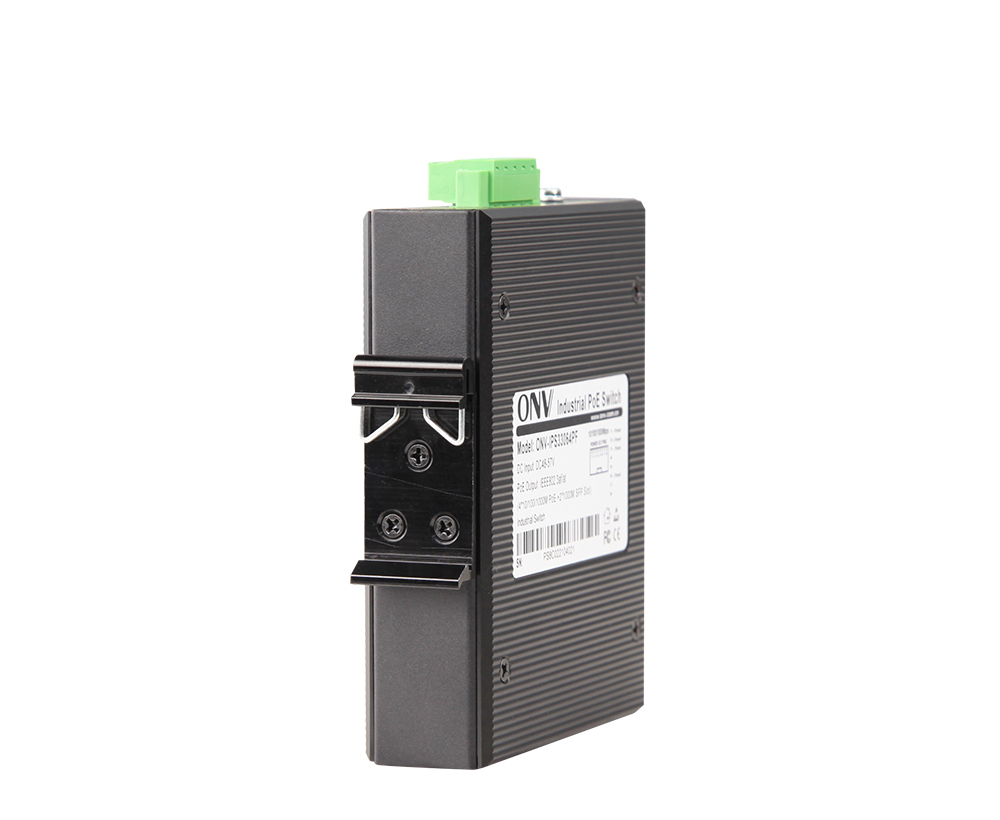

Model | ONV-IPS33064PF–bt | ONV-IPS33064PFG–bt |
Interface Characteristics | ||
Fixed Port | 4*10/100/1000M bt PoE ports (Data /Power) 2*1000M uplink SFP ports (Data) 2 groud of V+, V- redundant DC power interface (5P Phoenix terminal) | 4*10/100/1000M bt PoE ports (Data /Power) 1*10/100/1000M uplink RJ45 port (Data) 1*1000M uplink SFP port (Data) 2 groud of V+, V- redundant DC power interface (5P Phoenix terminal) |
Ethernet Port | 10/100/1000Base-TX auto-sensing,full/half duplex MDI/MDI-X self-adaption | |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
SFP Slot Port | Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
Optical Cable/ Distance | Multi mode: 850nm / 0 ~ 500M, Single mode: 1310nm/ 0 ~ 40KM, 1550nm 0 ~ 120KM. | |
Chip Parameter | ||
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3u 1000Base-T IEEE802.3z 1000Base-X,IEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 12Gbps (Non-blocking) | |
Forwarding Rate@64byte | 8.93Mpps | |
MAC | 2K | |
Buffer Memory | 2M | |
Jumbo Frame | 9.2K | |
LED Indicator | Power: PWR (green), network: Link (yellow), PoE: PoE (green) | |
PoE & Power | ||
PoE Port | Port 1 to 4 @bt POE and backward compatible with IEEE802.3af/at | |
Power Supply Pin | Defaul 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-) | |
Max Power Per Port | 95W; IEEE802.3af/at/bt | |
Total PWR / Input Voltage | 240W / (DC48-57V) | |
Power Consumption | Standby<6W, Full Load<240W | |
Input Voltage / Interface | 48-57VDC, 5P industrial phoenix terminal, anti-reverse protection | |
Power Supply | No, optional 48V/240W industrial power supply | |
Physical Parameter | ||
Operation TEMP / Humidity | -20~+75°C;5%~90% RH Non condensing | |
Storage TEMP / Humidity | -40~+85°C;5%~95% RH Non condensing | |
Dimension (L*W*H) | 119*100*30mm | |
Net /Gross Weight | <0.5kg /<0.7kg | |
Installation | Desktop, 35mm DIN rail mounting | |
Certification & Warranty | ||
Lightning protection / protection level | Lightning protection: 6KV 8/20us, Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A IEC61000-6-2(Common Industrial Standard) | |
Mechanical Properties | IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock), IEC60068-2-32 (free fall) | |
Certification | CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS | |
Warranty | 5 years, lifelong maintenance. | |
Model | Description | Configure Power Supply |
ONV-IPS33064PF-bt | Unmanaged bt industrial PoE switch with 4*10/100/1000M RJ45 ports and 2*1000M uplink SFP ports. Port 1-4 can support 71W super high power out and backward compatible with POE@IEEE802.3af/at. It can support dual DC redundant power input and DIN rail mounting. | 240W |
ONV-IPS33064PFG-bt | Unmanaged bt industrial PoE switch with 5*10/100/1000M RJ45 ports and 1*1000M uplink SFP port. Port 1-4 can support 71W super high power out and backward compatible with POE@IEEE802.3af/at. It can support dual DC redundant power input and DIN rail mounting. | 240W |
Note: bt industrial PoE fiber switch does not match the SFP optical module and power supply. | ||
PACKING LIST | CONTENT | QTY | UNIT |
6-port full gigabit bt industrial PoE fiber switch | 1 | SET | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
