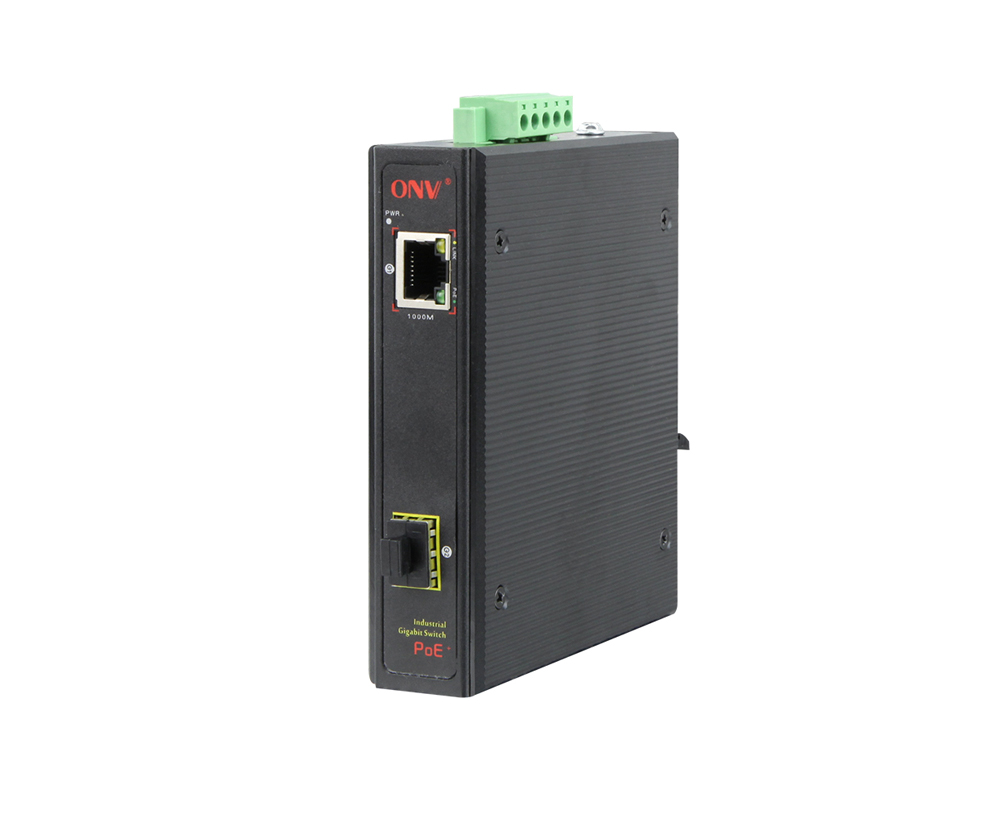

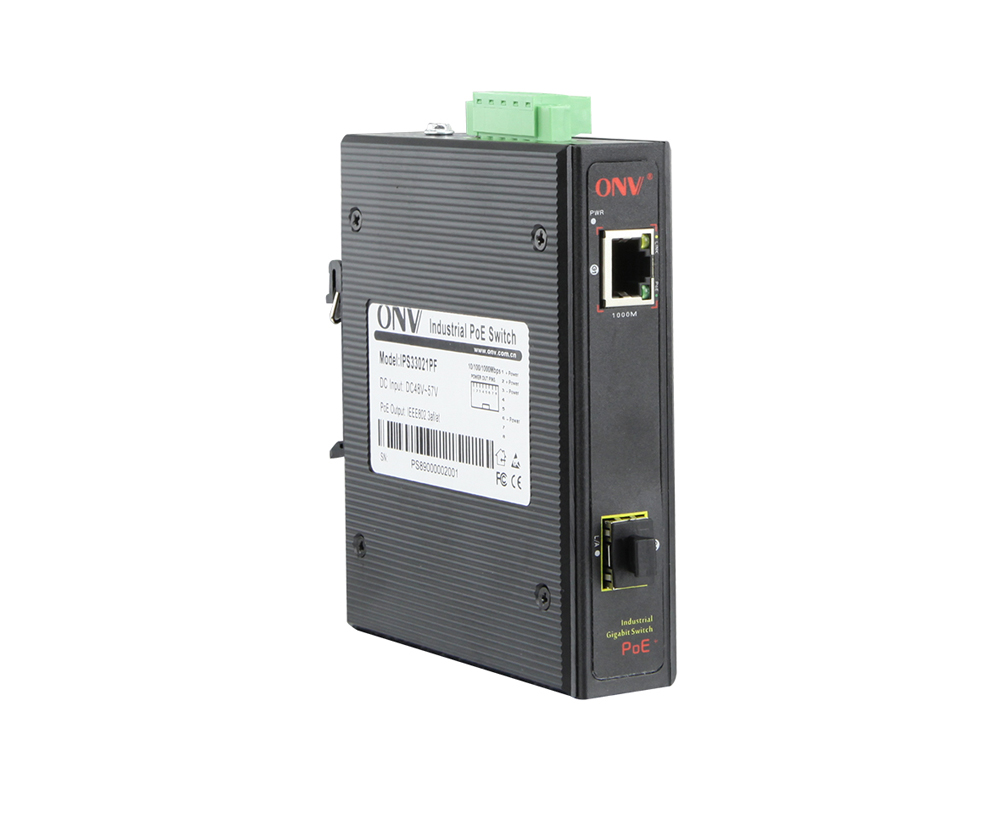

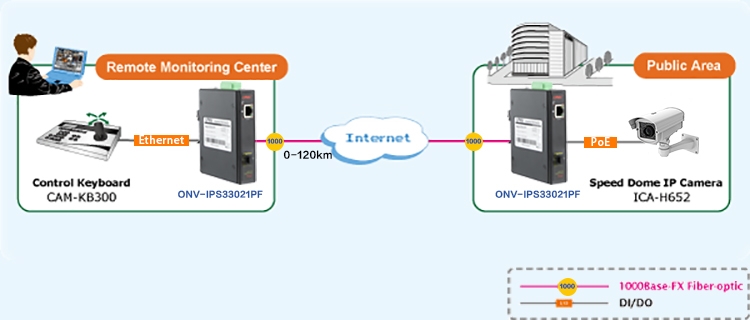

ONV-IPS33021PF series is a full gigabit industrial POE switch independent development by ONV. It has 1*10/100/1000M RJ45 port and 1*1000M SFP port, Port 1 can support IEEE 802.3af/at standard PoE power supply. the maximum PoE output power is less than 18W(at-36W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, web camera, VoIP phone, industrial sensor through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE

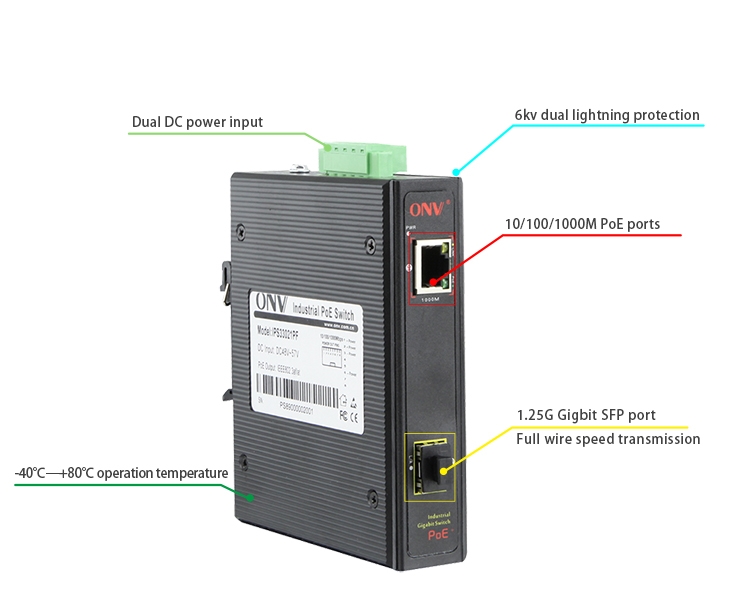

Gigabit access, uplink SFP fiber port
◇ All series support “Gigabit Ethernet port and Gigabit SFP port”combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Powerful port lightning protection, wide voltage input
◇ Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;
◇ Industrial dual power input
◇ DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V
Intelligent PoE power supply
◇ 1*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable

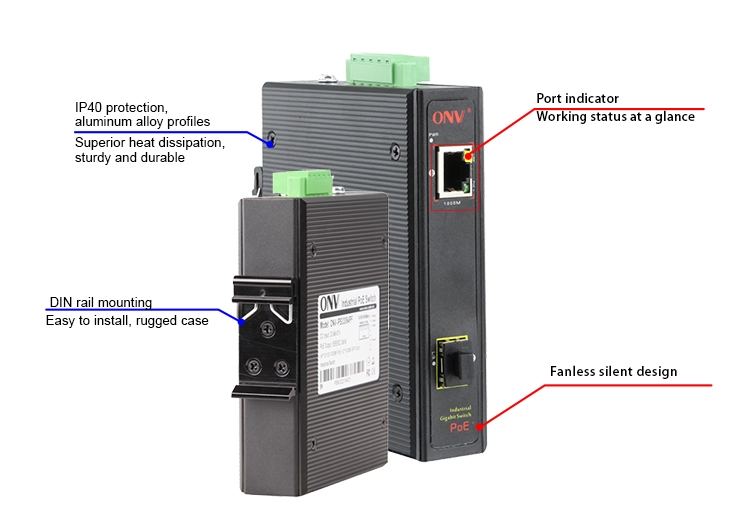

◇ Low power consumption, No fan, aluminum shell.
◇ CCC,CE, FCC, RoHS.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.
DIMENSION
Model | ONV-IPS33021PF | ONV-IPS33021PF-at |
Interface | 1*10/100/1000Base-T PoE port (Data/Power) 1*1000Base-X uplink SFP fiber slot port (Data) 2 set of V+, V- redundant DC power interface (5Pin Phoenix terminal) | |
POE Port | Port 1 | |
Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x | |
PoE Standard | IEEE802.3af/at | |
Ethernet Port Feature | Port 1 support 10/100/1000Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption | |
SFP Port | Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 8Gbps | |
Forwarding Rate@64byte | 2.98Mpps | |
MAC | 8K | |
Buffer Memory | 1M | |
Jumbo Frames | 10K | |
Twisted Pair Transmission | 10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
Optical Fiber Cable | Multi mode: 850nm 0~550M; single mode: 1310nm 0~40KM,1550nm 0-120KM. | |
Power Supply Pin | Default:1/2 (+), 3/6 (-) optional: 4/5(+),7/8(-) | |
Working Voltage | 48-57VDC; 5P industrial phoenix terminal, anti-reverse protection. | |
Max Power Per Port | 30W; IEEE802.3af/at | |
Total PWR / Input Voltage | 18W/48VDC | 36W/48VDC |
Power Consumption | Standby:<4W; Full load:<18W | Standby:<5W; Full load:<32W |
LED Indicator | Power: PWR (green), Network: Link ,Link/Act (yellow),PoE: PoE (green) | |
Power Supply | No, optional 48V/24W or 48V/36W industrial power supply | |
Operation TEMP / Humidity | –40~+80°C;5%~90% RH Non condensing | |
Storage TEMP / Humidity | -40~+85°C;5%~95% RH Non condensing | |

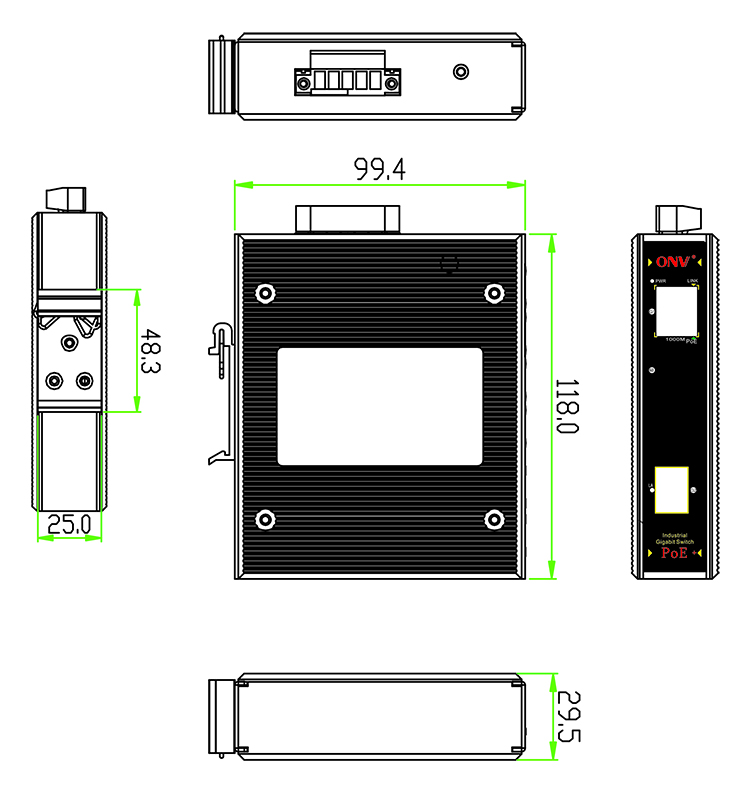

Dimension (L*W*H) | 119*100*30mm | |
Net /Gross Weight | <0.5kg/<0.7kg | |

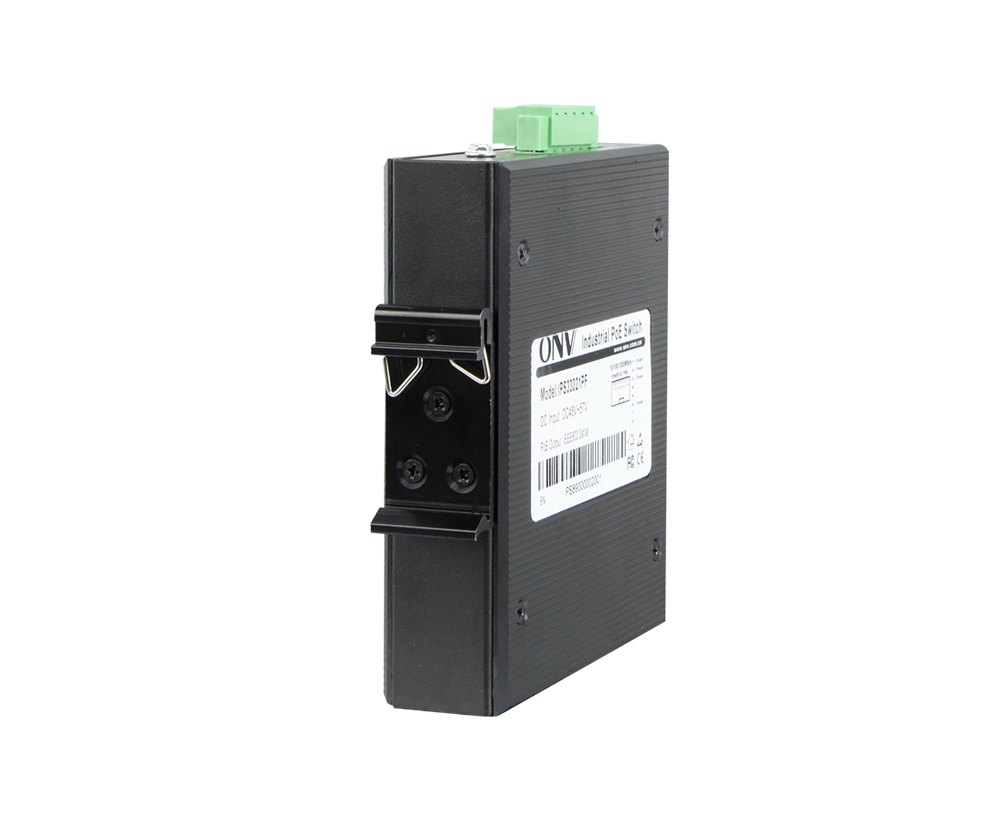

Installation | Desktop, 35mm DIN rail | |
Lightning protection / protection level | Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A IEC61000-6-2(Common Industrial Standard) | |
Mechanical Properties | IEC60068-2-6 (anti vibration),IEC60068-2-27 (anti shock),IEC60068-2-32 (free fall) | |
Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B;RoHS; | |
Warranty | 5 years , lifelong maintenance. | |
Model | Description | Recommended Power Supply |
ONV-IPS33021PF | Unmanaged industrial PoE fiber switch with 1*10/100/1000M RJ45 port and 1*1000M uplink SFP slot port, Port 1 can support IEEE802.3af/at PoE. Support dual DC power supply input and DIN rail mounting. | <18W |
ONV-IPS33021PF-at | <36W | |
Note: Industrial PoE switch does not match the SFP optical module and power supply. | ||
PACKING LIST | CONTENT | QTY | UNIT |
2-port full gigabit industrial PoE fiber switch | 1 | SET | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
