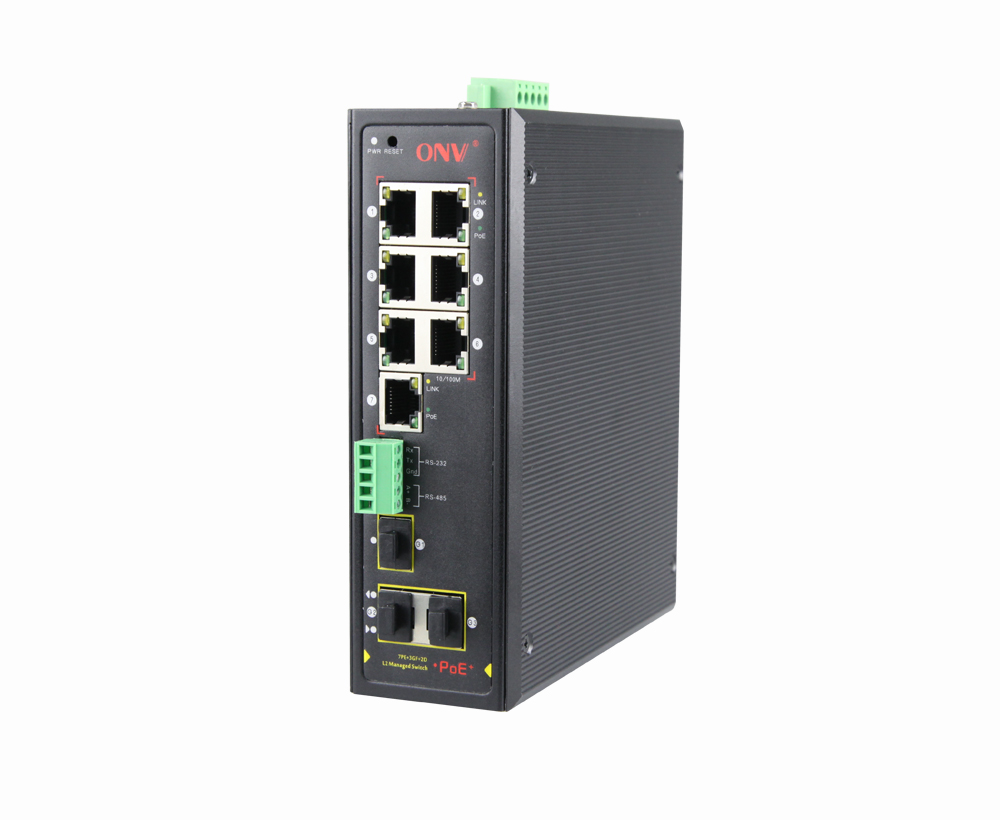

The ONV-IPS31107PFM-2D series is a L2 gigabit uplink managed industrial PoE data switch independently developed by ONV. It has 7*10/100Base-TX RJ45 ports and 3*1000Base-X uplink SFP slot ports. Port 1-7 can support IEEE 802.3af/at standard PoE power supply, single-port PoE power up to 30W, and the maximum PoE output power is 120W (at-240W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, web camera, VoIP phone, industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network.

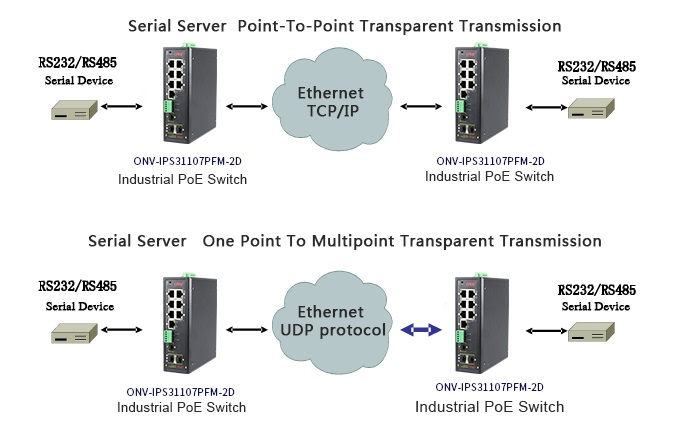

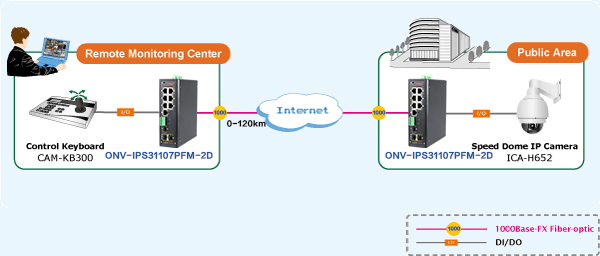

ONV-IPS31107PFM-2D has L2 network management function and provides serial to network function. It can convert RS232/485 serial port into TCP/IP network interface, it can realize data bidirectional transparent of RS232/485 serial port and TCP/IP network interface. transmission. The serial device can immediately have the TCP/IP network interface function, connect the network for data communication, and greatly expand the communication distance of the serial device.
FEATURE
10/100M Ethernet port access, Gigabit SFP uplink

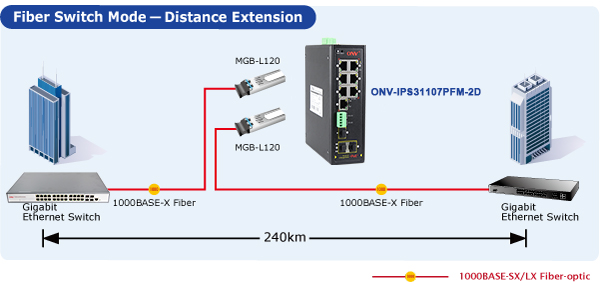

◇ Gigabit uplink SFP fiber port, easy to achieve high switching capacity and high rate transmission.
Provide data bidirectional transparent transmission, can realize serial port to TCP/IP, the users do not need to make any modifications to the original system.
◇ Support 1 channel RS485 serial port data to TCP/IP transparent transmission;
◇ Support 1 channel RS232 serial port data to TCP/IP transparent transmission;
Powerful port lightning protection, ultra-wide voltage input
◇ Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;
◇ Industrial dual power input
◇ DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V.
Intelligent PoE power supply function
◇ 7*10/100Base-TX RJ45 ports can support POE power supply to meet the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

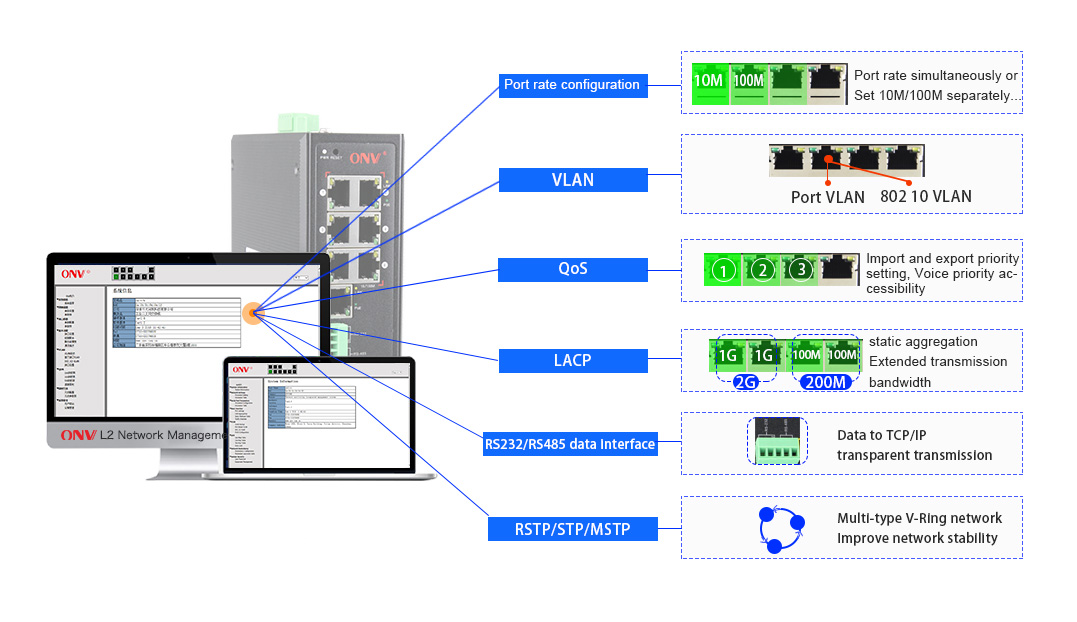

Strong business processing capability
◇ IGMP V1/V2 and IGMP Snooping.
◇ STP/RSTP/MSTP.
◇ Static and dynamic aggregation.
◇ IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration.
◇ Support IEEE 802.1Q VLAN, users can flexibly divide VLANs according to requirements and support port-based VLANs.
◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.
◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

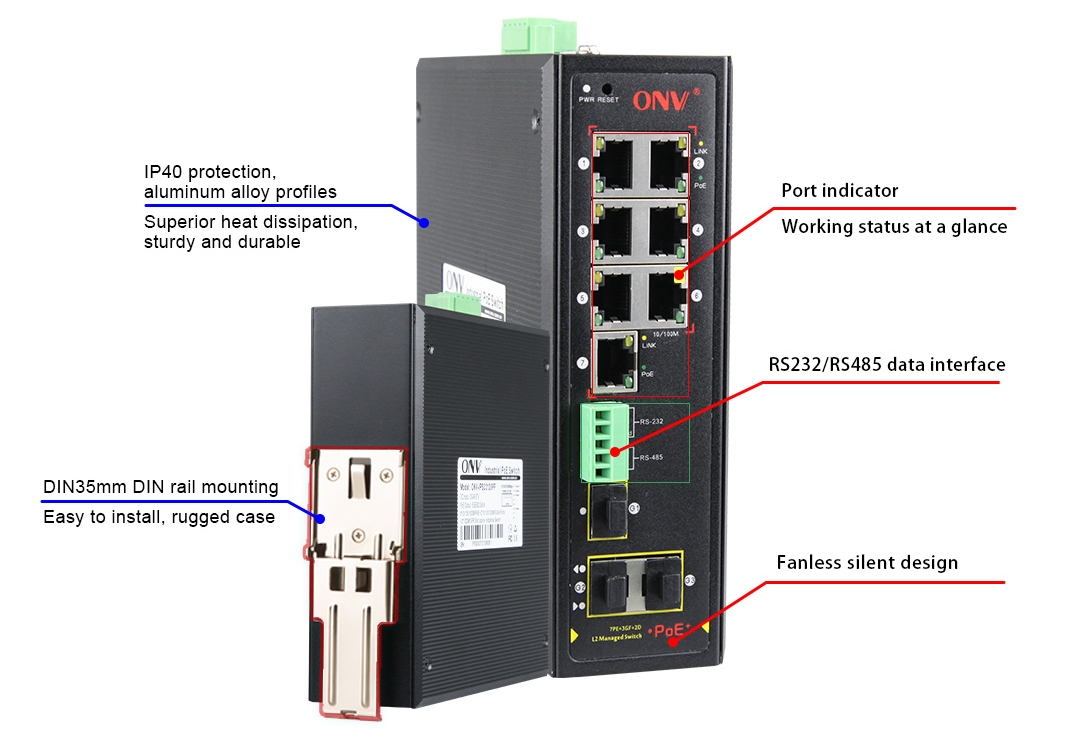

Stable and reliable
◇ Low power consumption, fanless mute design, aluminum alloy metal shell.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ CCC,CE, FCC, RoHS.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link,L/A,PoE.
Easy operation and maintenance management

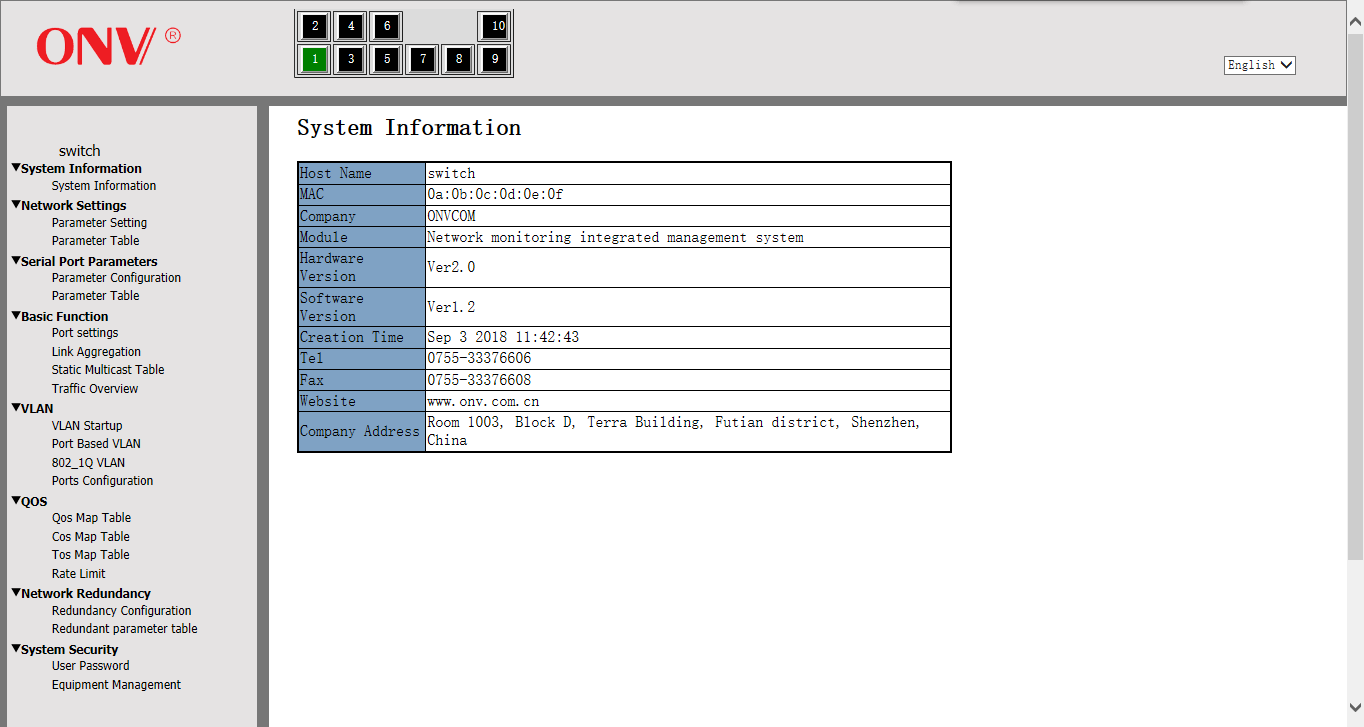

◇ Support web management and maintenance.

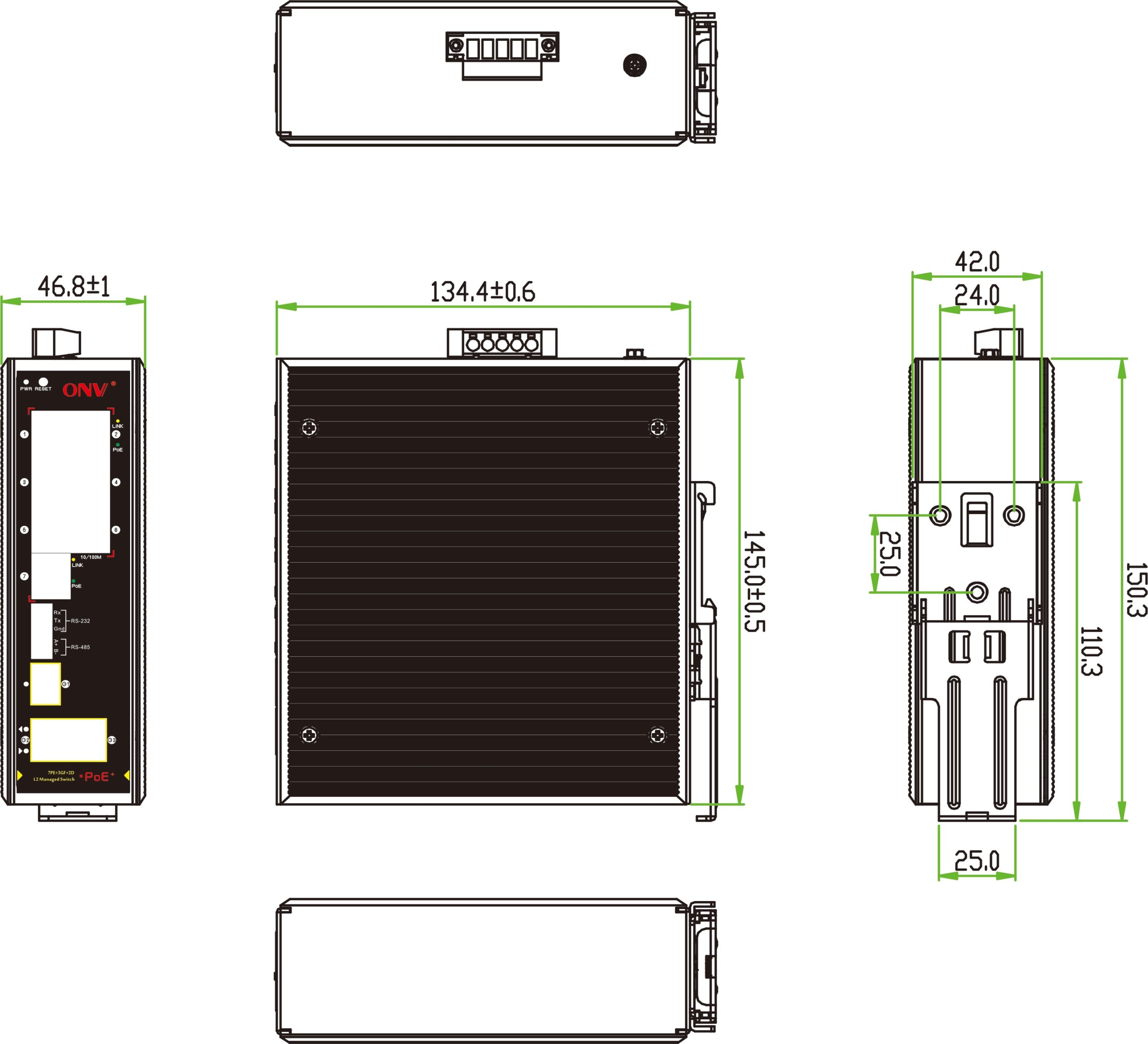

DIMENSION
Model | ONV-IPS31107PFM-2D | ONV-IPS31107PFM-2D-at |
Interface Characteristics | ||
Fixed Port | 7*10/100Base-TX PoE ports (Data/Power) 3 *1000Base-X uplink SFP slot ports (Data) 1*RS485 data port (115200,N,8,1) 1*RS232 data port 2 sets of V+, V- redundant DC power interface (5P phoenix terminal) | |
Ethernet Port | Port 1-7 support 10/100Base-TX,auto-sensing,Full/half duplex MDI/MDI-X self-adaption | |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
Optical Fiber Port | Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
Optical Cable/ Distance | Multi mode: 850nm / 0 ~ 500M, (1.25G) single mode: 1310nm / 0 ~ 40KM, 1550nm / 0 ~ 120KM. | |
Chip Parameter | ||
Network Management Type | L2 | |
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX , IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 64Gbps (Non-blocking) | |
Forwarding Rate@64byte | 5.51Mpps | |
MAC | 8K | |
Buffer Memory | 1M | |
Jumbo Frame | 1632bytes | |
LED Indicator | Power /System: SYS (green), Network: Link (yellow), PoE: PoE (green), SFP port: L/A (green) | |
Reset Switch | Yes, One-button factory reset | |
PoE & Power | ||
PoE Port | Port 1 to 7 | |
Power Supply Pin | Default: 1/2 (+), 3/6 (-) | |
Max Power Per Port | 30W, IEEE802.3af/at | |
Total PWR / Input Voltage | 120W /48VDC | 240W /48VDC |
Power Consumption | Standby<10W, Full load<120W | Standby<12W, Full load<240W |
Working Voltage | 48-57VDC, 5 Pin industrial phoenix terminal, support anti-reverse protection. | |
Power Supply | No, optional 48V/120W or 48V/240W industrial power supply | |
Physical Parameter | ||
Operation TEMP / Humidity | –40~+80°C;5%~90% RH Non condensing | |
Storage TEMP / Humidity | -40~+85°C;5%~95% RH Non condensing | |
Dimension (L*W*H) | 165*148*54mm | |
Net /Gross Weight | <1.0kg / <1.3kg | |
Installation | Desktop, DIN rail | |
Certification & Warranty | ||
Lightning protection / protection level | Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A IEC61000-6-2(Common Industrial Standard) | |
Mechanical Properties | IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) | |
Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS | |
Warranty | 5 years, lifelong maintenance. | |
Network Management Features | ||
Interface | IEEE802.3X (Full-duplex) Broadcast storm control based on port speed The speed limit of the message flow in the access port. The minimum particle size is 64Kbps. | |
Serial Port
| Serial port number selection and configuration Serial port basic parameter setting (baud rate, data bit, parity, stop bit, minimum forwarding frame, maximum forwarding delay) Default (115200, 8, N, 1) Serial session setting (connection ID, working mode TCP Server/Client, local port number, remote port information configuration) | |
VLAN | VLAN based on port, VLAN based on IEEE802.1q,VLAN QinQ | |
Port Aggregation | LACP, Static aggregation Max 4 aggregation groups and 8 ports per group. | |
Spanning Tree | STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) | |
Multicast | Supports MAC port-based static multicast groups | |
Image | Bi-directional traffic mirroring supporting the basic port | |
QoS | Flow-based Rate Limiting Flow-based Packet Filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS,Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) | |
DHCP | DHCP Client, DHCP Server | |
Management | Login Record One-key recovery Web Management (HTTPS) TFTP file upload management | |
System | Category 5 Ethernet network cable Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later; TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network | |
Model | Description | Recommended Power Supply |
ONV-IPS31107PFM-2D | L2 managed industrial PoE data switch with 7*10/100M PoE ports and 3*1000M SFP slot ports, Port 1-7 can support IEEE802.3af/at PoE standard. Support dual DC power supply and DIN rail mounting. | 120W |
ONV-IPS31107PFM-2D–at | 240W | |
Note:Industrial PoE data switch do not match SFP optical module power supply by default. | ||
PACKING LIST | CONTENT | QTY | UNIT |
10-port gigabit uplink managed industrial PoE data switch | 1 | SET | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
