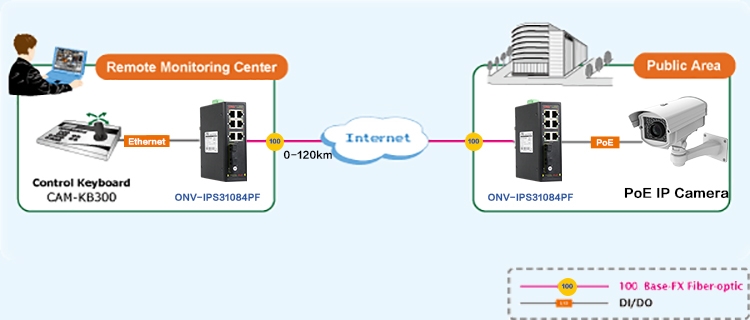

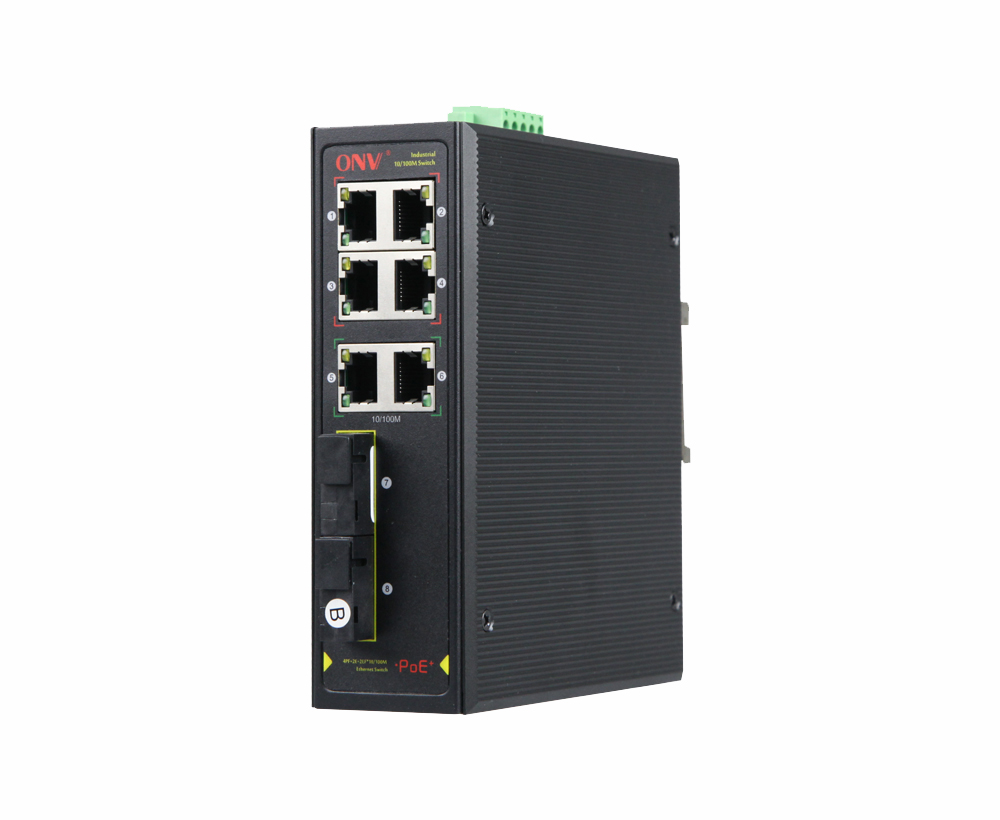

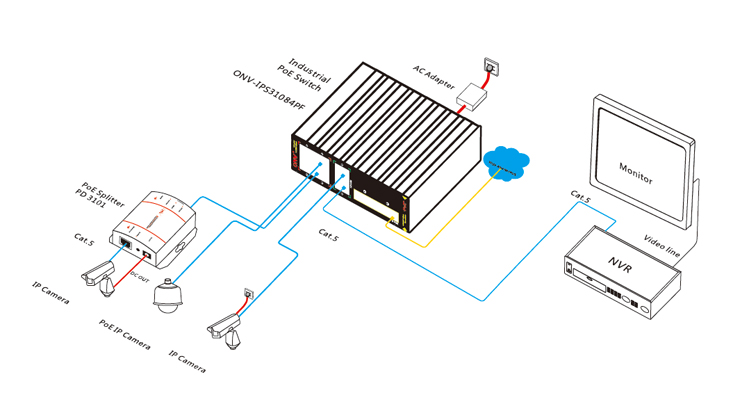

The ONV-IPS31084PF series is a 10/100M industrial PoE fiber switch independently developed by ONV. It has 6*10/100M RJ45 ports and 2*155M SC slot port, Port 1-4 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 60W(at-120W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, web camera, VoIP phone, industrial sensor through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
10/100M TP/SC port, fast Ethernet
◇ All series support “10/100M RJ45 port and 155M SC fiber port” combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Powerful port lightning protection, wide voltage input
◇ Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;
◇ Industrial dual power input
◇ DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V
Intelligent PoE power supply
◇ 4*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable

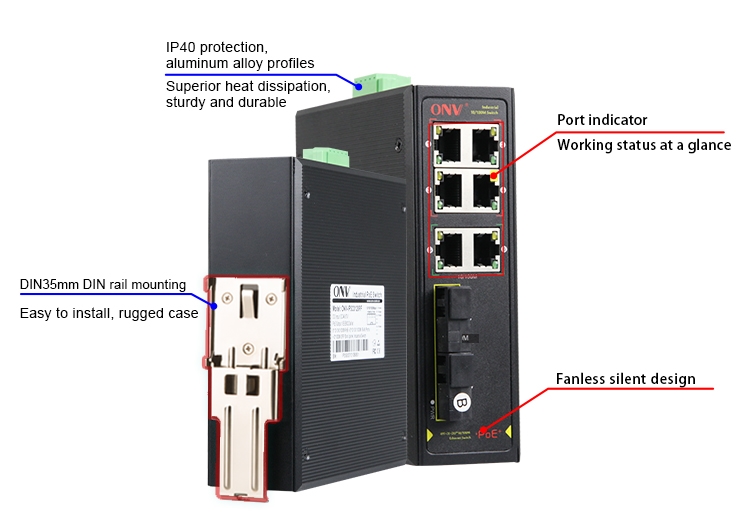

◇ Low power consumption, no fan , aluminum casing.
◇ CCC,CE, FCC, RoHS.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.
DIMENSION
Model | ONV-IPS31084PF | ONV-IPS31084PF-at |
Interface Characteristics | ||
Fixed Port | 4*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX uplink RJ45 ports(Data) 2*155M uplink SC slot ports (combo ports)(Data) 2 set of V+, V- redundant DC power interface (5P Phoenix terminal) | |
Ethernet Port | Port 1-4 support 10/100Base-TX,auto-sensing, Full/half duplex MDI/MDI-X self-adaption | |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
SC Slot Port | Default optical module is single-mode dual-fiber 20km, SC port | |
Optical Cable | Multi mode: 850nm ,0 ~ 550M, 1310nm,0~2km single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. | |
Chip Parameter | ||
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX,IEEE802.3u 100Base-FX IIEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 1.6Gbps | |
Forwarding Rate@64byte | 1.19Mpps | |
MAC | 1K | |
Buffer Memory | 768K | |
Jumbo Frame | 1632byte | |
LED Indicator | Power:PWR(green), network ;Link,(yellow), POE: PoE (green), Fiber port : L/A (green) | |
PoE & Power | ||
PoE Port | Port 1 to 4 IEEE802.3af/at @ POE | |
Power Supply Pin | Defaul :1/2 (+), 3/6 (-),optional:4/5 (+), 7/8 (-) | |
Max Power Per Port | 30W; IEEE802.3af/at | |
Total PWR / Input Voltage | 60W/48VDC | 120W/48VDC |
Power Consumption | Standby:<3W;Full load:<60W | Standby:<4W;Full load:<120W |
Power Supply | No, optional 48V/60W or 48V/120W industrial power supply | |
Working Voltage | 48-57VDC; 5P industrial Phoenix terminal, support anti-reverse protection. | |
Physical Parameter | ||
Operation TEMP / Humidity | –40~+80°C;5%~90% RH Non condensing | |
Storage TEMP / Humidity | -40~+85°C;5%~95% RH Non condensing | |
Dimension (L*W*H) | 145*134.5*47.5mm | |
Net /Gross Weight | <0.8kg / <1.0kg | |

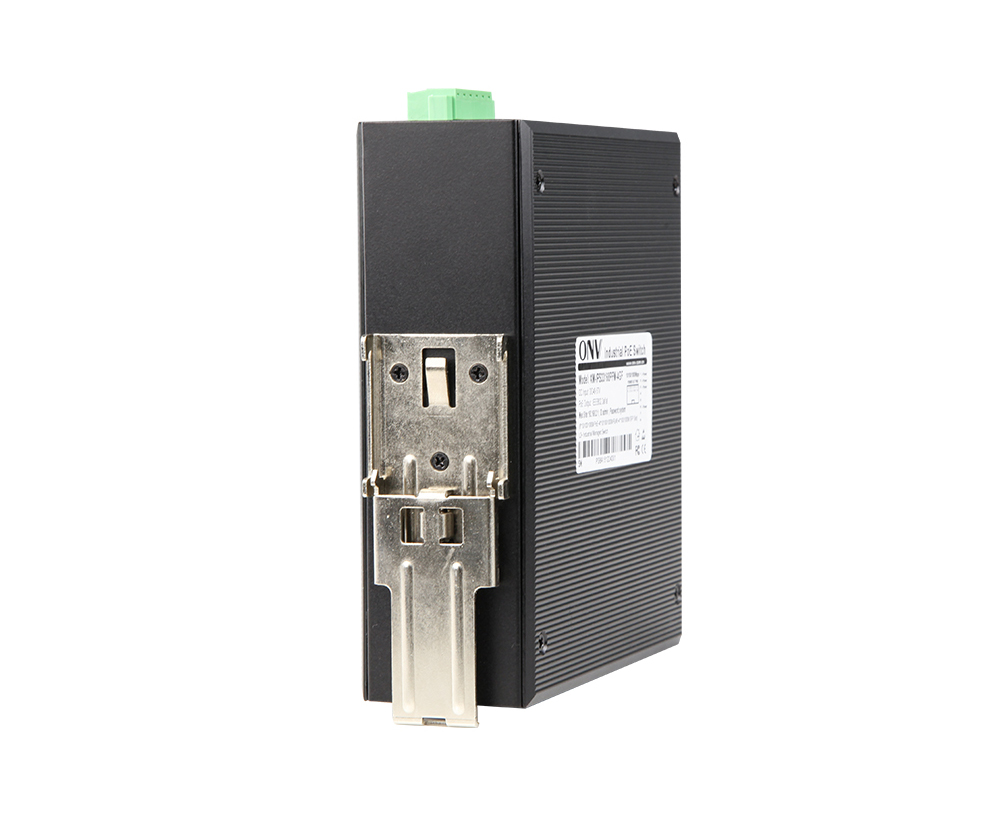

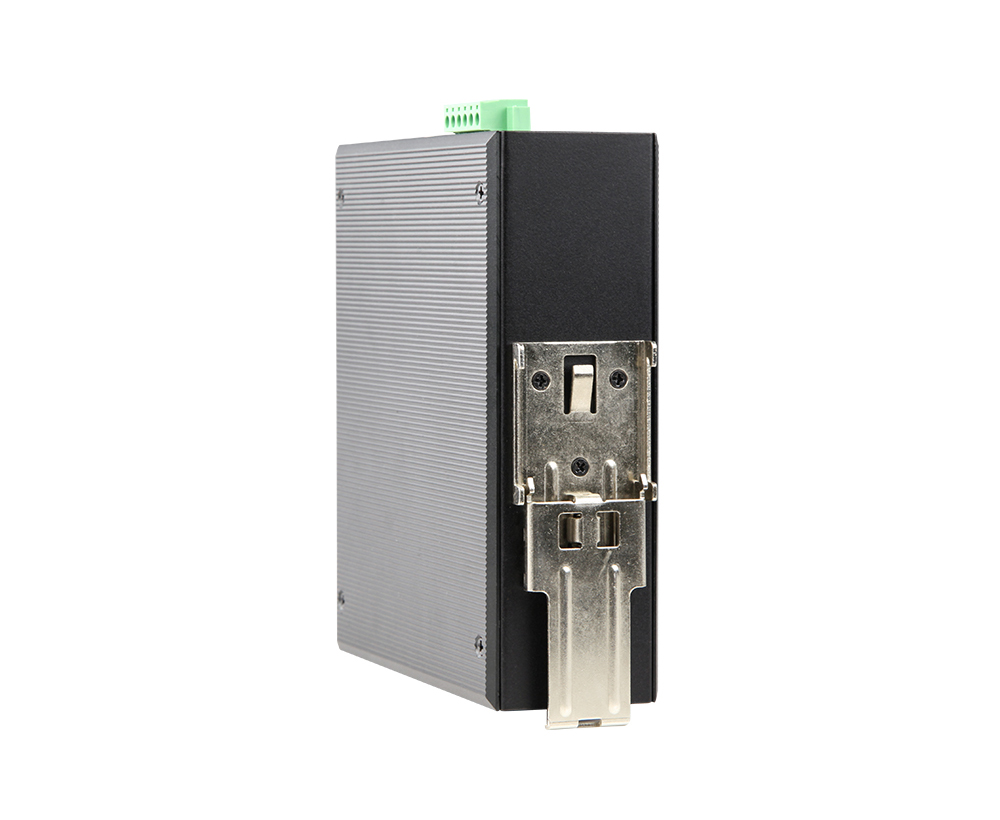

Installation | Desktop, DIN rail | |
Certification & Warranty | ||
Lightning protection / protection level | Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A IEC61000-6-2(Common Industrial Standard) | |
Mechanical Properties | IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) | |
Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; | |
Warranty | 5 years, lifelong maintenance. | |
Model | Description | Recommended Power Supply |
ONV-IPS31084PF | Unmanaged industrial PoE fiber switch with 6*10/100M RJ45 ports and 2*155M SC ports, Port 1-4 can support PoE IEEE802.3af/at. By default, the SC port 1310mm/20km single-mode dual-fiber module. It can support dual DC redundant power input and DIN rail mounting. | 60W |
ONV-IPS31084PF-at | 120W | |
ONV-IPS31084PF-M | Unmanaged industrial PoE fiber switch with 6*10/100M RJ45 ports and 2*155M SC ports, Port 1-4 can support PoE IEEE802.3af/at. By default, the SC port 850nm/0.5km or 1310nm/2km multi-mode dual fiber module. It can support dual DC redundant power input and DIN rail mounting. | 60W |
ONV-IPS31084PF-M-at | 120W | |
ONV-IPS31084PF-A | Unmanaged industrial PoE fiber switch with 6*10/100M RJ45 ports and 2*155M SC ports, Port 1-4 can support PoE IEEE802.3af/at. By default, the SC port 1310nm/20km single-mode single-fiber module. It can support dual DC redundant power input and DIN rail mounting. | 60W |
ONV-IPS31084PF-A-at | 120W | |
ONV-IPS31084PF-B | Unmanaged industrial PoE fiber switch with 6*10/100M RJ45 ports and 2*155M SC ports, Port 1-4 can support PoE IEEE802.3af/at. By default, the SC port 1550nm/20km single-mode single-fiber module .It can support dual DC redundant power input and DIN rail mounting. | 60W |
ONV-IPS31084PF-B-at | 120W | |
Note: Industrial PoE switch does not match the SFP optical module and power supply. | ||
PACKING LIST | CONTENT | QTY | UNIT |
8-port 10/100M industrial PoE fiber switch | 1 | SET | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
