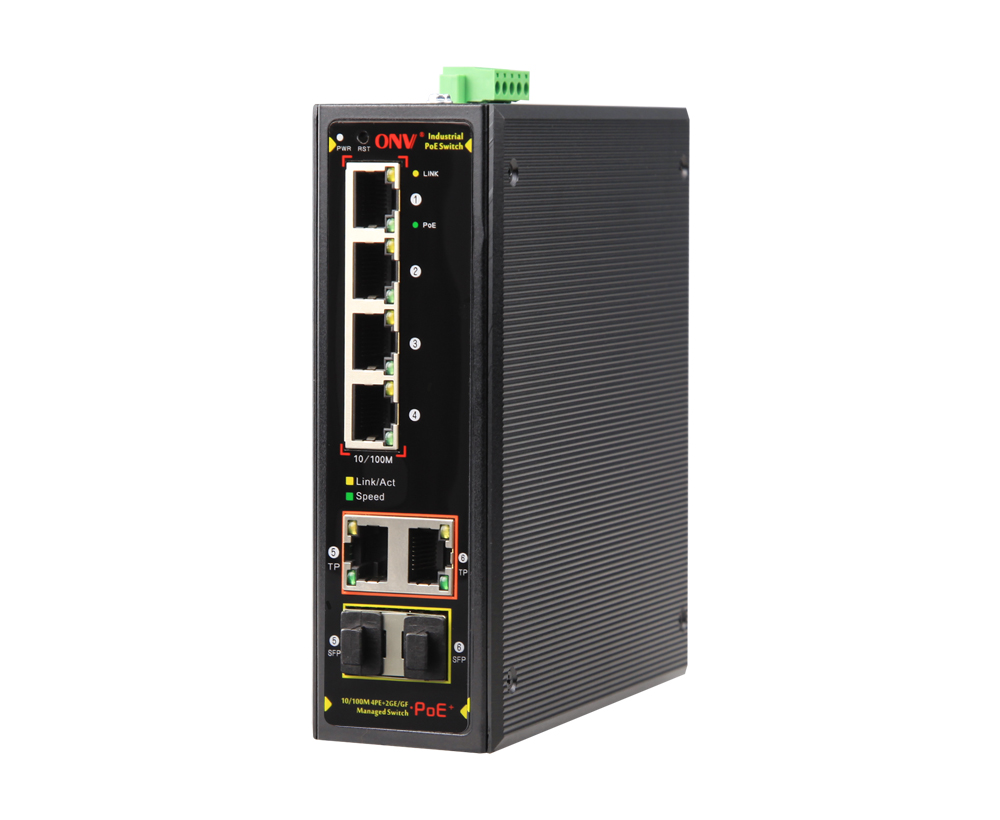

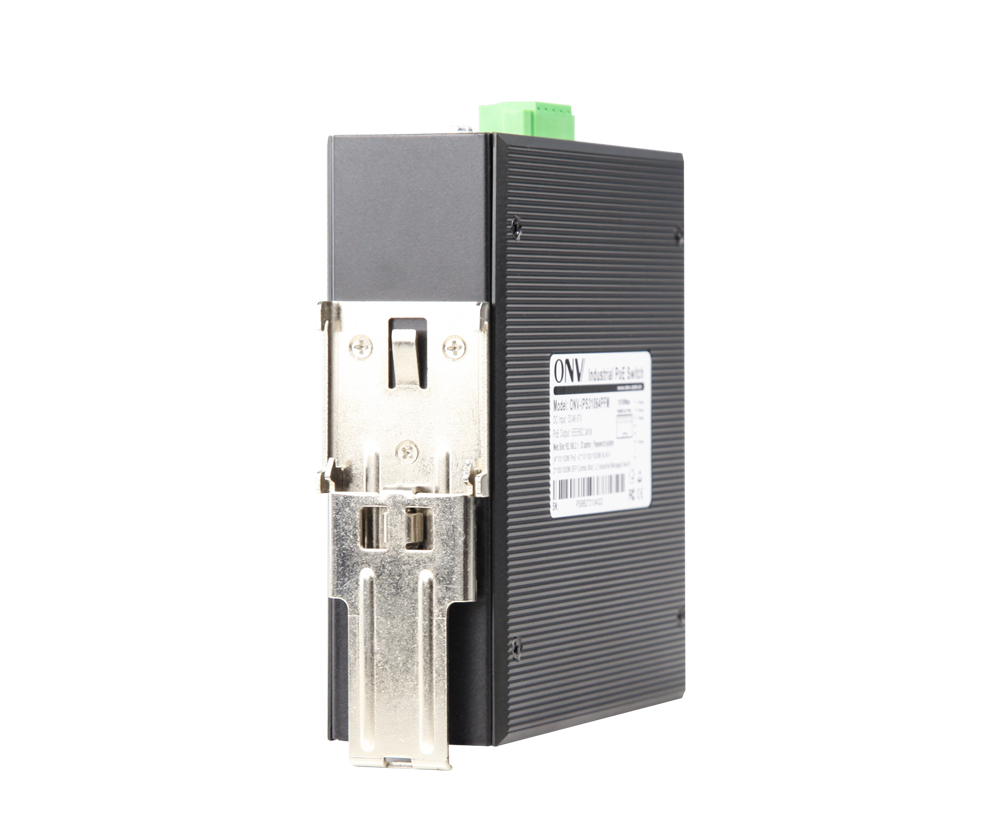

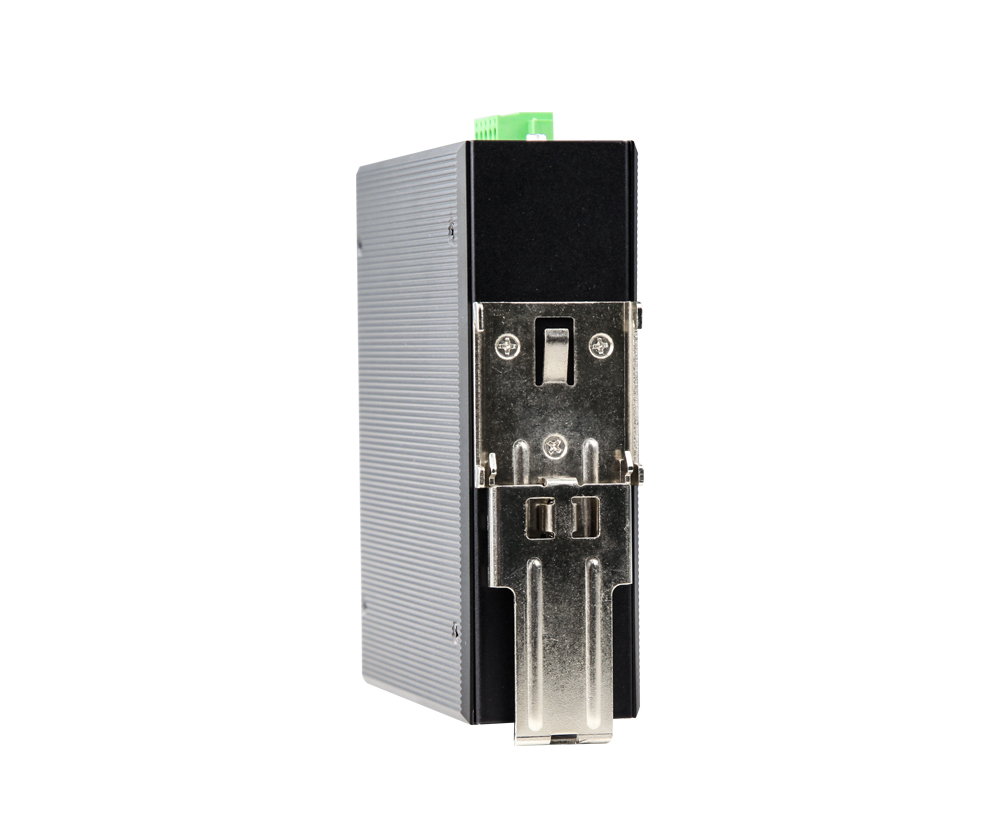

The ONV-IPS31064PFM series is a gigabit uplink L2 managed industrial PoE fiber switch independently developed by ONV. It has 4*10/100Base-TX RJ45 ports and 2*100/1000Base-T(X) combo ports , Port 1-4 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 60W(at-120W). Each port can realize line-speed forwarding.
The ONV-IPS31064PFM series adopts a new generation of high-performance hardware and software platforms to provide flexible and cost-effective 100Mbps access and uplink ports. It can support security protection mechanisms, ACL/QoS policies, and VLAN functions, and is easy to manage and maintain. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera,industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network.
FEATURE
100M access, Gigabit combo port uplink
◇ All series support “10/100M Ethernet port and Gigabit combo port”combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Intelligent PoE power supply
◇ 4*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

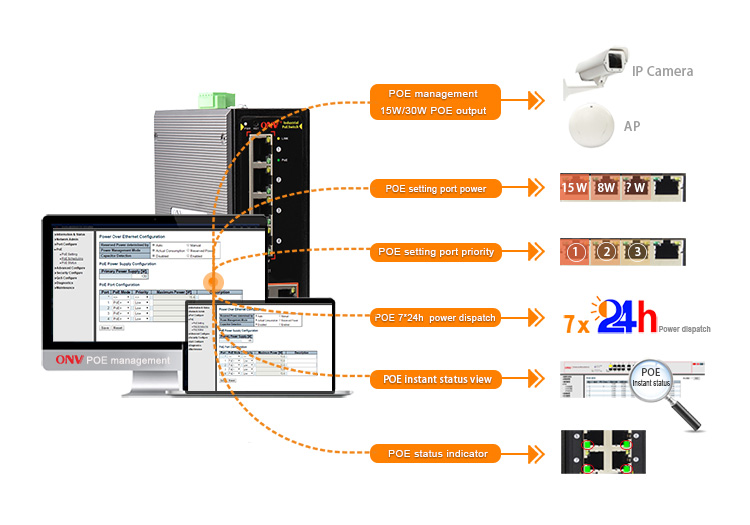

◇ PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.

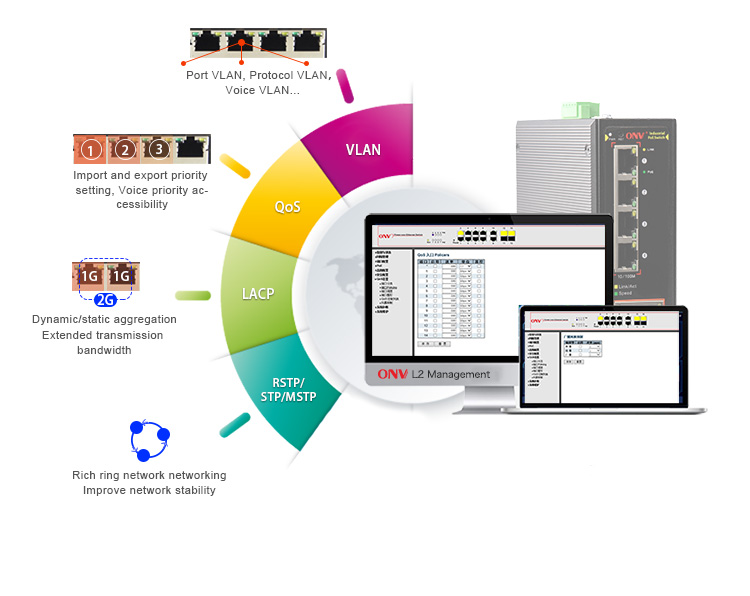

Strong business processing capability
◇ IEEE802.1Q VLAN, flexible VLAN division,Voice VLAN and QinQ configuration.
◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.
◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
◇ IGMP V1/V2 and IGMP Snooping.

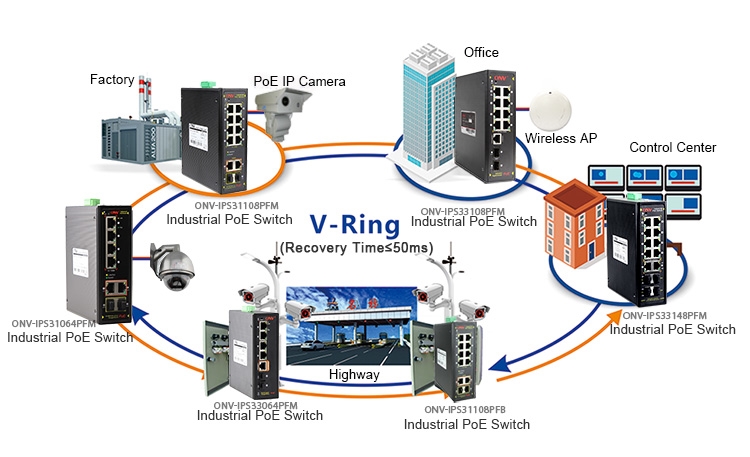

◇ ERPS/STP/RSTP/MSTP.
◇ Static and dynamic aggregation.
Security
◇ 802.1X authentication.
◇ Port isolation,Storm control.
◇ IP-MAC-VLAN-Port binding.

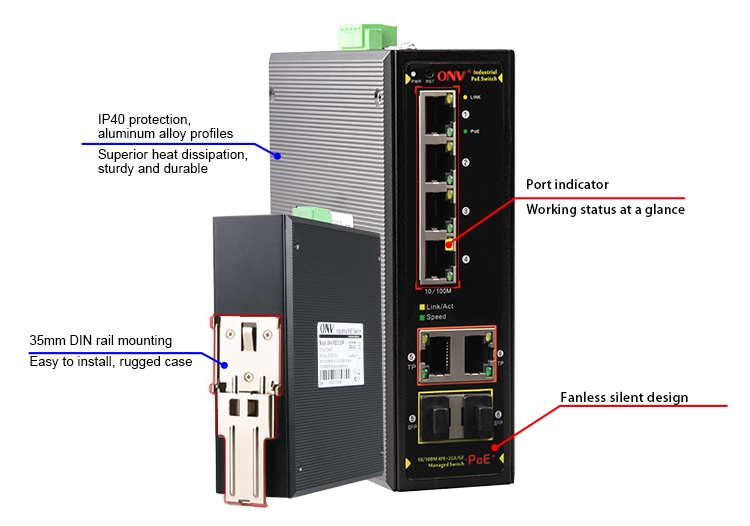

Stable and reliable
◇ Low power consumption, no fan , aluminum casing.
◇ CCC,CE, FCC, RoHS.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.
Easy operation and maintenance management
◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
◇ HTTPS, SSLV3, and SSHV1/V2.
◇ RMON, system log, LLDP, and port traffic statistics.
◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.
DIMENSION
Model | ONV-IPS31064PFM | ONV-IPS31064PFM-at |
Interface Characteristics | ||
Fixed Port | 4*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports(Data) 2*100/1000Base-X uplink SFP slot ports (combo ports)(Data) 2 set of V+, V- redundant DC power interface (5P Phoenix terminal) | |
Ethernet Port | Port 1-4 support 10/100Base-TX, Port 5-6 support 10/100/1000Base-T(X) auto-sensing, Full/half duplex MDI/MDI-X self-adaption | |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
SFP Slot Port | Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
Optical Cable | Multi mode: 850nm 0 ~ 500M,single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. | |
Chip Parameter | ||
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 64Gbps | |
Forwarding Rate@64byte | 3.57Mpps | |
MAC | 16K | |
Buffer Memory | 4M | |
Jumbo Frame | 10K | |
LED Indicator | Power:PWR(green), network ;Link,link/Act(yellow), POE: PoE (green), Speed: Speed (green) | |
PoE & Power | ||
PoE Port | Port 1 to 4 IEEE802.3af/at @ POE | |
PoE Management | Distribution for PoE output power of each port PoE working status Delay start of power supply Scheduling of PoE operation and time | |
Power Supply Pin | Defaul :1/2 (+), 3/6 (-),optional:4/5 (+), 7/8 (-) | |
Max Power Per Port | 30W; IEEE802.3af/at | |
Total PWR / Input Voltage | 60W/48VDC | 120W/48VDC |
Power Consumption | Standby:<5W;Full load:<60W | Standby:<6W;Full load:<120W |
Power Supply | No, optional 48V/60W or 48V/120W industrial power supply | |
Working Voltage | 48-57VDC; 5P industrial Phoenix terminal, support anti-reverse protection. | |
Physical Parameter | ||
Operation TEMP / Humidity | –40~+80°C;5%~90% RH Non condensing | |
Storage TEMP / Humidity | -40~+85°C;5%~95% RH Non condensing | |

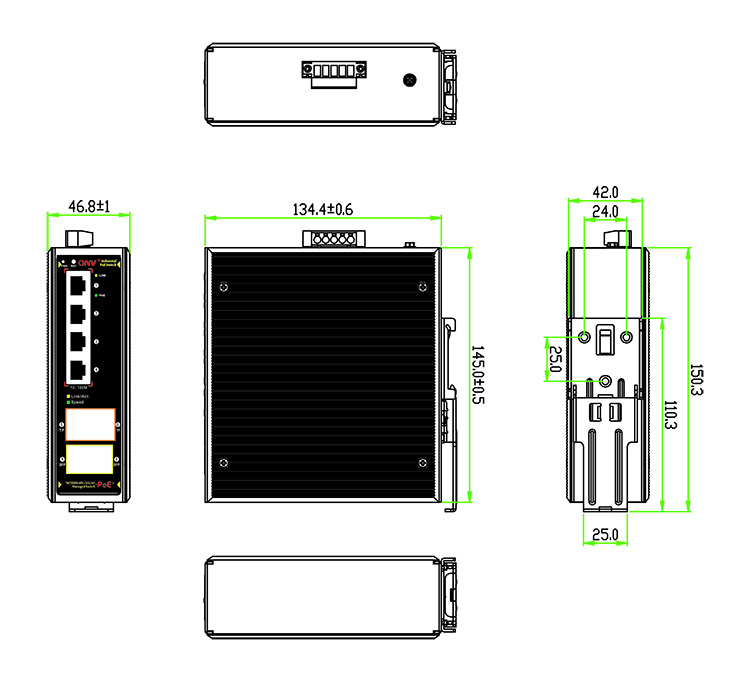

Dimension (L*W*H) | 145*134.5*47.5mm | |
Net /Gross Weight | <0.8kg / <1.0kg | |
Installation | Desktop, DIN rail | |
Certification & Warranty | ||
Lightning protection / protection level | Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A IEC61000-6-2(Common Industrial Standard) | |
Mechanical Properties | IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) | |
Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; | |
Warranty | 5 years , lifelong maintenance. | |
Network Management Features | ||
Interface | IEEE802.3X (Full-duplex) Broadcast storm control based on port speed The speed limit of the message flow in the access port. The minimum particle size is 64Kbps. | |
VLAN | 4K VLAN based on port, IEEE802.1q VLAN based on protocol QinQ configuration | |
Port Aggregation | LACP,Manual aggregation Max 3 aggregation groups and 8 ports per group. | |
Spanning Tree | STP (IEEE802.1d),RSTP (IEEE802.1w),MSTP (IEEE802.1s) | |
Multicast | IGMP Snooping v1/v2/v3, Max 64 multicast groups, Fast log out MLD Snooping v1/v2,Multicast VLAN | |
Port Mirroring | Bidirectional data mirroring based on port | |
QoS | Diff-Serv QoS 8*Output queues of each port 802.1p/DSCP priority mapping Queue Scheduling Algorithm (SP,WRR,SP+WRR) Priority Mark/Remark | |
ACL | L2-L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range and VLAN etc. Port-based Issuing ACL. | |
Security | Port isolation Broadcast storm control Port+MAC binding, IP+MAC+port binding | |
DHCP | DHCP Client,DHCP Snooping,DHCP Relay | |
System&Management | Web Management (HTTPS) SNMP V1/V2C/V3 One-key recovery NTP Login Record | |
Model | Description | Recommended Power Supply |
ONV-IPS31064PFM | L2 managed industrial PoE fiber switch with 4*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports and 2*100/1000M uplink SFP slot ports (combo port), Port 1-4 can support IEEE802.3af/at PoE. Support DC dual power supply input and DIN rail mounting. | 60W |
ONV-IPS31064PFM-at | 120W | |
Note: Industrial PoE switch does not match the SFP optical module and power supply. | ||
PACKING LIST | CONTENT | QTY | UNIT |
6-port gigabit uplink managed industrial PoE switch | 1 | SET | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
