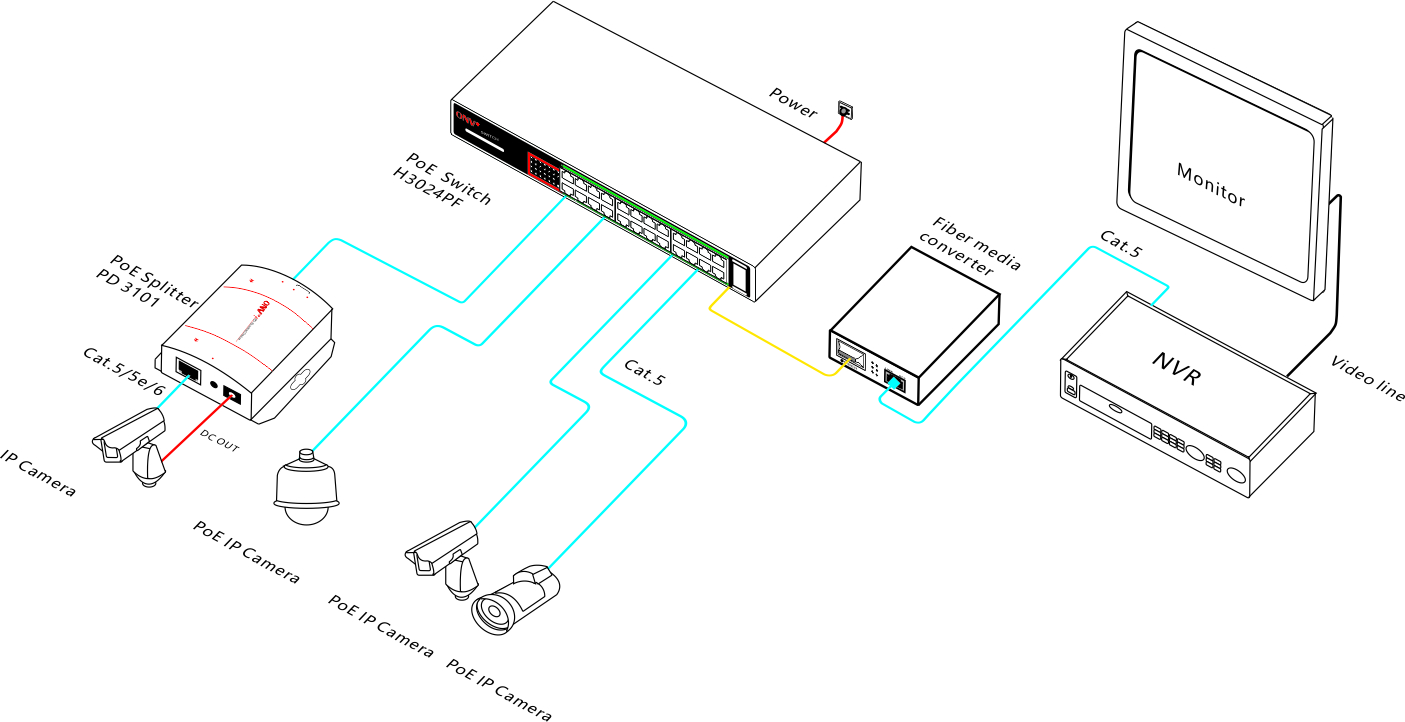

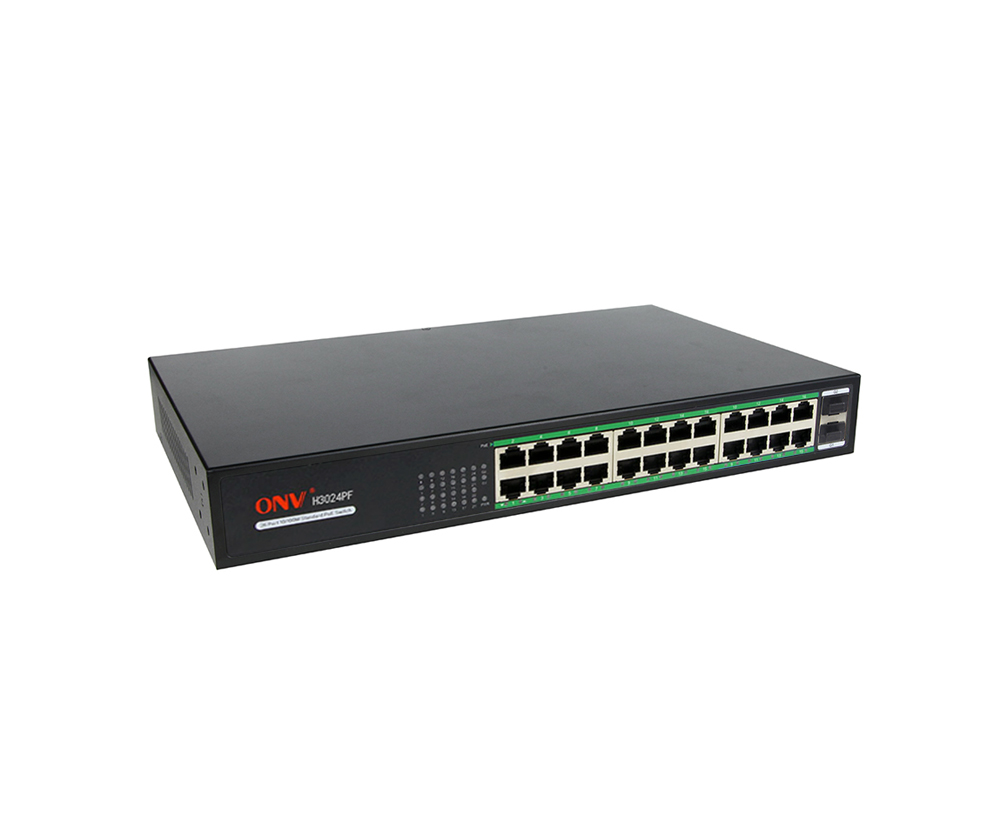

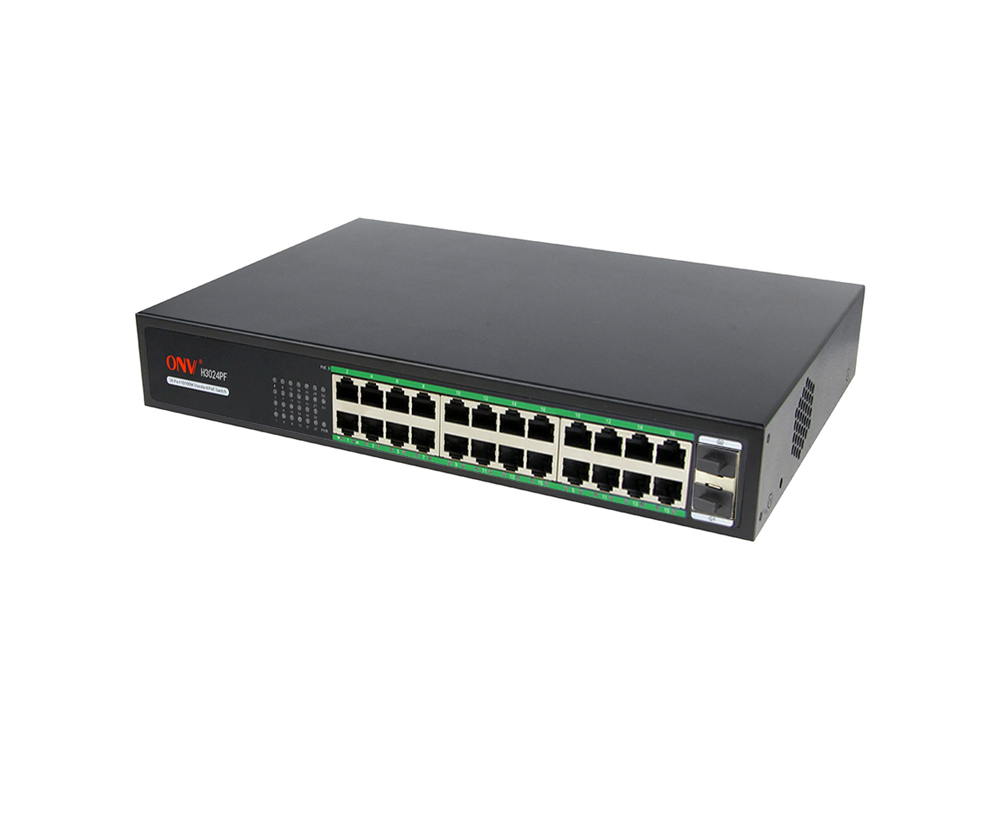

The ONV-H3024PF series is an unmanaged PoE switch independently developed by ONV, it has 24*10/100/1000M PoE ports and 2*1000M uplink SFP ports. Port 1-24 can support IEEE 802.3af/at standard PoE power supply, single port PoE power up to 30W, and the maximum POE output power is 250W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. through network cable to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, factory quarters and small and medium-sized enterprises to form an economy. Efficient network.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Full Gigabit port
◇ Supports the combination of RJ45 ports and Gigabit SFP ports to facilitate flexible networking and meet the networking requirements of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Intelligent PoE power supply
◇ 24*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
◇ CCC,CE, FCC, RoHS.

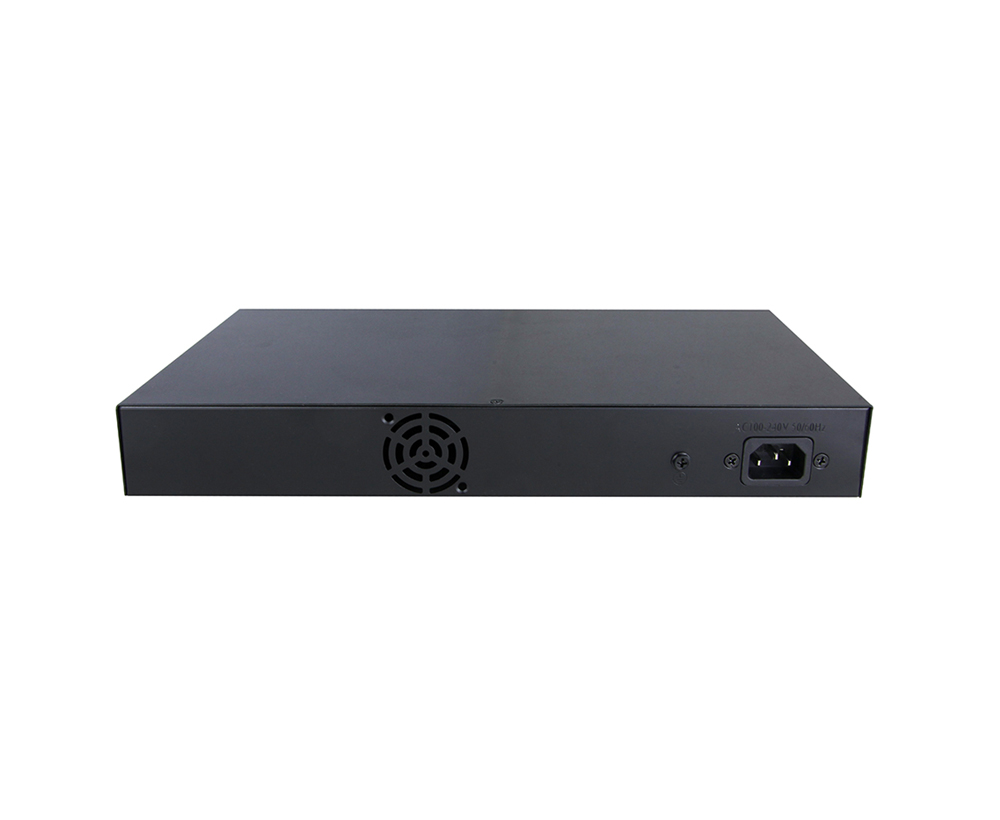

◇ Low power consumption, galvanized steel casing, The fan active cooling.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.

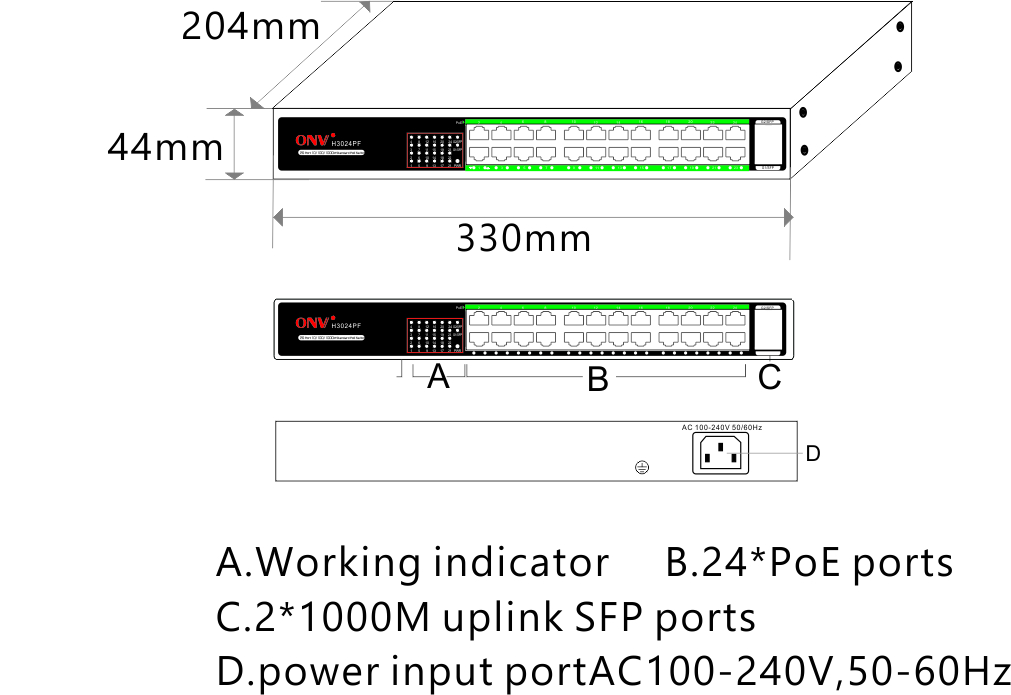

DIMENSION
Model | ONV-H3016PF | ONV-H3024PF |
Interface Characteristics | ||
Fixed Port | 16*10/100/1000Base-T PoE ports (Data/Power) 2*1000Base-X uplink SFP ports (Data) | 24*10/100/1000Base-T PoE ports (Data/Power) 2*1000Base-X uplink SFP ports (Data) |
Ethernet Port | Port 1-16 support 10/100/1000Base–T auto-sensing, full/half duplex MDI/MDI-X self-adaption | Port 1-24 support 10/100/1000Base–T auto-sensing, full/half duplex MDI/MDI-X self-adaption |
Twisted Pair Transmission | 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
SFP Slot Port | Gigabit SFP optical fiber interface, default not matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
Optical Cable/ Distance | Multi mode: 850nm / 0 ~ 550M, single mode: 1310nm / 0 ~ 40KM, 1550nm / 0 ~ 120KM. | |
Chip Parameter | ||
Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 52Gbps (Non-blocking) | |
Forwarding Rate@64byte | 26.78Mpps | 38.69Mpps |
MAC | 8K | |
Buffer Memory | 4M | |
Jumbo Frame | 10K | |
LED Indicator | Power: PWR (green), network: Link (green),PoE: PoE (green), fiber: G1/G2(green), POE :PoE(green) | |
PoE & Power | ||
PoE Port | Port 1 to 16 IEEE802.3af/at @ POE | Port 1 to 24 IEEE802.3af/at @ POE |
Power Supply Pin | Defaul 1/2 (+), 3/6 (-) | |
Max Power Per Port | 30W; IEEE802.3af/at | |
Total PWR / Input Voltage | 250W /(AC100-240V) | |
Power Consumption | Standby<15W,Full Load<240W | Standby<20W, Full Load<250W |
Power Supply | Built-in power supply, AC 100~240V 50-60Hz 4.1A | |
Physical Parameter | ||
Operation TEMP / Humidity | –20~+55°C, 5%~90% RH Non condensing | |
Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing | |
Dimension (L*W*H) | 270*181*44.5mm | 330*204*44mm |
Net /Gross Weight | <1.7kg / <2.2kg | <3.0kg / <3.5kg |
Installation | Desktop, wall mounted,19 inch 1U cabinet | |
Certification & Warranty | ||
Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 | |
Certification | CCC,CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS | |
Warranty | 1 year, lifelong maintenance. | |
Model | Description |
ONV-H3016PF | Unmanaged PoE switch with 16* 10/100/1000M PoE ports and 2* 1000M uplink SFP ports. Port 1-16 can support IEEE802.3af/at PoE Standard. Built-in 250W power supply. Support 19-inch cabinet installation. |
ONV-H3024PF | Unmanaged PoE switch with 24* 10/100/1000M PoE ports and 2* 1000M uplink SFP ports. Port 1-24 can support IEEE802.3af/at PoE Standard. Built-in 250W power supply. Support 19-inch cabinet installation. |
PACKING LIST | CONTENT | QTY | UNIT |
26-port full gigabit PoE switch | 1 | SET | |
AC Power Cable | 1 | PC | |
Mounting Kits | 1 | SET | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
