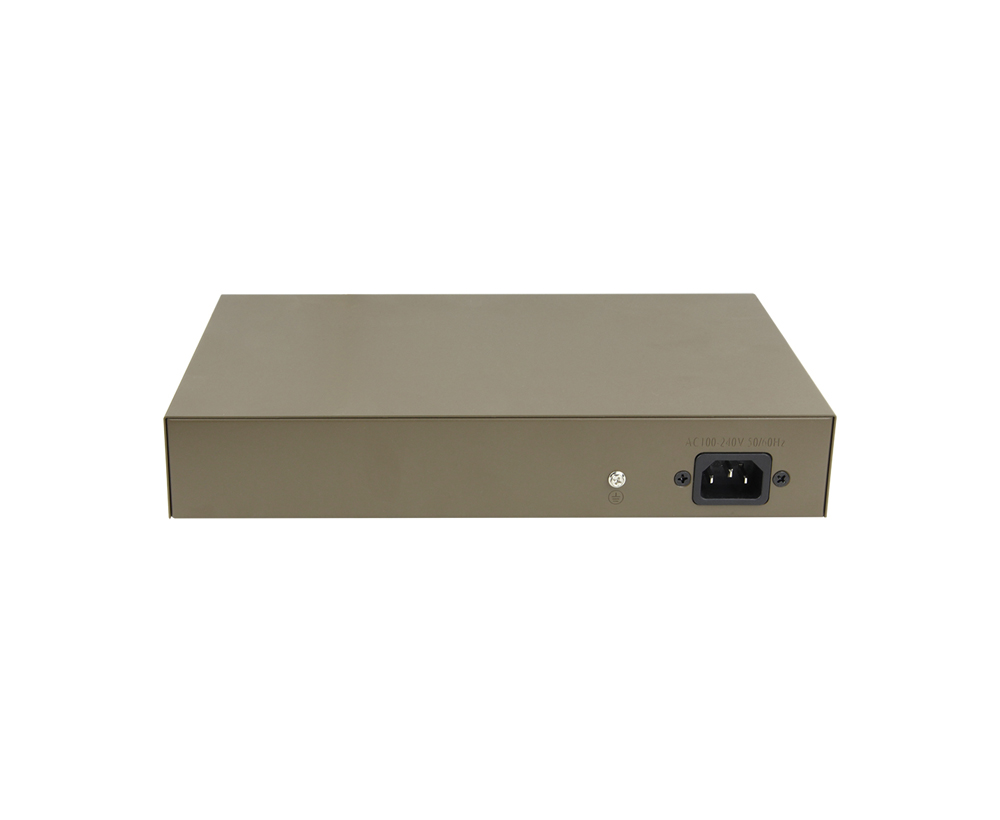

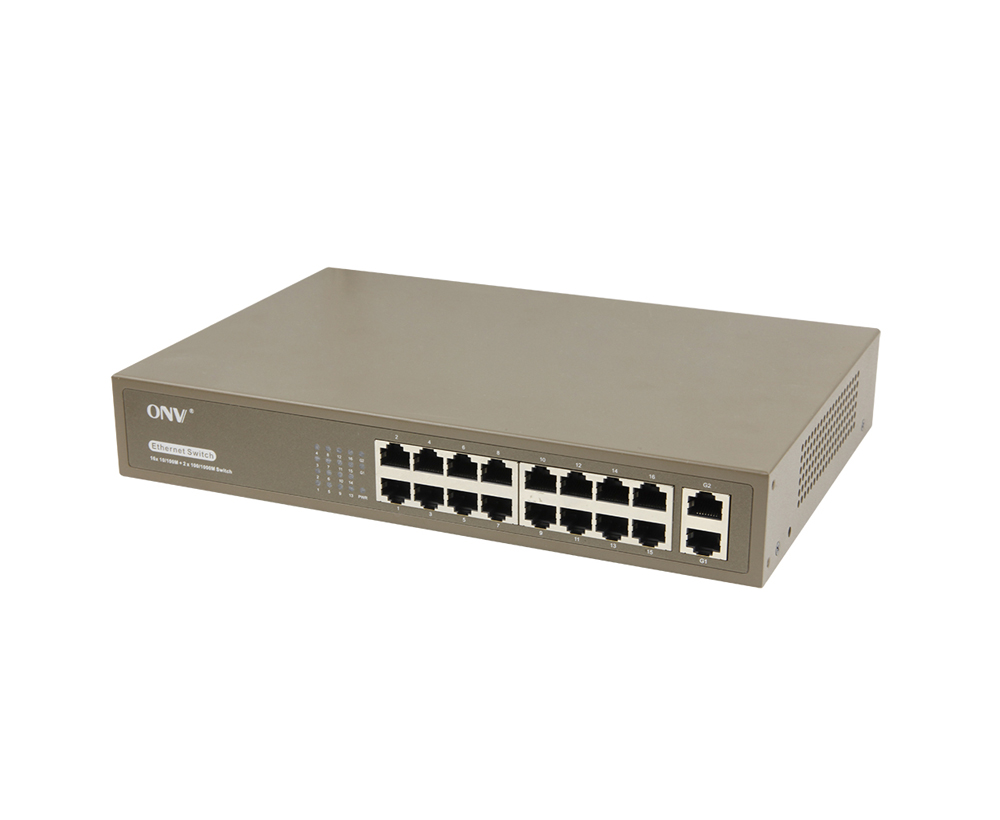

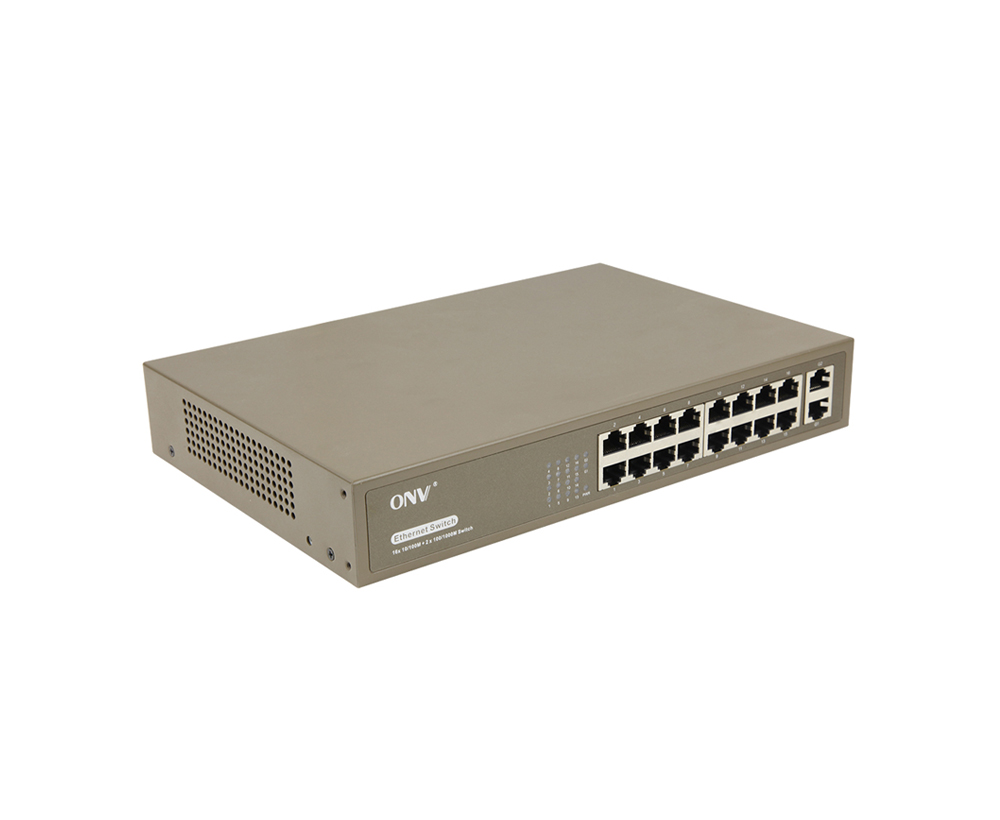

ONV-H1218

OVERVIEW

ONV-H1218 is designed as CCTV surveillance Network Switch for simple network environment including home, school dormitory, office and small scale surveillance system etc. Large-capacity cache chip design and full port support wire-speed forwarding mode ensure 7*24 hours stable and smooth for video and data transmission. 16*10/100M auto-sensing RJ45 port. Full duplex rate up to 200M. Auto-identify parallel lines and cross lines. Plug and play, expand high-speed network in a fast way.

A housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability, heat dissipation performance, ensuring stable switch operation, a long service life, and more reliable outdoor security surveillance. Support desktop/ wall mounted installation way. Fashionable design. Can be connected with any computer, printer, smart TV, NAS, wireless AP, NVR and IP Camera etc.

FEATURE

u 16*10/100Mbps auto-sensing RJ45 ports + 2*10/100/1000M RJ45 ports, auto MDI/MDIX.

u IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE802.3z.

u 18*Link/Act LEDs, showing the connection status in real time.

u Support 10/100M auto-negotiation for full duplex and half duplex.

u Store and forwarding mode

u Support MAC self learning and updating

u Support connection with IP Cameras and wireless AP.

u Plug and play, no need more configuration.

u Support desktop/wall mounted installation.

u Low power consumption design. Energy-saving and green. Max total power consumption < 18W.

TARGET INDUSTRIES

◆ HD monitor transmission and power supply
◆ Wireless AP layout transmission and power supply
◆ Ethernet telephone transmission , intelligent house and home system
◆ Intelligent transportation supervisory system(ITS)
◆ High-speed Way supervisory/Tele-Communication System
◆ Security protection system, TV medical treatment
◆ Long-distance Muti-media Schooling, Campus monitoring
◆ Long-distance broadcast television transmission system
◆ High-building Security Protection, Military Tele-Com projects
