ONV-H1016

OVERVIEW

ONV-H1016 is designed as CCTV surveillance Network Switch for simple network environment including home, school dormitory, office and small scale surveillance system etc. Large-capacity cache chip design and full port support wire-speed forwarding mode ensure 7*24 hours stable and smooth for video and data transmission. 16*10/100M auto-sensing RJ45 port. Full duplex rate up to 200M. Auto-identify parallel lines and cross lines. Plug and play, expand high-speed network in a fast way.

A housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability, heat dissipation performance, ensuring stable switch operation, a long service life, and more reliable outdoor security surveillance. Support desktop/ wall mounted installation way. Mini size and fashionable design. Can be connected with any computer, printer, smart TV, NAS, wireless AP, NVR and IP Camera etc.

FEATURE

• 16* 10/100Mbps auto-sensing RJ45 ports, auto MDI/MDIX.
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x.
• 16*Link/Act LEDs, showing the connection status in real time.
• Support 10/100M auto-negotiation for full duplex and half duplex.
• Store and forwarding mode
• Support MAC self learning and updating
• Support connection with IP Cameras and wireless AP.
• Plug and play, no need more configuration.
• Support desktop/wall mounted installation.
• Low power consumption design. Energy-saving and green. Max total power consumption < 13W.

TARGET INDUSTRIES

• HD monitor transmission and power supply
• Wireless AP layout transmission and power supply
• Ethernet telephone transmission , intelligent house and home system
• Intelligent transportation supervisory system(ITS)
• High-speed Way supervisory/Tele-Communication System
• Security protection system, TV medical treatment
• Long-distance Muti-media Schooling, Campus monitoring
• Long-distance broadcast television transmission system
• High-building Security Protection, Military Tele-Com projects

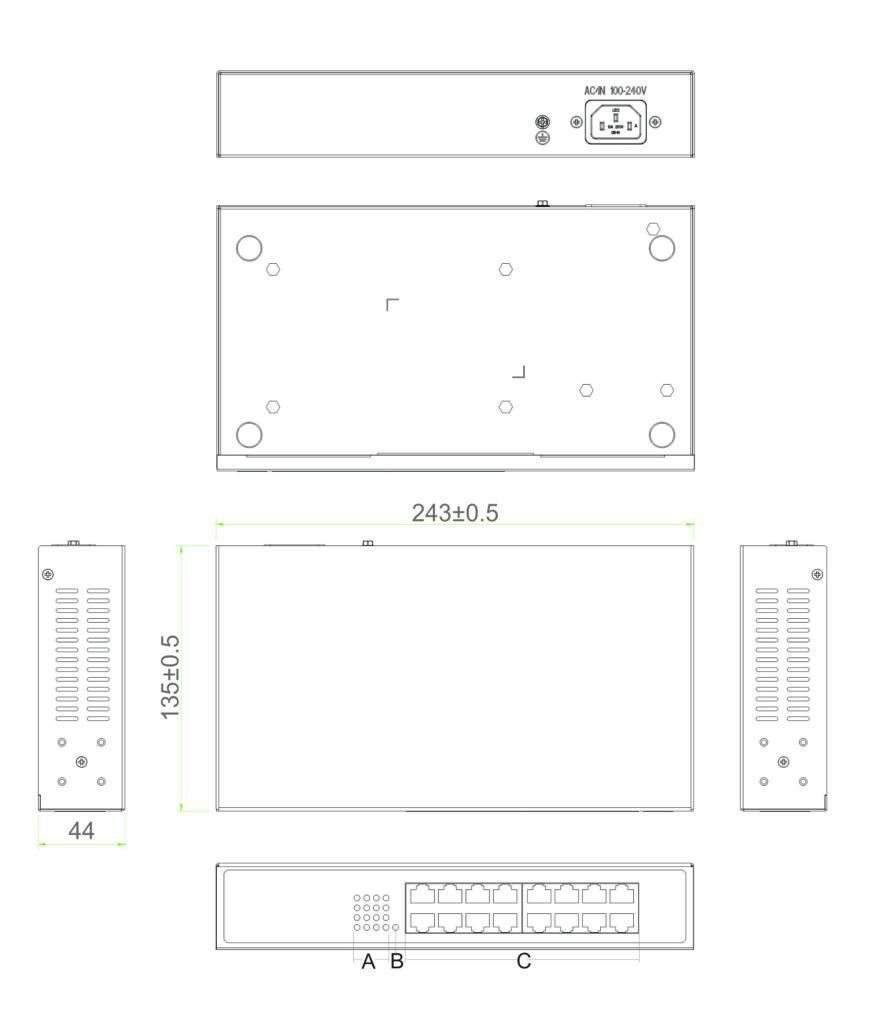

DIMENSION
