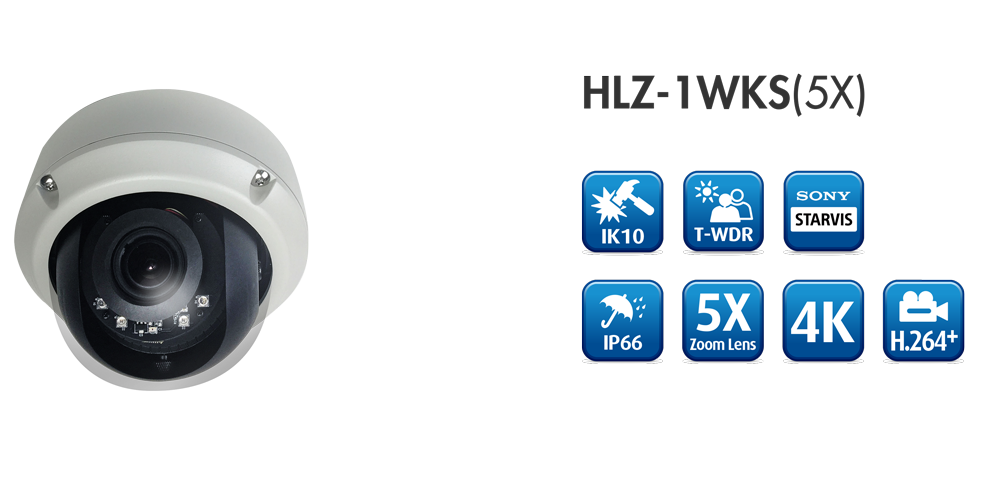

6.82MP Vandal Dome IP Camera
6.82MP, 5X Zoom, 40M IR
DIS, IP66, IP68, IK10
FEATURES
SPECIFICATION
DIMENSION
DOWNLOAD
FEATURES
6.82 Megapixel IR Vandal Dome IP Camera
H.264+/ H.264/ M-JPEG Compression
Support 2MP@60FPS / Advanced Smart Stream
ROI Function / 2-way Audio / DIS
Smart Focus System for Remote Focus Adjustment
Digital Noise Reduction
Power over Ethernet
Digital Wide Dynamic Range
Day & Night Manual Switch Time Control
IR LED Built-in 40M
IR Cut Filter Mechanism
Micro SD Card Backup (Optional)
IP66, IP68, IK10
Support iPhone/ Mac/ Android
SDK for Software Integration
Free Bundle 36 Ch Recording Software
SPECIFICATION
Product Name | H.264+ 6.82MP Motorized IR Vandal Dome |
| Model | HLZ-1WKS (5X) |
| Maximum Resolution | 3072×2160 (6.8MP) |
| Sensor | 1/2.9″ Sony Starvis CMOS Sensor |
| Lens | 2.7-13.5mm 5X Bulid-in Zoom Lens @ F1.4 |
| Sensitivity | Color: 0.01Lux (AGC ON), B/W: 0.005Lux (AGC ON) |
| FOV | 30° ~ 100° (H), 21° ~ 67° (V) |
| IR Distance | 4x High Power LEDs, 850nm, IR Distance 40M |
| Video Format | H.264+ / H.264 / MJPEG |
| Video Resolution | 3072×2160@30fps, 2592×1944@30fps, 2048×1536@30fps, 1600×1200@30fps, 1920×1080@30fps, 1920×1080@60fps, 1280×960@30fps, 1280×720@30fps, 640×480@30fps, 640×360@30fps |
| Maximum Streams | 4 Simultaneous Streams |
| Audio Format | G.711 (64K) / G.726 (32K, 24K) |
| Audio | Input: $3.5mm stereo jack, Output: Ø3.5mm stereo jack, Support 2 way audio |
| Interface | DIX 1, DO x1, Micro SD card slot (Optional), 3 Axis management bracket, BNC output, RJ45 |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QOS/DSCP, COS, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Google Drive, Dropbox, ONVIF Profile S |
| Power Comsumption | DC 12V Max: 7.26W, POE Max: 10.56W |
| Intelligent Feature | ROI, Advanced Smart Stream, Motion Detection, Privacy Mask, Defog, Lens Distortion Correction (LDC), Corridor Mode, Tampering Detection, Sound Detection, 3D DNR, Smart IR, P2P (Optional), Seamless Recording, Off-site and Cloud Backup, Automatic Network Replenishment (ANR), Push Video Notification |
| Dimensions | Ø137 x H102 (mm) |
| Weight | 988g |
| Working Temparature | -20° C ~ 60° C / -4° F~ 140° F |
