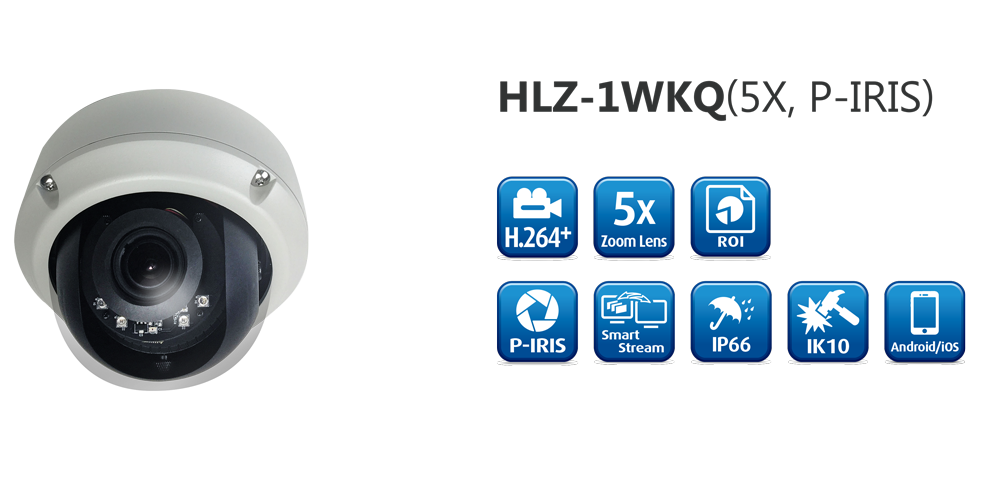

4MP Vandal Dome IP Camera
4MP, 5X Zoom, 20M IR
IP66, IP68, IK10, P-IRIS
|
| Product Name | H.264+ 4MP P-IRIS Motorized IR Vandal Dome |
| Model | HLZ-1WKQ (5X, P-IRIS) |
| Maximum Resolution | 2592×1520 (4MP) |
| Sensor | 1/3″ Megapixel CMOS Sensor |
| Lens | 2.7-13.5mm 5x Bulid-in P-IRIS Zoom Lens @ F1.4 |
| Sensitivity | Color: 0.08Lux (AGC ON), B/W: 0.03 Lux (AGC ON) |
| FOV | 31.05° ~ 104.7° (H), 17.61° ~ 56.6° (V) |
| IR Distance | 4x High Power LEDs, 850nm, IR Distance 20M |
| Video Format | H.264+ / H.264 / MJPEG |
| Video Resolution | 2592×1520@25fps, 1920×1080@30fps, 1280×720@30fps, 640×360 @30fps |
| Maximum Streams | 4 Simultaneous Streams |
| Audio Format | G.711 (64K) / G.726 (32K, 24K) |
| Audio | Input: Ø3.5mm stereo jack, Output: Ø3.5mm stereo jack,Support 2 way audio |
| Interface | DIX 1, DO x1, Micro SD card slot (Optional), 3 Axis management bracket, BNC output, RJ45 |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP,SNTP, QoS/DSCP, COS, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP,SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Google Drive, Dropbox, ONVIF Profile S |
| Power Comsumption | DC 12V Max: 5.0W, PoE Max: 6.3W |
| Intelligent Feature | ROI, Smart Stream, Motion Detection, Privacy Mask, Defog, Lens Distortion Correction (LDC), Corridor Mode, Tampering Detection, Sound Detection, 3D DNR, Smart IR, P2P (Optional), Seamless Recording, Off-site and Cloud Backup, Automatic Network Replenishment (ANR), Push Video Notification |
| Dimensions | Ø137 x H102 (mm) |
| Weight | 988g |
| Working Temparature | -20° C ~ 60° C / -4°F~ 140° F |
