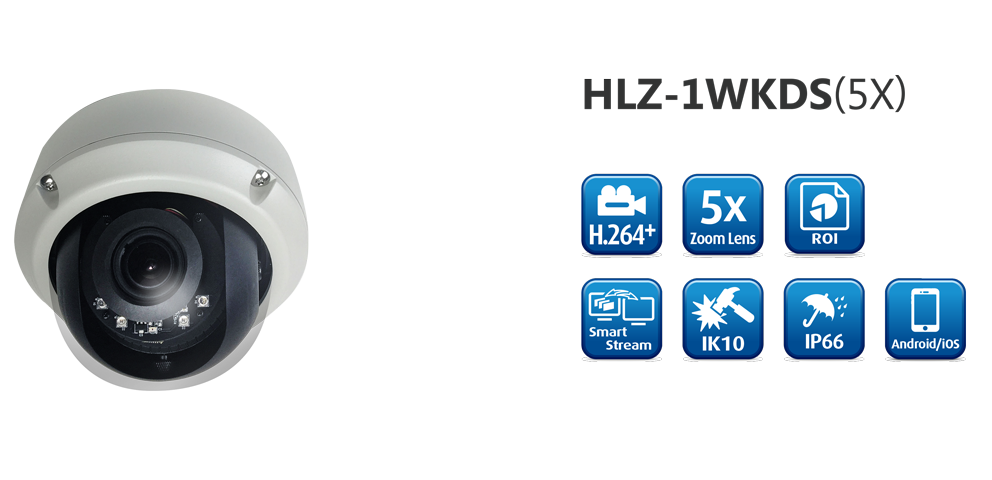

2MP Vandal Dome IP Camera
2MP, 5X Zoom, 40M IR
IP66, IP68, IK10
FEATURES
SPECIFICATION
DIMENSION
DOWNLOAD
FEATURES
SPECIFICATION
| Product Name | H.264+ 2MP Motorized IR Vandal Dome |
| Model | HLZ-1WKDS(5X) |
| Maximum Resolution | 1920×1080 (2MP) |
| Sensor | 1/2.8″ Sony Exmor-R CMOS Sensor |
| Lens | 2.7-13.5mm 5X Built-in Zoom Lens @ F1.4 |
| Sensitivity | Color: 0.005Lux (AGC ON), B/W: 0.001Lux (AGC ON) |
| FOV | 33.06° ~103.03° (H), 18.42° ~53.71° (V) |
| IR Distance | 4x High Power LEDs, 850nm, IR Distance 40M |
| Video Format | H.264° / H.264 / MJPEG |
| Video Resolution | 1920×1080@30fps, 1280×720@30fps, 640×360@30fps |
| Maximum Streams | 4 Simultaneous Streams |
| Audio Format | G.711 (64K) / G.726 (32K, 24K) |
| Audio | Input: @3.5mm stereo jack, Output: @3.5mm stereo jack, Support 2 way audio |
| Interface | DIx 1, DOx1, Micro SD card slot (Optional), 3 Axis management bracket, BNC output, RJ45 |
| Network Protocol | IPv6, 1 Pv4, HTTP HTTPS, SNMP SSL, TLS, DNS, ICMP IGMP. ARP SNTP QoS/DSCP, COS, IEEE 802.1X, RTSP/RTP/RTCP TCP/IP. UDP SMTP. FTP PPPoE, DHCP DDNS, NTP UPnP SAMBA, Bonjour, Google Drive, Dropbox, ONVIF Profile S |
| Power Comsumption | DC 12V Max: 5.5W, PoE Max: 6.5W |
| Intelligent Feature | ROI, Advanced Smart Stream, Motion Detection, Privacy Mask, Defog, Lens Distortion Correction (LDC), Corridor Mode, Tampering Detection, Sound Detection, 3D DNR, Smart IR, P2P (Optional),Seamless Recording, Off-site and Cloud Backup, Automatic Network Replenishment (ANR), Push Video Notification |
| Dimensions | 137 x H102 (mm) |
| Weight | 988g |
| Working Temparature | -20°C ~ 60°C / -4°F ~ 140° F |
