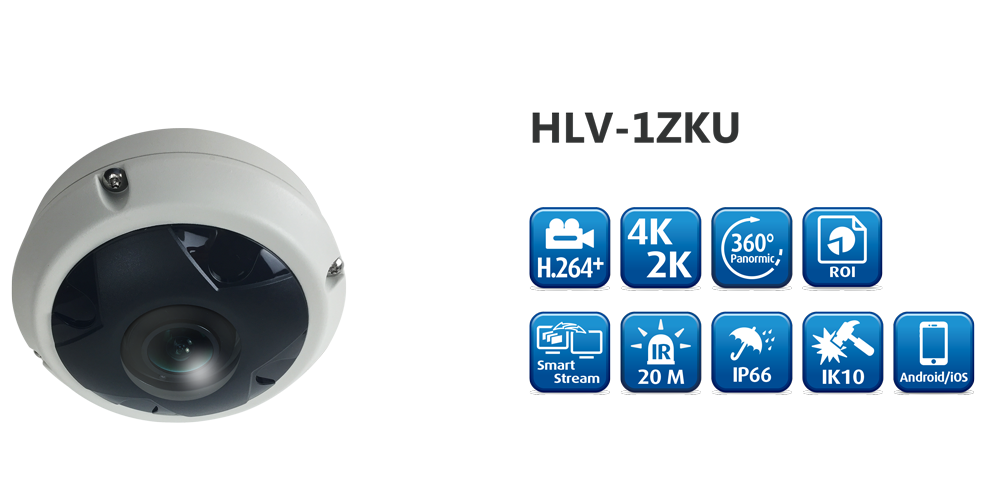

Fisheye Vandal Dome IP Camera
8MP, 1.08mm, 20M IR, T-WDR
IP68, IK10, Panoramic e-PTZ
FEATURES
SPECIFICATION
DIMENSION
DOWNLOAD
FEATURES
SPECIFICATION
| Product Name | H.264+ 4K 360° Hardware Dewaping |
| Model | HLV-1ZKU |
| Maximum Resolution | 3840×2160 (4K2K) |
| Sensor | 1/2.5″ Sony True WDR and Starvis CMOS Sensor |
| Lens | 1.08 mm @ F2.0 |
| Sensitivity | Color: 0.1 Lux (AGC ON), B/W: 0.05Lux (AGC ON) |
| FOV | 360° Fisheye and Panoramic Views |
| IR Distance | 4x High Power LEDs, 850nm, IR Distance 20M. |
| Video Format | H.264+ / H.264 / MJPEG |
| Video Resolution | 3840×2160@30fps, 2880×2160@30fps,1920×1080 @30fps, 1280×720@30fps, 640×360 @30fps |
| Maximum Streams | 4 Simultaneous Streams, Dual Main Streams |
| Audio Format | G.711 (64K) / G.726 (32K, 24K) |
| Audio | Input: Ø3.5mm stereo jack, Output: Ø3.5mm stereo jack, Support 2 way audio |
| Interface | DIX1, DOx1, Micro SD card slot (Optional) BNC output, RJ45 |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, COS, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, Network Protocol,PPPOE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Google Drive, Dropbox, ONVIF Profile S |
| Power Comsumption | DC 12V Max: 6.07W, POE Max: 7.41W |
| Intelligent Feature | ROI, Advanced Smart Stream, Motion Detection, Privacy Mask, Defog, Lens Distortion Correction(LDC), Tampering Detection, Sound Detection, 3D DNR, Smart IR, P2P(Optional), Seamless Recording, Off-site and Cloud Backup, Automatic Network Replenishment(ANR), Push Video Notification, Panoramic ePTZ |
| Dimensions | Ø137 x H58 (mm) |
| Weight | 650g |
| Working Temparature | -20° C~60° C / -4°F~140° F. |
