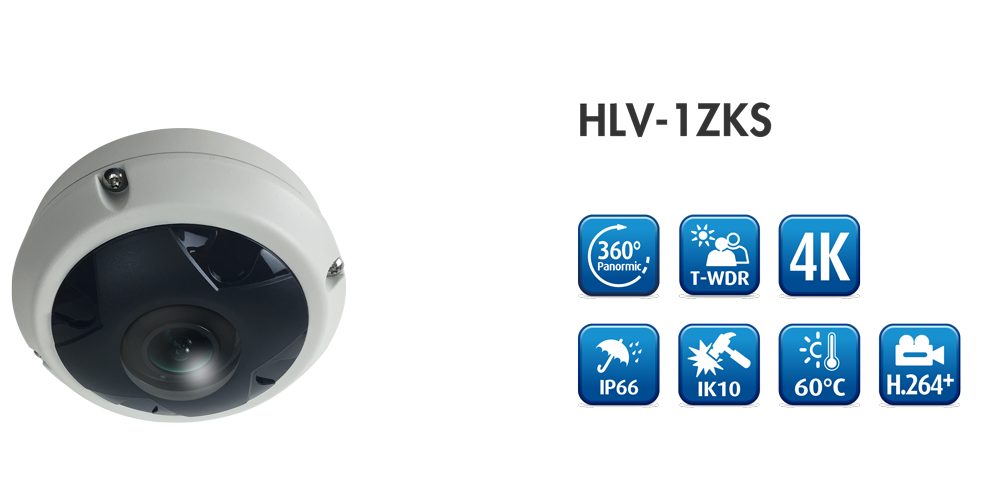

Fisheye Vandal Dome IP Camera
6MP, 1.1mm, 20M IR, T-WDR
IP68, IK10, Panoramic e-PTZ
|
Product Name | H.264+ 6.8MP 360° Hardware Dewaping |
Model | HLV-1ZKS |
Maximum Resolution | 3072×2160 (6.8MP) |
Sensor | 1/2.9″ Sony Starvis CMOS Sensor |
Lens | 1.1mm @ F2.0 |
Sensitivity | Color: 0.1 Lux (AGC ON), B/W: 0.05Lux (AGC ON) |
FOV | 360° Fisheye and Panoramic Views |
IR Distance | 4x High Power LEDs, 850nm, IR Distance 20M. |
Video Format | H.264+ / H.264 / MJPEG |
Video Resolution | 2880×2160@25fps,1920×1080@30fps,1280×720@30fps, 640×480@30fps |
Maximum Streams | 4 Simultaneous Streams, Dual Main Streams |
Audio Format | G.711 (64K) / G.726 (32K, 24K) |
Audio | Input: $3.5mm stereo jack, Output: Ø3.5mm stereo jack,Support 2 way audio |
Interface | DIX1, DOx1, Micro SD card slot (Optional) BNC output, RJ45 |
Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP,QoS/DSCP, COS, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP,PPPOE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Google Drive, Dropbox, ONVIF Profile S |
Power Comsumption | DC 12V Max: 5.72W, POE Max: 6.84W |
Intelligent Feature | ROI, Advanced Smart Stream, Motion Detection, Privacy Mask, Defog, Lens Distortion Correction(LDC), Tampering Detection, Sound Detection, 3D DNR, Smart IR, P2P(Optional), Seamless Recording, Off-site and Cloud Backup, Automatic Network Replenishment(ANR), Push Video Notification, Panoramic ePTZ |
Dimensions | Ø137 x H58 (mm) |
Weight | 650g |
Working Temparature | -20° C~60° C / -4°F~140° F. |
