Product Name

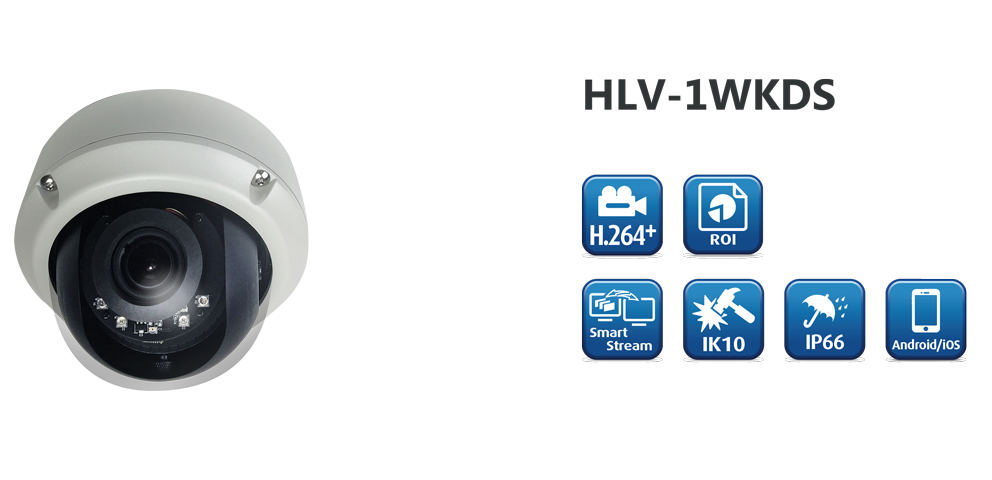

H.264+ 2MP Motorized IR Vandal Dome

Model

HLV-1WKDS

Maximum Resolution

1920×1080 (2MP)

Sensor

1/2.8″ Sony Exmor-R CMOS Sensor

 Lens

2.8-12mm Varifocal Lens @ F1.4

Sensitivity

Color: 0.005 Lux (AGC ON), B/W: 0.001Lux (AGC ON)

FOV

34° ~ 102° (H), 19° ~ 55° (V)

IR Distance

4x High Power LEDs, 850nm, IR Distance 40M

Video Format

H.264+ / H.264 / MJPEG

Video Resolution

1920×1080@30fps, 1280×720@30fps, 640×480@30fps, 320×240@30fps

Maximum Streams

4 Simultaneous Streams

Audio Format

G.711 (64K) / G.726 (32K, 24K)

Audio

Input: Ø3.5mm stereo jack, Output: Ø3.5mm stereo jack, Support 2 way audio

Interface

DIX 1, DO x1, Micro SD card slot (Optional), 3 Axis management bracket, BNC output, RJ45

Network Protocol

IPv6, I Pv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, COS, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Google Drive, Dropbox, ONVIF Profile S

Power Comsumption

DC 12V Max: 5.0W, POE Max: 6.3W

Intelligent Feature

ROI, Advanced Smart Stream, Motion Detection, Privacy Mask, Defog, Lens Distortion Correction (LDC), Corridor Mode, TamperingDetection, Sound Detection, 3D DNR, Smart IR, P2P (Optional), Seamless Recording, Off-site and Cloud Backup, Automatic Network Replenishment (ANR), Push Video Notification

Dimensions

Ø137 x H102 (mm)

Weight

988g

Working Temparature

-20° C ~ 60°C / -4° F~ 140° F
