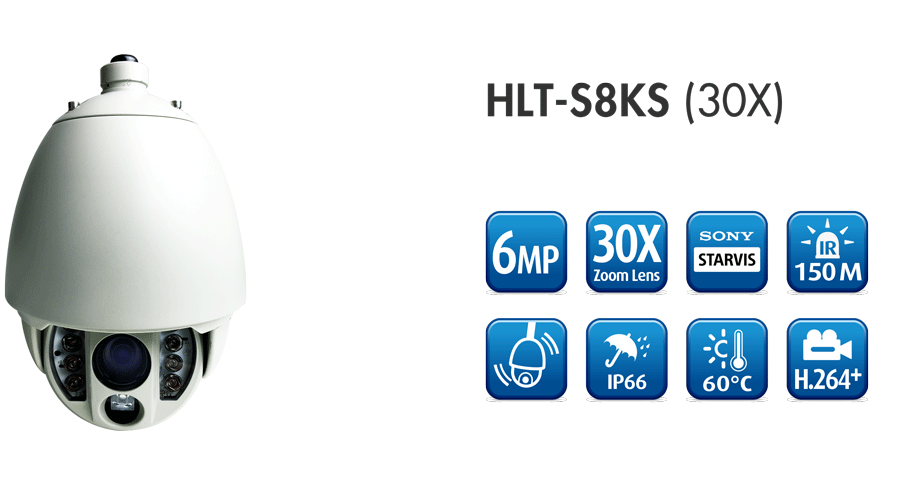

Product Name

30X H.264+ 6.8MP IR Starvis

Model

HLT-S8KS (30X)

Maximum Resolution

3072×2160 (6.8MP)

Sensor

1/2.9″ Sony Starvis CMOS Sensor

 Lens

4.7~141 mm (30X Optical Zoom, Auto Focus)

Sensitivity

Color: 0.01Lux (AGC ON), B/W: 0.005Lux (AGC ON)

FOV

2.66° ~46.9° (H), 1.58° ~26.5° (V)

IR Distance

9 x High Power LEDs, 850nm, IR Distance 150M

Video Format

H.264+ / H.264 / MJPEG

Video Resolution

3072×2160@30fps, 2592×1944@30fps, 2048×1536@30fps, 1920×1080@60fps, 1920×1080 @30fps, 1600×1200@30fps, 1280×960 @30fps, 1280×720@30fps, 640×480 @30fps, 640×360 @30fps

Maximum Streams

4 Simultaneous Streams

Audio Format

G.711 (64K) / G.726 (32K, 24K)

Audio

Input: Ø3.5 stereo jack line in, Output: Ø3.5 stereo jack, Support 2 way audio

Pan / Tilt Range

360° Endless, 180° (90° Auto Flip)

Preset (Patrol) Speed

200° /sec

Preset Accuracy

<0.05°

Preset Location

256

Smart PTZ

Patrol, Cruise, Auto recovery, Auto pan, 32X Digital Zoom, Auto tracking (Optional)

Interface

DIx4, DOx1, Micro SD card built-in (Optional), RJ45

Network Protocol

Pv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, COS, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPOE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Google Drive, Dropbox, ONVIF Profile S

Power Consumption

DC 56V Max: 38.2W, POE Max: 38W

Intelligent Feature

ROI, Advanced Smart Stream, Motion Detection, 24 3D Privacy Masks, Defog, Lens Distortion Correction (LDC), Corridor Mode, Tampering Detection, Sound Detection, 3D DNR, Smart IR, P2P (Optional), Seamless Recording, Off-site and Cloud Backup, Automatic Network Replenishment (ANR), Push Video Notification, Digital Image Stabilization (DIS)

Dimensions

Ø227.1 x H346.2 (mm)

Weight

5.3 kg

Working Temperature

-20° C~60° C / -4° F~140° F
