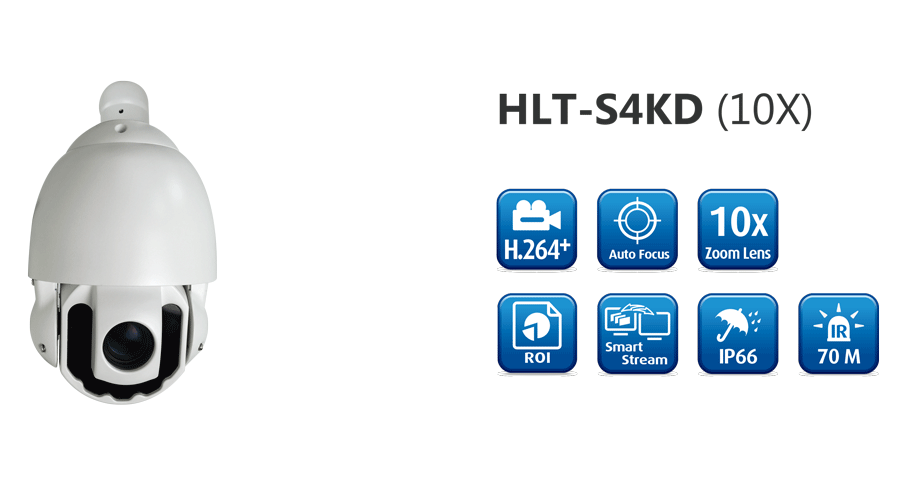

10X IP Speed Dome
2MP, 10X Zoom, 100M IR, T-WDR, IP66
FEATURES
SPECIFICATION
DIMENSION
DOWNLOAD
FEATURES
SPECIFICATION
| Product Name | 10X H.264+ 2MP Mini IR IP Speed Dome |
| Model | HLT-S4KD (10X) |
| Maximum Resolution | 1920×1080 (2MP) |
| Sensor | 1/2.8″ Sony True WDR Starvis CMOS Sensor |
| Lens | 5~50mm Starvis CMOS Sensor |
| Sensitivity | Color: 0.005Lux (AGC ON), B/W: 0.001Lux (AGC ON) |
| FOV | 3.7° ~ 57.5° (H), 2° ~ 31.9° (V) |
| IR Distance | 6 x High Power LEDs, 850nm, IR Distance 100M |
| Video Format | H.264+ / H.264 / MJPEG |
| Video Resolution | 1920×1080@30fps, 1280×720@30fps, 640×480@30fps, 320×240 @30fps |
| Maximum Streams | 4 Simultaneous Streams |
| Pan / Tilt Range | 360° Endless / 180° (90° Auto Flip) |
| Preset (Patrol) Speed | 200° /sec |
| Preset Accuracy | <0.05° |
| Preset Location | 256 |
| Smart PTZ | Patrol, Cruise, Auto Recovery, Auto Pan, 32X Digital Zoom |
| Interface | Micro SD card built-in (Optional), RJ45 |
| Network Protocol | Pv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Google Drive, Dropbox, ONVIF Profile S |
| Power Consumption | DC 12V Max: 10.3W, POE Max: 12.3W |
| Intelligent Feature | ROI, Smart Stream, Motion Detection, 3D Privacy Mask, Defog, Lens Distortion Correction (LDC), Corridor Mode, Tampering Detection, Sound Detection, 3D DNR, Smart IR, P2P (Optional), Seamless Recording, Off-site and Cloud Backup, Automatic Network Replenishment (ANR), Push Video, Notification |
| Dimensions | Ø135 x H198 (mm) |
| Weight | 1.8 kg |
| Working Temperature | -20° C~60° C / -4° F~140° F |
