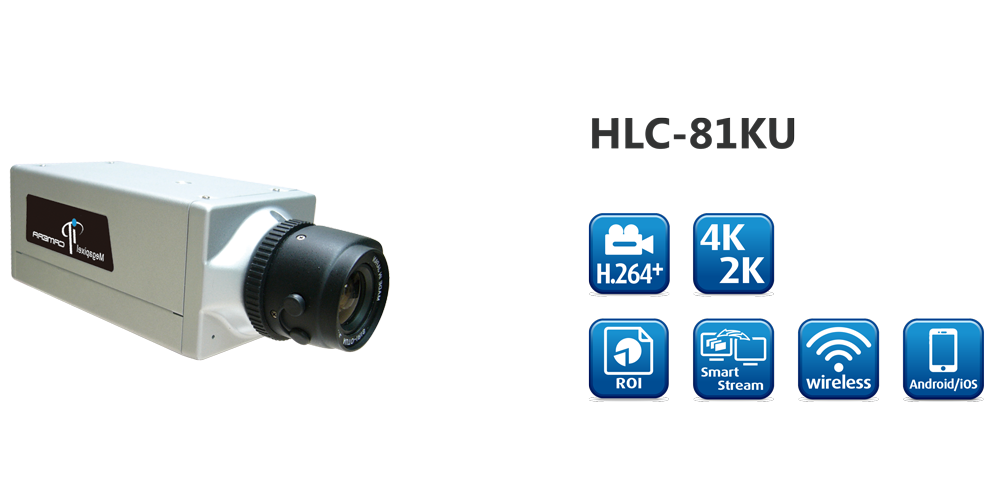

8MP Box IP Camera
8MP, CS Mount, T-WDR
FEATURES
SPECIFICATION
DIMENSION
DOWNLOAD
FEATURES
SPECIFICATION
| Product Name | H.264+ 8MP Box IP Camera |
| Model | HLC-81KU |
| Maximum Resolution | 3840×2160 (8MP) |
| Sensor | 1/2.5″ Sony Starvis CMOS Sensor |
| Lens | CS Mount |
| Sensitivity | Color: 0.01 Lux (AGC ON), B/W: 0.005 Lux (AGC ON) |
| ICR | IR cut Filter Mechanism |
| I/O | 1 DI/1 DO |
| Video Format | H.264+ / H.264 / MJPEG |
| Video Resolution | 3840×2160@30fps, 2592×1520@30fps, 1920×1080@30fps, 1280×720@30fps, 640×360 @30fps |
| Maximum Streams | 4 Simultaneous Streams |
| Audio Format | G.711 (64K) / G.726 (32K, 24K) |
| Audio | Input: Microphone Built-in & Ø3.5 stereo jack(auto switch),Output: Ø3.5mm phone jack, Support 2 way audio |
| Interface | DIX1, DO x 1, SD card slot(Optional), Wireless(Optional),BNC output, RS-485, RJ45 |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QOS/DSCP, COS, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Google drive, Drop box, Onvif profile S |
| Power Comsumption | DC 12V: 7.5W, POE Max: 8.5W |
| Intelligent Feature | ROI, Smart Stream, Advanced Smart Stream, Motion Detection,Privacy Mask, Anti Fog, Tampering Detection, Corridor Mode, PushVideo, P2P(Optional) |
| Dimensions | W65 x H58 x L132 (mm) (without lens) |
| Weight | 450g (without lens) |
| Working Temparature | -20°C~50° C / -4° F~ 122° F |
