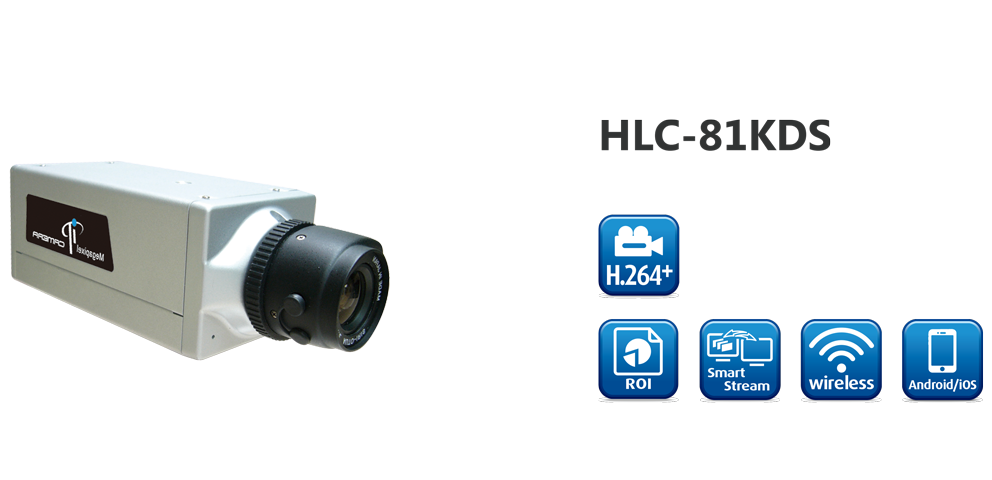

Traffic Box IP Camera
2MP, CS Mount, 60FPS
Super T-WDR, DIS, LPR, -20℃~70℃
FEATURES
SPECIFICATION
DIMENSION
DOWNLOAD
FEATURES
SPECIFICATION
Product Name | H.264+ 2MP Box IP Camera |
| Model | HLC-81KDS |
| Maximum Resolution | 1920×1080 (2MP) |
| Sensor | 1/2.8″ Sony Exmor-R CMOS Sensor |
| Lens | CS Mount |
| Sensitivity | Color: 0.005Lux (AGC ON), B/W: 0.001Lux (AGC ON) |
| Support DC IRIS | Yes |
| ICR | IR cut Filter Mechanism |
| Video Format | H.264+ / H.264 / MJPEG |
| Video Resolution | 1920×1080@30fps, 1280×720@30fps, 640×360@30fps |
| Maximum Streams | Triple Streaming |
| Audio Format | G.711 (64K) / G.726 (32K, 24K) |
| Audio | Input: Microphone Built-in & Ø3.5 stereo jack(auto switch), Output: Ø3.5mm phone jack, Support 2 way audio |
| Interface | DIX1, DO x1, SD card slot(Optional), Wireless(Optional), BNC output, RS-485, RJ45 |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QOS/DSCP, COS, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Google drive, Drop box, Onvif profile S |
| Power Comsumption | DC 12V Max: 1.8W, POE Max: 2.9W |
| Intelligent Feature | ROI, Smart Stream, Advanced Smart Stream, Motion Detection, Privacy Mask, Anti Fog, Tampering Detection, Corridor Mode, Push Video, P2P(Optional) |
| Dimensions | W65 x H58 x L132 (mm) (without lens) |
| Weight | 450g (without lens) |
| Working Temparature | -20°C~70° C / -4° F~158° F |
