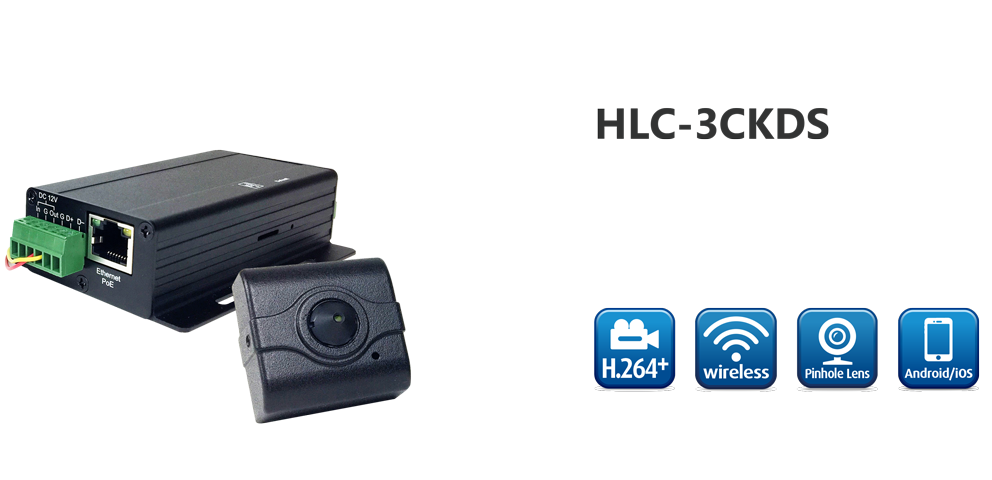

Split-Type IP Camera
2MP, 3.7mm, H.264+
FEATURES
SPECIFICATION
DIMENSION
DOWNLOAD
FEATURES
SPECIFICATION
| Product Name | H.264+ 2MP Split-Type IP Camera |
| Model | HLC-3CKDS |
| Maximum Resolution | 1920×1080 (2MP) |
| Sensor | 1/2.9″ True WDR CMOS Sensor |
| Lens | 3.7mm @ F2.4 |
| Sensitivity | Color: 0.01 Lux (AGC ON) |
| FOV | 75.14° (H), 38.05° (V) |
| IR Distance | N/A |
| Video Format | H.264+ / H.264 / MJPEG |
| Video Resolution | 1920×1080@30fps, 1280×720@30fps, 640×480@30fps, 320×240@30fps, 176×144@30fp |
| Maximum Streams | Triple Streaming |
| Audio Format | G.711 (64K) / G.726 (32K, 24K) |
| Audio | Input: External Line in, Output: External Audio out, Support 2 way audio |
| Interface | DIx1, DOx1, Micro SD card slot(Optional), WiFi(Optional), AHD analog video input, DC12V(Max.400mA) Power Output, RS485, RJ45 |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP SNTP, QoS/DSCP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour Google Drive, Dropbox, ONVIF Profile S |
| Power Comsumption | DC 12V Max: 4.2W, POE Max: 802.3af, 5.3W |
| Intelligent Feature | ROI, Smart Stream, Motion Detection, Privacy Mask, Corridor Mode, Defog, Lens Distortion Correction, Tampering Detection, Sound Detection, 3D DNR, Smart IR, P2P(Optional), Seamless Recording, Off-site and Cloud Backup, Automatic Network Replenishment(ANR), Push Video Notification |
| Dimensions | Sensor Unit: W36.2 x H36.1 (mm), Main Unit: W50 x H27x L97.9 (mm) |
| Weight | Sensor Unit: 200g, Main Unit: 380g |
| Working Temparature | -20° C~50° C/-4° F~122° F |
